Creating TCP dump files

You may be asked by a Dell Technical Support representative to create a TCP dump file. You need to specify the ports used to find traffic, and the amount of time during which packets will be captured.

The Console Program saves the TCP dump file to the current user’s home directory. For example, if you are logged in as setup, the directory /home/setup contains the file.


	IMPORTANT: A TCP dump file can contain confidential information, depending on the monitored application. Make sure you follow your organization’s security policies, and use appropriate safeguards when transferring TCP dump files to Dell Support.

To create a TCP dump file:

1

From the main menu, select Advanced Options.

2

Select More Advanced Options, then Collect TCP Dump File.

3

In the Enter Seconds screen, specify how long you want to capture information.

4

In the Verify Monitor Devices screen, specify the ports you want to monitor.

5

A status message monitors the process.

6

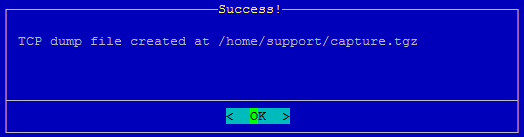

When the process ends, note the location of the file and select OK.

7

Use a SCP utility to copy the TCP dump file to a location on your computer. For help with this step, see Transferring support files from a physical appliance.

8

Send the file to your Dell Support representative.

Accessing the home directory

You can get to the home directory for the current user by accessing the appliance’s command-line shell.

To go to the home directory:

1

From the main menu, select Advanced Options.

2

Select Access Shell.

A console window opens, displaying a command prompt in the user’s home directory.

3

To leave the shell, enter Exit.

Creating Dell report archives on physical appliances

When troubleshooting hardware issues with a physical appliance, you may be asked by a Dell Technical Support representative to create a report archive. The Console Program saves the file to the current user’s home directory. For example, if you are logged in as setup, the directory /home/setup contains the file.

To create a report archive:

1

From the main menu, select Advanced Options.

2

Select More Advanced Options, then Dell System E-Support Tool.

A confirmation message appears.

3

To continue, select Yes.

The Dell System E-Support Tool runs and displays progress in a console window.

4

When the process ends, note the location of the file and select OK.

5

Use a SCP utility to copy the file to a location on your computer. For help with this step, see Transferring support files from a physical appliance.

6

Send the file to your Dell Support representative.

Backing up and restoring physical appliances

You use Dell NetVault™ to back up a Foglight Management Server hosted on a Foglight APM physical appliance. Dell NetVault backup and recovery products protect your enterprise data across multiple physical, virtual, and application environments to ensure optimal availability. NetVault Backup provides traditional data backup to disk and tape, as well as optional deduplication to maximize storage efficiency. After you register a Foglight APM appliance as a NetVault Backup client, you can back up the Management Server using a cold (system is offline) backup process. Hot backups (system is online) are no longer supported.


	NOTE: NetVault backs up the Foglight file system and Database Repository. Sniffers and Archivers (including the Archiver database) are not backed up.

The following table provides additional information about the backup process.

Table 13. Backup process details
	Backup
Purpose	Point-in-time backup
Foglight status	Shut down (offline)
File system backup	Yes
Database backup	Shutdown database
Backup process	Manual
Maintenance	None
Special requirements	None
Restore options	Originating appliance or a newly imaged appliance
