There are two supported methods for connecting to the DR Series system for logging in and performing the initial system configuration via the DR Series system CLI:

Local console connection: this is a local access connection made between a local workstation and the DR Series system (with one connection made to a USB keyboard port on the DR Series front/rear chassis, and a second connection made to the VGA monitor port on the DR Series system rear chassis. (See Figure 3 for locations in the DR Series System Rear Chassis Port Locations in the Local Console Connection.)
•
iDRAC connection: this is a remote access connection made between an integrated Dell Remote Access Controller (iDRAC) and the dedicated management port on the DR Series system rear chassis. (See Figure 3 for locations in the DR Series System Rear Chassis Port Locations in the Local Console Connection.)
Parent topic

Initializing the DR Series System

Initializing the DR Series System

Local Console Connection
iDRAC Connection
Logging in and Initializing the DR Series System

Before you can start using the DR Series system graphical user interface (GUI) for the first time, you must properly initialize the system. To initialize the DR Series system, complete the following:

1.
Log in to the DR Series system CLI by using a local console KVM (keyboard-video monitor) connection or an iDRAC connection. For more information, see Local Console Connection, or iDRAC Connection.
2.
Configure your system network settings using the Initial System Configuration Wizard. For more information, see Logging in and Initializing the DR Series System.

The Initial System Configuration Wizard lets you configure the following network settings to complete a first-time initialization of your system:

•
IP addressing mode
•
Subnet mask address
•
Default gateway address
•
DNS suffix address
•
Primary DNS server IP address
•
(Optional) Secondary DNS server IP address
•
Host name for system


Parent topic

Default IP Address and Subnet Mask Address

Default IP Address and Subnet Mask Address

This topic lists the following default address values that can be used for initialization of a DR Series system:

IP address—10.77.88.99
•
Subnet mask address—255.0.0.0

There are two key factors related to default address values and initializing a DR Series system:

•
Using the local console
•
Reserving MAC addresses using DHCP

If the network where the system will reside does not have or does not support DHCP, then the DR Series system can use the default IP (10.77.88.99) and subnet mask (255.0.0.0) addresses provided for initialization. If the network where the system will reside does not have or support reserving an IP address for the MAC address of the NICs in the DHCP server, then DHCP assigns an arbitrary IP address that is unknown (and which is unusable by you) during initialization.

As a result, if your network does not support DHCP or if you cannot reserve an IP address for the specific MAC addresses of the DHCP network interface cards (NICs), then Dell recommends that you use the local console connection method and the Initial System Configuration Wizard.


NOTE: After successfully initializing and configuring your system, you can modify the IP address to use either a static IP address or use dynamic IP addressing (DHCP), and modify the subnet mask address to be one that is supported by your network.

NOTE: If you have not run the Initial System Configuration Wizard on one (or more) DR Series system(s) being installed into the same network, there is a potential that the system (or systems) may come up with the same default IP address (10.77.88.99). The default IP address is not user-configurable and it can potentially result in becoming a duplicate IP address in the case of multiple systems.

Initialization issues could include when a network has had a network power outage, the DHCP server in the network is misconfigured, or if the Initial System Configuration Wizard has never been run.

If your network does not accept the default subnet mask address (255.0.0.0), you can establish a connection between the DR Series system and a laptop workstation. In this case, make sure that you connect using SSH, and use the default IP address to run the Initial System Configuration Wizard.

If you are using a known static IP address, you can skip running the Initial System Configuration Wizard, and directly configure the DR Series system using its user interface.

To configure the DR Series system, select System Configuration > Networking, and configure the network settings as desired. For more information, see Configuring Networking Settings.


NOTE: For details about logging in and using the Initial System Configuration Wizard, see Configuring Networking Settings.
Parent topic

Local Console Connection

Local Console Connection

To configure a local console connection, you must make the following two rear chassis cable connections:

VGA port and your video monitor
•
USB port and your keyboard

To make local console cable connections for the DR Series system appliance, complete the following:

1.
(DR4000 system) Locate the VGA monitor port and the USB ports on the back of your system. See Figure 3 for the VGA and USB port locations and complete steps 1 to 4. For the DR4100/DR6000 system, skip to step 5.
2.
Connect the video monitor to the VGA port on the back of your system (see item 1 in the DR4000 System Rear Chassis Port Locations table).
3.
Connect the USB keyboard to one of the two USB ports on the back of your system (see item 3 in DR4000 System Rear Chassis Port Locations table).
4.
You are now ready to perform initialization using the DR Series system CLI login process. For more information, see Logging in and Initializing the DR Series System.

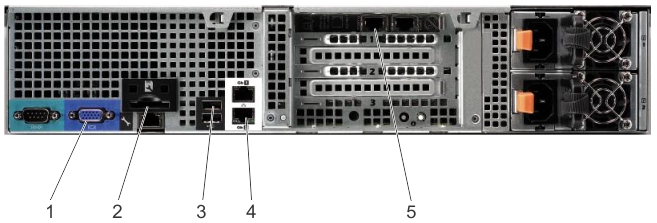

Figure 6. DR4000 System Rear Chassis Port Locations

The figure shows the DR4000 system rear chassis port and connector locations.

Item

Indicator, Button, or Connector

Icon

Description

1

Video connector

Connects a VGA display to the system.

2

iDRAC6 Enterprise port

Dedicated management port for the iDRAC6 Enterprise card.

3

USB connectors (2)

Connects USB devices to the system. The ports are USB 2.0-compliant.

4

Ethernet connectors (2)

Embedded 10/100/1000 NIC connectors.

5

Ethernet Connectors (2) on expansion card

1-GbE/10-GbE/10-GbE SFP+ Ethernet Port

To make local console cable connections for the DR4100 system appliance, complete the following:


NOTE: For the 1–GbE ports, these are two internal LAN on Motherboard (LOM) ports referenced in item 4 above that reside on the motherboard, and two ports on an expansion card referenced in item 5 above. If the system is using the two 10–GbE ports, these reside on an expansion card referenced in item 5 above.
5.
(DR4100/DR6000 system) Locate the VGA monitor port and the USB ports on the back of your system. See Figure 3 for the VGA and USB port locations and complete steps 5 to 8.
6.
Connect the video monitor to the VGA port on the back of your system (see item 2 in the DR4100/DR6000 System Rear Chassis Port Locations table).
7.
Connect the USB keyboard to one of the two USB ports on the back of your system (see item 3 in the DR4100/DR6000 System Rear Chassis Port Locations table).
8.
You are now ready to perform initialization using the DR Series system CLI login process. For more information, see Logging in and Initializing the DR Series System.

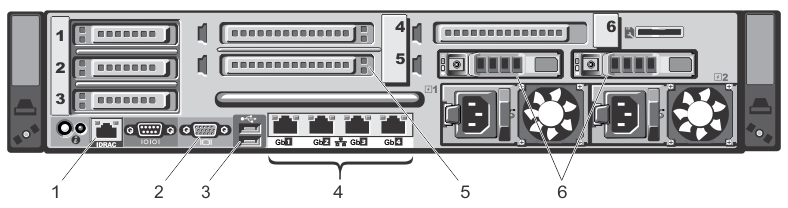

Figure 7. DR4100/DR6000 System Rear Chassis Port Locations

The figure shows the DR4100 system rear chassis port and connector locations.

Item

Indicator, Button, or Connector

Icon

Description

1

iDRAC7 Enterprise port

Dedicated management port for the iDRAC7 Enterprise card (port is available only if an iDRAC7 Enterprise license is installed on your system).

2

Video connector

Connects a VGA display to the system.

3

USB connectors (2)

Connects USB devices to the system. The ports are USB 2.0-compliant.

4

Ethernet connectors (4)

Four integrated 10/100/1000 NIC connectors, or four integrated connectors that include:

•
Two 10/100/1000 Mbps NIC connectors
•
Two 100 Mbps/1 Gbps/10 Gbps SFP+/10-GbE T connectors

5

PCIe expansion card slots (3)

Connect up to three full-height PCI Express expansion cards

6

Hard drives (2)

Provides two hot-swappable 2.5-inch hard drives


NOTE: The DR4100/DR6000 system supports up to six 1–GbE ports or up to two 10–GbE ports. For the 1–GbE ports, these are four internal LAN on Motherboard (LOM) ports referenced in item 4 above that reside on the network daughter card (NDC), and two additional ports on a PCI Express expansion card referenced in item 5 above. If the system is using the two 10–GbE ports, these ports reside on the NDC.
Parent topic
