Realtime Statistics Tab

The Realtime Statistics tab in the Results page provides you with real-time graphs and raw data. This data allows you to spot system-under-test issues that may be affecting server performance. The Realtime Statistics tab displays real-time counter data. Right-clicking inside the graph displays a drop-down that allows you to change graph settings and view.

To view Real-time Statistics

In the Jobs View, click the job running.

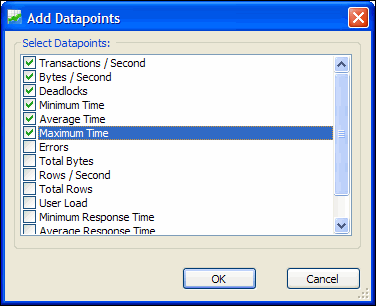

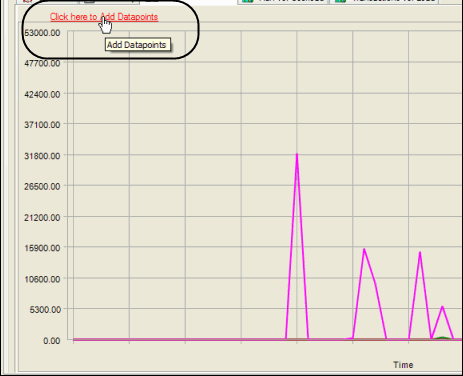

Select Click here to Add Data points. The Add Data points dialog displays.
Select the desired data points to view.

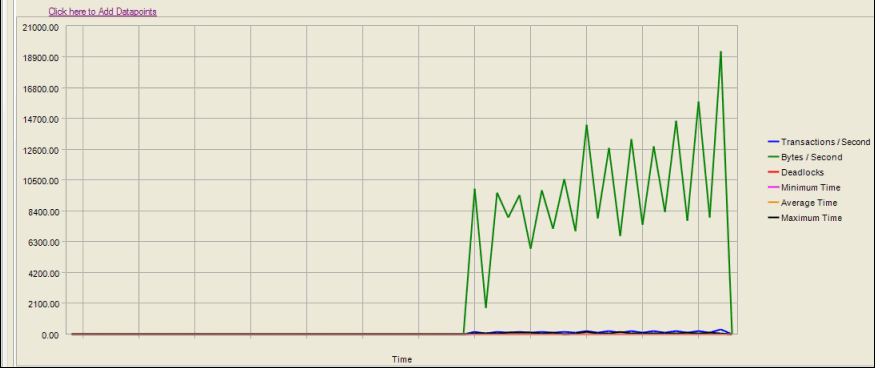

Click OK. The graph displays with the selected data points. (To change graph views, right-click. See Change Graph Views for more information.)

Run vs Userload Tab

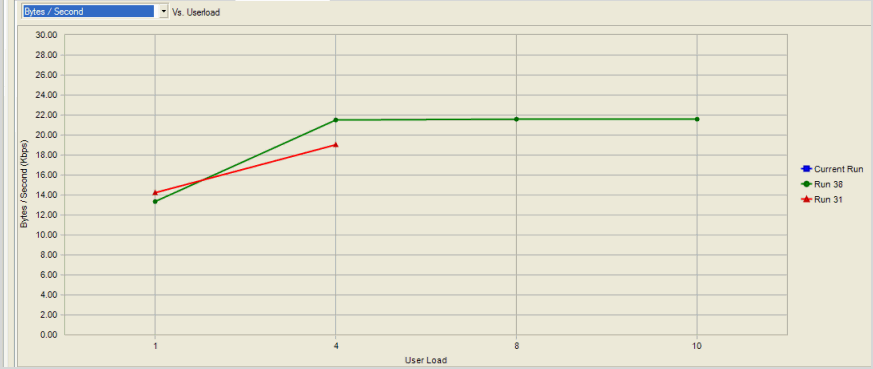

The Run vs. Userload tab in the Results page compares the user load transaction against the selected data point allowing you to view how the various data points are being affected by the job running.

To view Run Vs. Userload tab testing results:

While the job is running, select the Run vs. Userload tab on the Results page.

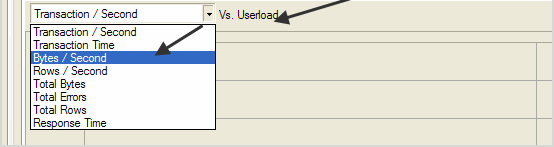

Click the data points Vs. Userload drop-down and select the desired data point.

The graph updates with the selected data point.

To change graph views, right-click. See Change Graph Views for more information.

Transaction vs Load Tab

The Transactions vs Load tab in the Results page displays user selected transactions statistics for the job timing period following completion of an iteration.

To view the Real-time statistics

In the Jobs View, click the job that is currently running.

From the data points Vs. Userload drop-down list, select the data points to view.

To change a graph view, right-click a Benchmark Factory graph to display a drop-down list that allows you to customize graph settings. See Change Graph Views for more information.

Changing Graph View

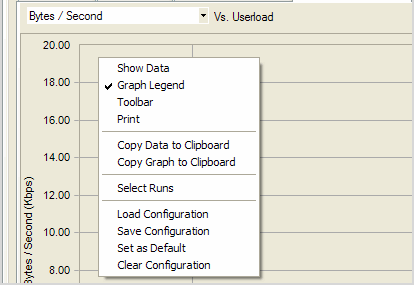

To modify a graph view, right-click a Benchmark Factory graph to display a drop-down list that allows you to customize graph settings. Whether you are viewing a real-time graph or one in Benchmark Factory Run Reports, Benchmark Factory uses the same graphing tool. In most cases you will find that the graphs are presented in the most meaningful form (Line Graphs or Bar Graphs based on the data being presented.)

Displays Benchmark Factory Run Reports

Shows in a data form or graph form

Displays the Graph Legend

Displays the graph toolbar

Prints the graph

Copies Data to Clipboard

Copies Graph to Clipboard

Loads a saved graph configuration

Saves a graph configuration

Sets the current configuration as default

Clears the current chart configuration

Show Data/Show Graph

Toggling to Graph displays the data in graph form.

Graph Legend

Toggling to Graph Legend displays a legend on the side of the graph.

Toolbar

Toggling to Toolbar displays the graph toolbar.

Print

Choosing Print displays the Print Dialog.

Copy Data to Clipboard

Copies the data to the clipboard.

Copy Graph to Clipboard

Copies the graph to the clipboard.

Load Configuration

Benchmark factories graphs allows you to save graph configurations.

Save Configuration

Saves a graph configuration.

Set as Default

Sets a configured graph as default.

Clear Configuration

Clears a graph configuration.
