Toad® for Oracle® Connections

Toad Data Modeler recognizes Toad for Oracle connections and displays them in the:

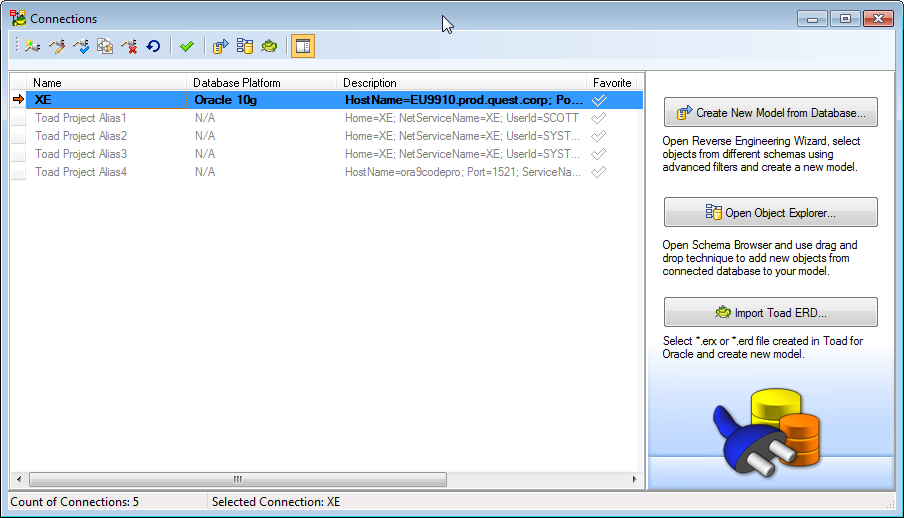

  • Connections dialog - click on Main Toolbar.
  • Reverse Engineering Wizard - click on Main Toolbar.

Note:

  • Both options are available from the File Menu | Reverse Engineering.
  • Toad Data Modeler allows you to use Toad for Oracle aliases but it doesn't allow you to save changes to these aliases.

Import Toad® for Oracle ER Diagrams

  1. Select File | Import |Toad for Oracle ERD or File | Reverse Engineering | Connections | Import Toad ERD.

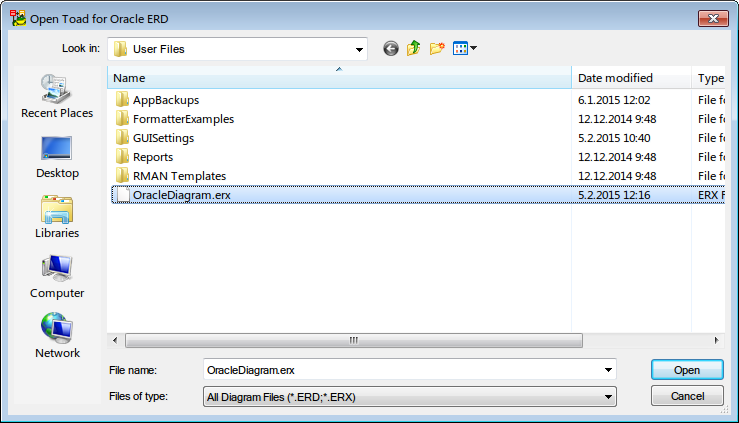

  2. In the Open dialog, select a *.erd or *.erx file and click Open.


  3. If you want to use connection string stored in ERD file, click Yes in the following dialog window:

  4. Toad Data Modeler needs to reverse engineer database which contains the objects in your diagram. You will be asked for the database password.

  5. The import starts and ERD is created.



Open Toad® for Oracle® Projects

  1. Select File Menu | Import | Open Toad for Oracle Project.
  2. In the Open dialog, select a *.tpr file. Toad Project Manager opens.

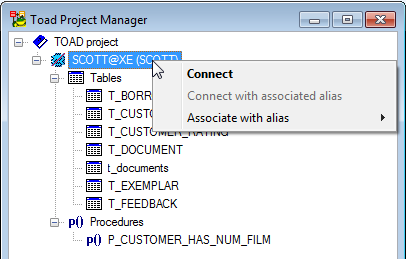

  3. Select a connection type, right-click it and select Connect.

  1. After you are connected, you can select items from the Toad Project Manager and drag them to a Workspace or Model Explorer of your model in Toad Data Modeler.
  2. Right-click the connection and select Disconnect or simply close Toad Project Manager.

Note: Tables that already exist in the model cannot be added to the model.

Toad® for Oracle® as Default Editor

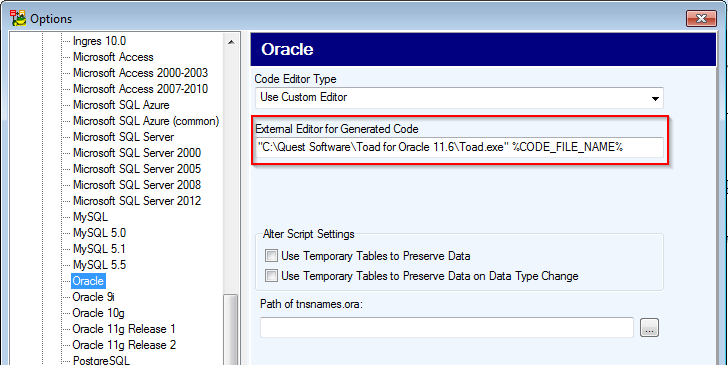

Select Toad for Oracle® as a default editor to open every generated SQL script in Toad for Oracle® (Oracle models only).

You can define any other third party application as default editor.
