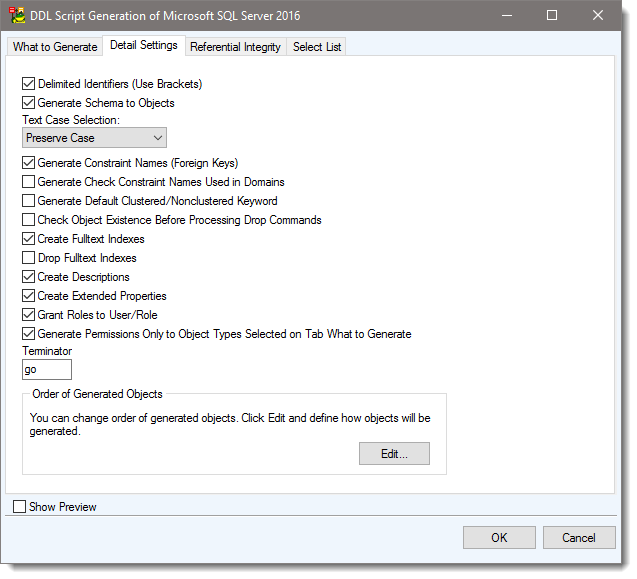

Script Generating



Note: To generate the table, column descriptions for SQL Server db in Toad Data Modeler, schema/owner has to be defined. Please see the Entity Properties form | General tab and from the Schema box select a schema or click the icon on the right to open the Schema dialog and define a new schema, then select it for the entity.

Microsoft SQL Server 2017

Entity

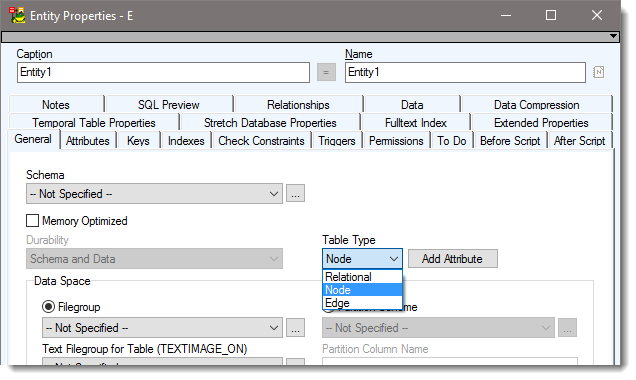

  • New node and edge (graph) tables are now supported
  • Click Add Atribute to add graph table specific attributes. In Attributes, these will be called using $node_id and $edge_id, $from_id, $to_id for node and edge tables respectively

Details

  • CREATE EXTERNAL LIBRARY: External libraries are not supported

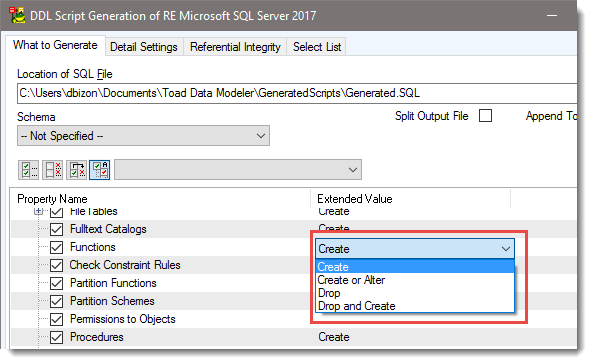

  • CREATE OR ALTER: this clause is now supported for procedures, views, functions, and triggers (with exception for Change Script Generation where only Alter or Drop and Create are used)

Reverse Engineering

Available Data Providers are:

  • Connection via ADO
  • Native Connection

Connection via ADO:

Native Connection:

Reverse Engineering Settings

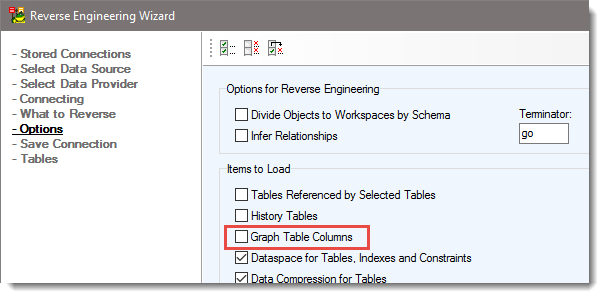

  • Check Graph Table Columnsto include graph table columns $node_id", "$edge_id", "$from_id", "$to_id in your RE

Script Generating

Note: To generate the table, column descriptions for SQL Server db in Toad Data Modeler, schema/owner has to be defined. Please see the Entity Properties form | General tab and from the Schema box select a schema or click the icon on the right to open the Schema dialog and define a new schema, then select it for the entity.
