Macro and User Forms - Use Case

Scenario

You want to create a macro that will add a prefix to all attributes in your model.

Solution: You will create a macro Add Prefix. The macro will be available via right-click menu on the Workspace. You want to create a user form where you will define the prefix and decide if you want to apply the change in Caption of attributes too.

  1. Open Script Explorer.
  2. Right-click the Macros item and select Add New Macro.
  3. Right-click the new item and select Properties.

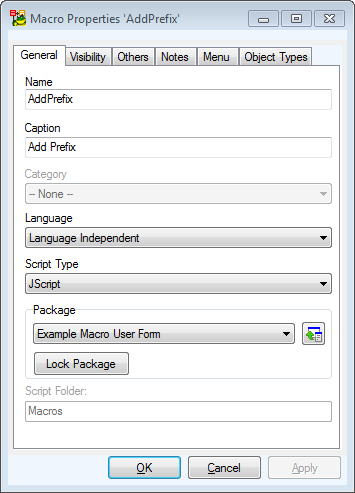

  4. On tab General, define properties of the macro.

Important: Name of macro mustn’t contain spaces and other forbidden characters. The name must start with a character (not number). Then you can use characters, numbers or possibly '_'. The rules don’t refer to caption. Caption can be any title you want.

  1. On tab Visibility, select where you want to apply the macro – Physical Model.

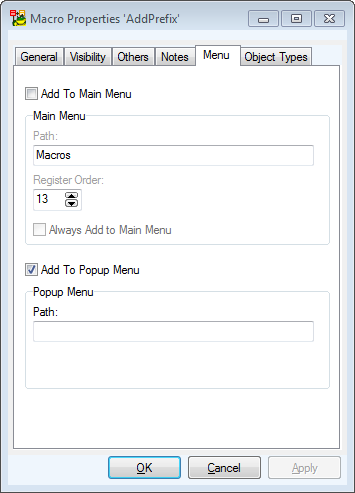

  2. On tab Menu, define whether you want to display the macro in:
  • Macro menu,
  • pop-up menu,
  • both places.

Parameter Path specifies position in main menu (or pop-up menu). Example: 'Test\My Items'.

In this example, you decide to display it only in pop-up menu.

Path box is empty as 'Macros' item is set as default.

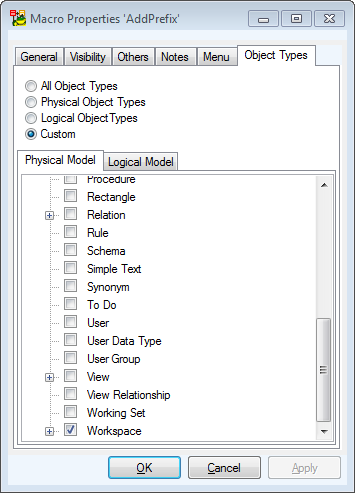

  1. On tab Object Types, select in which object pop-up menu you want to display it. Select Workspace.
    Confirm OK.

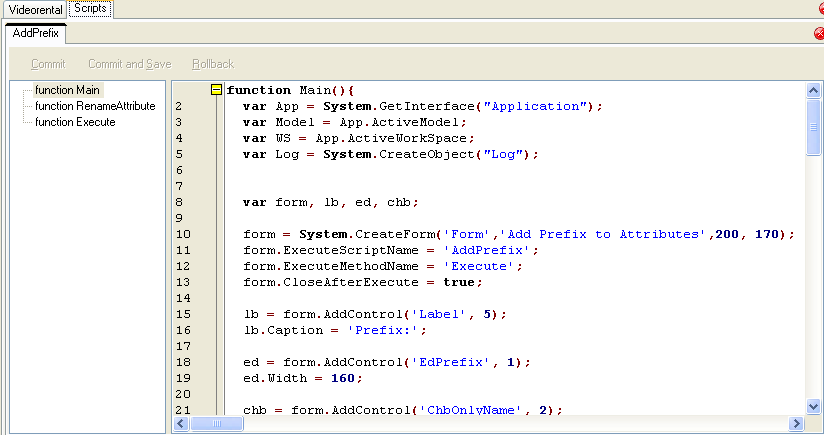

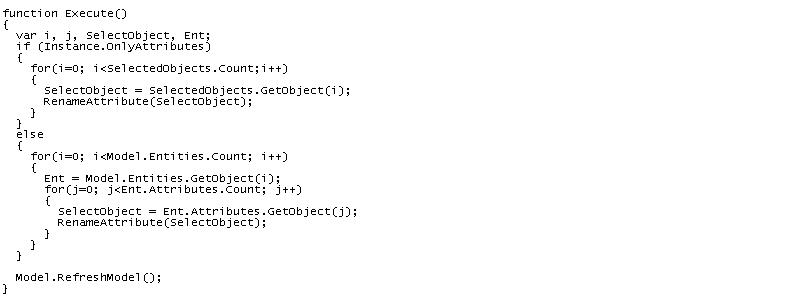

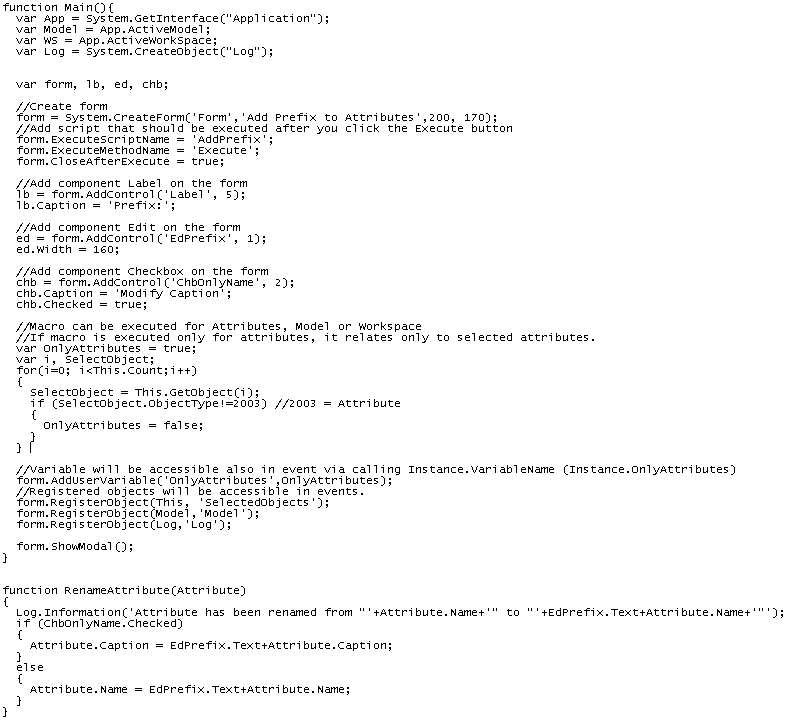

  1. Double-click the macro in Script Explorer to open Script Editor. Modify the default code.

  1. Click Commit and Save.

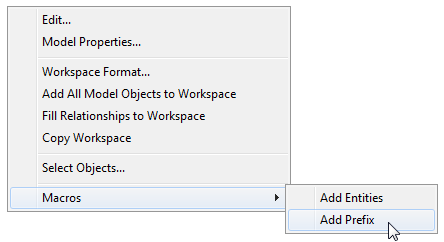

  2. Right-click the Workspace |Macros |Add Prefix to open the user form.

About Metamodel

Toad Data Modeler implements the concept of metamodels. Metamodels are accessible only in Expert Mode (via Package Explorer).

Metamodel is a graphical representation of objects, classes, methods and relationships between them in a specific Package.

Using metamodels, you can create your own classes, methods and properties and define relationships between those items and items that are created in the application by default.

Important: It is recommended to only use lower and uppercase letters for naming your objects in metamodels (no numbers and special characters).



Example: The metamodel of Oracle package



Open Metamodels

  1. Open (or select Expert Mode Menu | Customization | Package Explorer).
  2. Select a package.
  3. Right-click the package and select Open Metamodel.



Classes

Toad Data Modeler implements the concept of metamodels. Metamodels are accessible only in Expert Mode (via Package Explorer).

Metamodel is a graphical representation of objects, classes, methods and relationships between them in a specific Package.

Using metamodels, you can create your own classes, methods and properties and define relationships between those items and items that are created in the application by default.

Important: It is recommended to only use lower and uppercase letters for naming your objects in metamodels (no numbers and special characters).



Example: The metamodel of Oracle package



Open Metamodels

  1. Open (or select Expert Mode Menu | Customization | Package Explorer).
  2. Select a package.
  3. Right-click the package and select Open Metamodel.



Add Existing Classes

  1. Right-click the work area and select Add Class.
  1. In the Class Selection dialog, select a class and define settings on tab Settings.

Result: The selected class will be added to your metamodel and you will be able to modify it.
