Modifying Instructions

Depending on the operation, you may be able to modify some or all of the parameters of XML Instructions with valid values.  For example, while the Migrate User action only permits one user to be migrated via the ControlPoint application interface, you can run the operation on multiple users by adding them to the XML instructions.

You should not attempt to change any part of the instructions apart from modifiable parameters.   It is strongly recommended that you make a copy of the XML file before editing it, as it is possible that unintended changes can be made to tags or unmodifiable portions of the file.

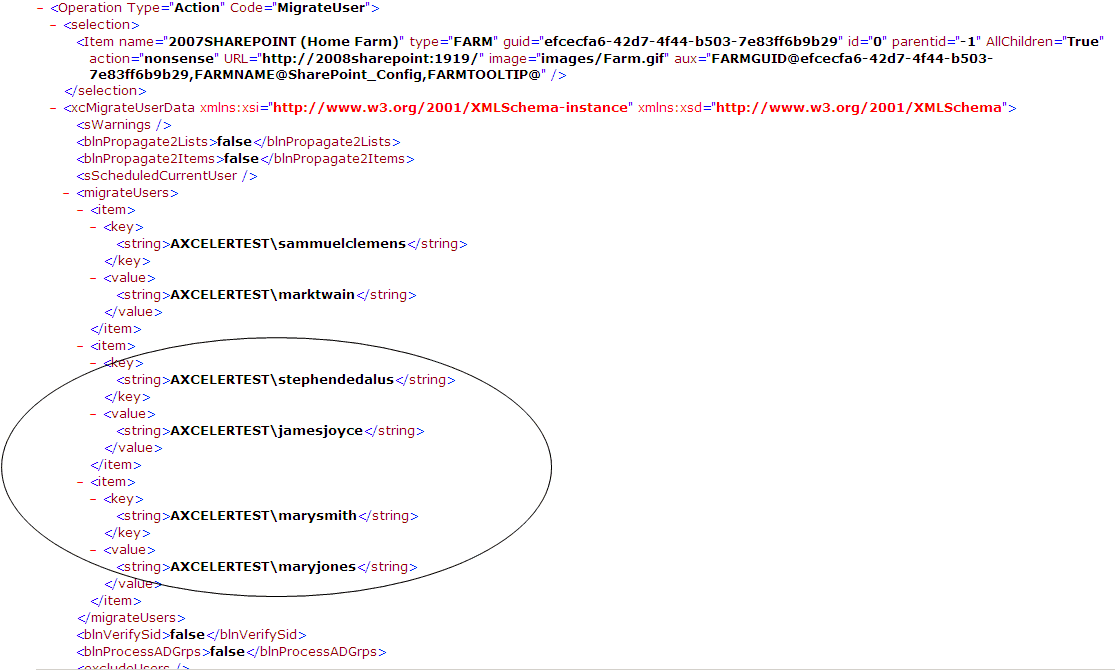

xml instructions



Running Instructions

To run instructions for a ControlPoint operation:

1Use one of the following options:

§From the SharePoint Hierarchy select the farm node, then choose Run Saved Instructions.

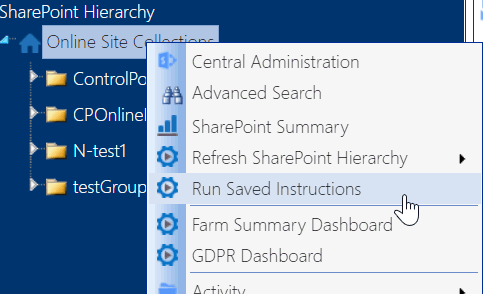

Run Saved Instructions HIERARCHY

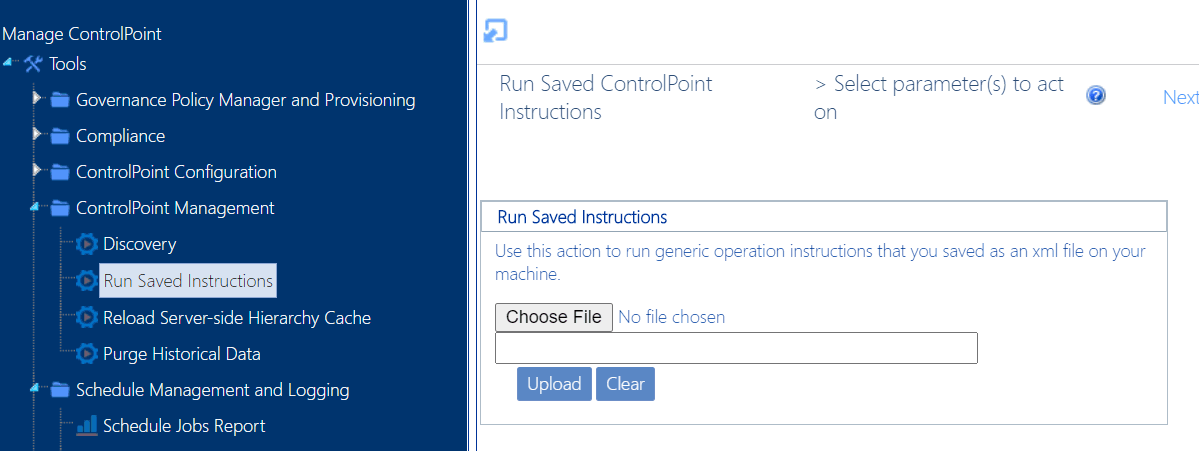

§From the Manage ControlPoint panel, choose Run Saved ControlPoint Instructions.

Run Saved Instructions

2Click [Browse...] and locate the XML File with the instructions you want to run.

3Click [Upload].

Now you can either:

·run the operation immediately (by clicking the [Run Now] button)

OR

·schedule the operation to run at a later time.

Configuring a URL for Running Saved Instructions from Outside ControlPoint

You can create a url from which you can invoke the running of saved ControlPoint instructions from outside the ControlPoint application.  This technique makes it possible for ControlPoint users to run a ControlPoint operation from anywhere a URL can be placed, including:

·an electronic document

·a Links Web Part on a SharePoint site

·within an email to another ControlPoint user.

The instructions can be saved to a file share or posted to a document library that has been created within the ControlPoint Configuration site.

When the URL is launched, the Run Saved ControlPoint Instructions page opens in a standalone window and the instructions begin running automatically.

User Account Requirements

In order to run saved instructions from a URL:

·the ControlPoint user must have permissions to perform a ControlPoint operation on the SharePoint object(s) within the scope of the saved instructions, and

·the ControlPoint Service Account must have access to the file share or document library to which the instructions have been saved.

NOTE:  One of the advantages of posting to the ControlPoint Configuration site is that the appropriate permissions to the  document library are automatically granted (through inheritance from the parent site) by default.

Parts of the URL

·http://<server_name>:<port_number>/_layouts/axceler/xcexecutexml.aspx

The path to the ControlPoint application Run Saved ControlPoint Instructions page

·Either

§XMLFILEURL=[directory]\[file_name.xml]

The path to the saved instructions on the file share.

NOTE:  If you specify a local drive (for example, C:\), ControlPoint assumes that the drive is local to the server on which ControlPoint is installed (not the current user's machine).

OR

§XMLLISTNAME=[library_name]&XMLFILENAME=[file_name]

The path to the saved instructions in the document library on the ControlPoint Configuration site.

Example: Instructions saved to a file share

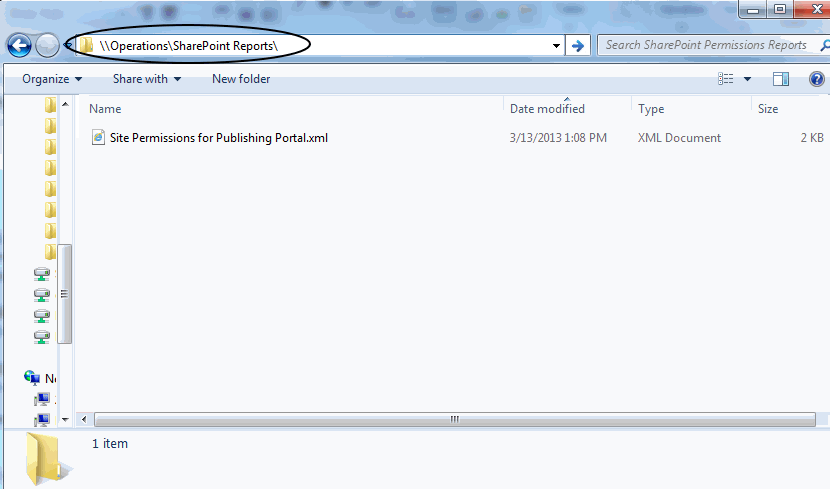

Execute from URL FILESHARE

URL = http://qa2016farmvm1:1818/_layouts/axceler/xcexecutexml.aspx?XMLFILEURL=\\Operations\SharePoint Reports\Site Permissions for Publishing Portal.xml

Example:  Instructions Saved to a ControlPoint Configuration Site Document Library

Note that the document library to which you post the saved instructions must have been created within the ControlPoint Configuration site.

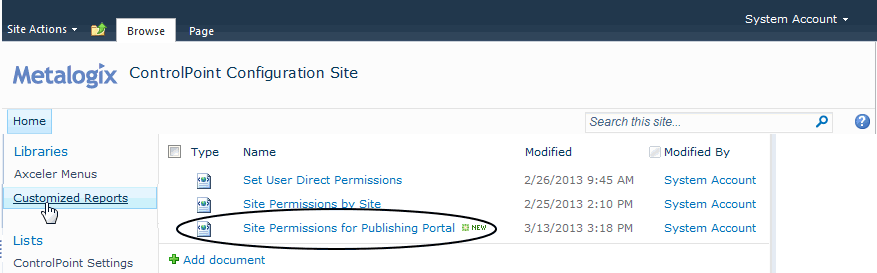

Instructions URL LIBRARY

URL=http://qa1016farmvm1:1818/_layouts/axceler/xcexecutexml.aspx?XMLLISTNAME=Customized Reports&MLFILENAME=Site Permissions for Publishing Portal.xml

Using the ControlPoint Governance Policy Manager

The ControlPoint Governance Policy Manager allows you to define standard governance polices or best practices consisting of one or more ControlPoint operations, each scheduled to run at a specified time or interval, and applied to a selected scope.

NOTE:  Governance Policies cannot be applied to the scope of an entire farm.

For example, you may want to both monitor and enforce security for some of your most mission-critical SharePoint sites.  You could create a Governance Policy that will enable you to:

·generate a weekly Site Permissions report and have it sent to each of the site owners.

·back up site permissions on a regular basis

·create ControlPoint Policies to control the types of permissions changes that can be made to sites within the selected scope

To manage the size of site collections within your environment, you could create a Governance Policy that will enable you to:

·create ControlPoint Policies to control:

§the size of files uploaded to lists and libraries within the selected scope

§the creation of subsites at a specified depth

·use the Set Site Collection Properties action to set and enforce the same quota across all site collections within the scope

·run a weekly Most/Least Storage analysis to identify and monitor the site collections and sites within the scope using the most storage

You can also apply Governance Policies to Site Provisioning templates.
