SQL Optimizer for SAP ASE 3.8 - User Guide

Introduction Tutorials Preferences Editor Functions SQL Information and Functions Performance Monitor SQL Inspector SQL Collector for Monitor Server SQL Scanner Index Advisor SQL Optimizer
SQL Optimizer Overview Optimization Engine Common Coding Errors in SQL Statements What Function Should l Use to Retrieve the Run Time? Unsatisfactory Performance Results SQL Optimizer Functions SQL Editor Optimized SQL Activity Log
SQL Worksheet SQL Formatter Database Explorer Code Finder Object Extractor SQL Repository Index Impact Analyzer Index Usage Analyzer Configuration Analyzer Migration Analyzer Abstract Plan Manager User-Defined Temp Tables SQL History Legal Information

Save Optimized SQL

Save Optimized SQL

SQL Optimizer > Optimized SQL > Save Optimized SQL > Save Optimized SQL

You can save the Optimized SQL statements. Unlike a report, this file is used to reload the SQL back to the SQL Optimizer window using the Open Optimized SQL function.

To save the original SQL and the SQL alternatives

Select SQL | Save Optimized SQL.



Related Topics

Open Optimized SQL

SQL Optimizer > Optimized SQL > Save Optimized SQL > Open Optimized SQL

After you have saved the optimized SQL statements to a file, you can load them back through the SQL Optimizer window:

To load a saved optimized SQL statements and alternatives

  1. Select SQL | Open Optimized SQL.

  2. Select the file you want to load and click Open. This loads the saved SQL statements to the SQL Optimizer window. The Open Optimized SQL Details window displays the following:

Summary tab

Optimization Information

Displays the original connection and optimization settings information.

Last Saved Query plan Information

Displays the saved and current connection information and whether there are any changes in SQL structure and query plans.

User-Defined Temp Table Tab

If the SQL statement uses a temporary table, the User-Defined Temp Table tab displays in this window. It displays the DDL used to create the temporary table.

Changes Tab

If there are any changes to the SQL structure or the access plans, the Changes tab displays inI this window. It displays the SQL text along with the saved and current query plan.

If there are any changes in either SQL structure or query plans it is advisable that you refresh the query plans so that the reloaded image is a truth reflection of the current environment before any further testing is done. Click Refresh Plan from the Open Optimized SQL Details window. If there are changes in the query plan the corresponding SQL statements run time and statistics information are deleted. All invalid SQL statements are removed, except for the original SQL statement. You have an option to eliminate SQL statements with duplicate query plans.

After refresh, the Refresh Plan Details window can be displayed. This window displays the number of query plans refreshed, the total eliminated, and invalid plans.

The Open Optimized SQL Details and Refresh Plan Details windows can be reviewed at a later stage.

To view the details

Select View | Show Open Optimized SQL Details and View | Refresh Plan Details.



Related Topics

View Open Optimized SQL Details

SQL Optimizer > Optimized SQL > Save Optimized SQL > View Open Optimized SQL Details

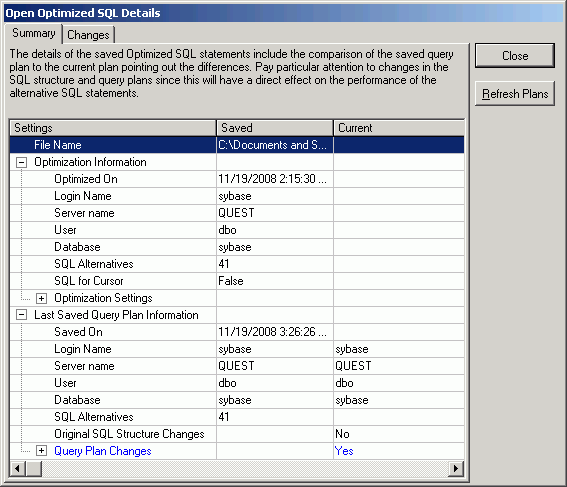

The Open Optimized SQL Details window displays information about the optimization process and the resulting query plans. The Open Optimized SQL Details window displays after the SQL statements are reloaded into the SQL Optimizer window. You can review the Open Optimized SQL Details window once it has been closed by selecting View | Show Open Optimized SQL Details when the SQL Optimizer window is active.

Note: The Optimized SQL Details cannot be viewed if the SQL Editor pane is the active pane in the SQL Optimizer window.

The Open Optimized SQL Details window has the following tabs:

Summary Tab

The Summary tab provides detailed information about the optimization of the SQL statements and changes that may have occurred in the query plans of the original SQL or alternative SQL statements since the optimization process was done.

Optimization Information

The optimization information includes the date and time of the optimization, how many alternatives were created, the connection information, and the optimization settings from the Preferences window at the time of this optimization.

Last Saved Query Plan Information

The query plan information includes the date and time of the SQL statements that were saved, how many alternatives were created, the connection information, and if any of the query plans have changed since the time they were saved.

During the process of opening the Save Optimized SQL, the current query plan is retrieved and compared to the saved query plan. The changes are noted in the Current column as follows:

Current column item Description

Cost only

The only change to the query plan was a change in the Estimated I/O cost.

Structure and cost

Both the structure and Estimated I/O cost of the query plan changed.

Structure only

The structure of the query plan changed but the Estimated I/O cost remained the same.

No

The current query plan is the same as the query plan that was saved with the SQL statement.

Refresh Plan Button

The Refresh Plan button enables you to replace old query plans with the current plans. This process retrieves the current query plans, deletes any SQL statement that is now invalid, removes any run time information. You can select to eliminate SQL alternatives that now have duplicate query plans. After the query plans are refreshed, the Refresh Plan Details window displays.

Note: The Refresh Plan button is only enabled when there is a difference between the current query plan and the saved plan.

Changes Tab

The Changes tab displays the text of the SQL statement in the top pane. The bottom pane displays the saved query plan and the current query plan side by side for comparison.

User-Defined Temp Table Tab

The User-Defined Temp Table tab is available only if the SQL statements use a temporary table. When the Optimized SQL statements were saved, the DDL for creating the temporary table is saved with them and when the SQL statements are reloaded the DDL displays.
