Replicator 7.4 - Reference Guide

Metalogix Replicator Documentation Replicator Central Administration Configure Web Application Manage Replication Groups Manage Replication Connections Manage Classifications Manage Map Families
Actions Configure Map Family Configure Replication Map Settings Manage Map Family
Monitor Replicator About Metalogix Replicator Site Settings

Content Synchronization Job Schedule

This section lets you set the schedule you with to use for this synchronization job. You may choose to run the job immediately, at a set date, at a set time interval, daily, weekly, monthly.

Configure Content Synchronization6

If you make a scheduling selection other than Immediately, you are then given the option to choose whether to enable this scheduled Queue Map Job.

Configure Content Synchronization7



Monitor Replicator

Monitor Replicator is accessed by selecting Monitor Replicator from the Application Management page in Central Administration. Use the Monitor Replicator hub to view Replicator health statuses, active servers, packages currently being transferred, the current status of replicator packages, historical statistics of Replicator in your environment, and for the management of conflicts.

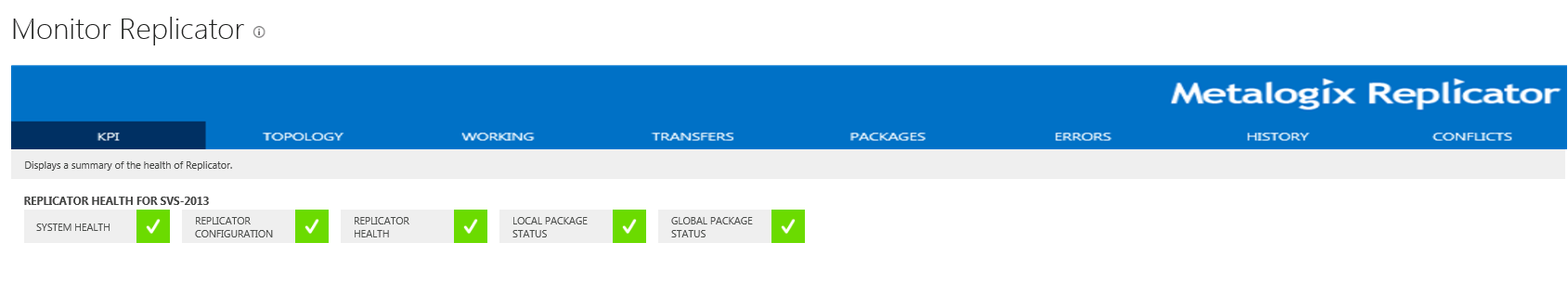

monitor replicator 2

KPI

The KPI tab of the Monitor Replicator page displays a summary of the health of Replicator.

monitor replicator 2

Status

For detailed information about the various statuses, for each health check, click on the health check to expand, and then click on the sub system health check for a message relaying the status of that particular check. You can also scroll over the various health checks for tool tips on the system requirements for that particular health check.

Colours

Meaning

Green

METALO~3_img131

All checks have come back successful, requirements have been met.

Yellow

METALO~3_img132

Warning, some dependencies may not be met. Open the health check for further details.

Red

METALO~3_img133

An Error has occurred. Open the health check for further details.
