Creating virtual test environments



About Active Directory Virtual Lab

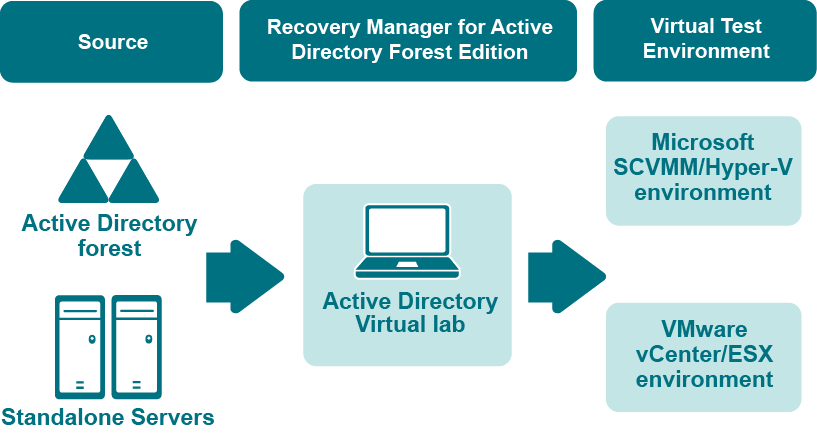

The Active Directory Virtual Lab is a component of Recovery Manager for Active Directory that helps you create virtual test environments from an Active Directory® forest. You can use the created test environments to design and evaluate Active Directory® disaster recovery scenarios, test planned Active Directory changes before deploying them to production, train your staff to perform Active Directory-related tasks, and more.

Resources/Images/6_UG.png

When creating virtual machines from the source computers, the Active Directory Virtual Lab uses third-party virtualization software, such as Microsoft System Center Virtual Machine Manager (SCVMM), VMware ESX, or VMware vCenter. For a full list of supported virtualization software, see the System Requirements section in the Recovery Manager for Active Directory Release Notes.

You can create virtual machines that maintain all the data available on the source computers, including Active Directory®, installed programs, and files. To manage the created virtual test environment, you need to use the tools provided by the virtualization software with which the Active Directory Virtual Lab created the virtual machines in the test environment.

To create a virtual test environment from an Active Directory® forest, you first need to select the source computers (domain controllers or standalone servers) you want to include in the test environment, configure settings to create a virtual machine from each source computer, and then have the Active Directory Virtual Lab create the test environment for you.

For instructions on creating a virtual test environment, see How to create a virtual test environment.



Permissions

This section lists the permissions required to create a virtual test environment by using the Active Directory Virtual Lab.

Install and use Active Directory Virtual Lab

Be a member of the local Administrators group.

Create a virtual machine from a source computer

NOTE: This includes access to the source computer, Forest Recovery Agent installation, and virtualization agent installation.

Be a member of the local Administrators group.

Create a virtual test environment using Microsoft SCVMM
  • Have the Delegated Administrator role on the Microsoft SCVMM server. Be a member of the local Administrators group on the target Hyper-V® host.

  • To create a generation 2 virtual machine using SCVMM, Active Directory Virtual Lab console needs access to the share with VHDX/RAW files on the Hyper-V® host.

Create a virtual test environment using VMware vCenter/ESX

VMware vCenter® / VMware ESX® server:

  • Datastore

    • Allocate Space

    • Browse Datastore

  • Network

    • Assign Network
  • Resource

    • Assign Virtual Machine To Resource Pool
  • Profile-driven storage

    • Profile-driven storage view
note

This permission must be assigned to the vCenter Server root level.

  • Virtual Machine

    • Configuration

    • Guest Operations

    • Interaction

      • Configure CD Media

      • Device Connection

      • Power Off

      • Power On

      • VMware Tools Install

  • Inventory

  • Provisioning

    • Allow Disk Access

    • Allow Read-Only Disk Access

    • Customize

    • Modify Customization Specifications

    • Read Customization Specifications

  • Sessions

    • Validate session

To install Converter Standalone agent, use built-in Administrator account to connect to the source machine or disable User Access Control (UAC) on the source machine.



Communication ports

This section provides information about the communication ports required to create a virtual test environment with the Active Directory Virtual Lab.

In this section:
