Safe Mode in NetVault

Setting up a global notification method

To set up a global notification method:
1
In the Navigation pane, click Configure Notifications.
2
On the Editing Global Notification Profile page, open the event class, and then open the event type that you want to be notified about.
3
Configure the notification method that you want to use. You can configure multiple notification methods for a single event.

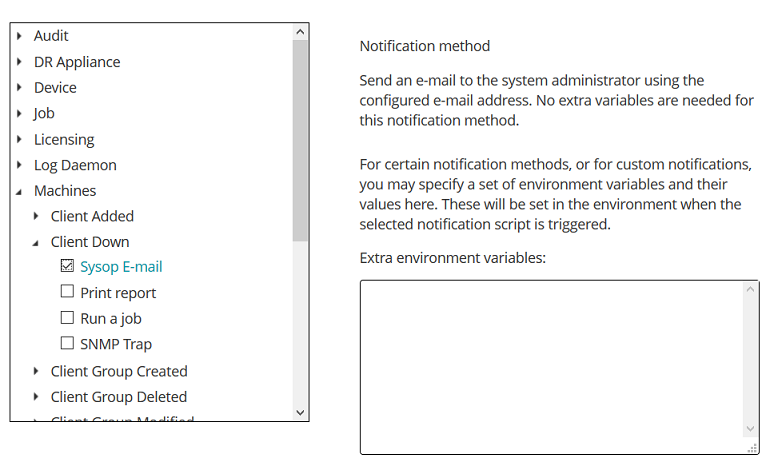

Figure 21. Editing Global Notification Profile page

Table 111. Setting up global notification method
Notification method
Description

Sysop Email

Select this method to send an email notification to the Administrator (Sysop) when the event occurs.

Before you can use this method for sending notifications, you must complete the following tasks:

•
Configure the Outgoing Email Server (SMTP) settings. For more information, see Configuring email server settings for notifications.
•
Configure SysOp email address. For more information, see the Configuring SysOp email ID for notifications.

Print Report

Select this method to print a report after it is successfully generated from the View Reports page. This method can only be used for Report Job events.

On Linux-based NetVault Servers, no additional configuration is required to use this method. The printer set up as the default printer for the system is used to print the report.

On Windows-based machines, you must do one of the following:

•
Configure a default printer in NetVault. For more information, see Configuring a default printer for notifications.
The Print Report method uses this printer for all events.
•
Alternatively, set the NVPRINTER variable in the Extra environment variables box:
NVPRINTER=<Printer URL>
The Print Report method uses this printer for an individual event. You can use the NVPRINTER variable to override the default printer setting for an individual event.

Run a Job

Select this method to run a NetVault job when the event occurs.

To use this method, you must do the following:

•
Create the job that you want to run when the event occurs
•
Set the JOBID variable in the Extra environment variables box:
JOBID=<Job ID number of the job that you want to run>

SNMP Trap

Select this method to send SNMP traps (notification) to a network manager host when the event occurs.

Before you can use this method for sending notifications, you must complete the following configuration tasks:

•
Copy the file nvnotifications.mib to the “.mib” files directory on the host system running the network management software.
The “.mib” (Management Information Base) file describes the format of SNMP Traps that NetVault sends. You can find nvnotifications.mib in the etc directory under the NetVault installation directory. For more information about the location of the “.mib” files on the host, see the relevant network management software documentation.
•
Configure the network manager host settings from the Change Settings page. For more information, see Configuring network manager host settings for notifications.
4
Click Save to save the global notification profile.

Using custom notification methods

This section includes the following topics:

•
About custom notification methods
•
Creating a custom notification method
•
Setting up a custom notification method

About custom notification methods

About custom notification methods

Custom Notification Methods are created using external scripts, and typically used to perform some tasks when an event occurs in the NetVault Domain.

The script file contains header and body. The header specifies the script name and provides a brief description about the script. The script body contains the commands. You can use any text editor to create the script file. The script file should reside in the global subdirectory under the NetVault scripts directory (<NetVault home>\scripts\global on Windows and <NetVault home>/scripts/global on Linux).

Only users with a good knowledge of scripting using NetVault executable files and environmental variables should use this feature.

Creating a custom notification method

To create a custom notification method:
1
Open a new script file in a text editor.
2
Create the script header:
•
Specify the method name on the first line. Enclose the name within the NVNAMESTART and NVNAMEEND tags.
On Linux and UNIX platforms, specify the interpreter name on the first line of the script (for example, #!\bin\sh).
•
To include a description about the script, enclose the text within the NVCOMMENTSTART and NVCOMMENTEND tags. You can use multiple lines of text. Script description is optional.
•
Begin each header line with a REM tag on Windows and the “#” character on Linux and UNIX to mark the line as a comment.
Example (Windows):
REM NVNAMESTART My Custom MethodNVNAMEEND
REM NVCOMMENTSTART Start a new
REM occurrence of this event.
REM NVCOMMENTEND
3
Create the script body and specify the syntax for the commands. You can open the NetVault scripts in the util directory using any text editor to view the proper structure and use them as a template for custom scripts.
To use NetVault scripts residing in the scripts directory, provide the complete path:
•
Windows: %NVHOME%\scripts\<command>
•
Linux and UNIX: $NVHOME/scripts/<command>
Verify that the script has a valid exit status.
4
Save the script:
•
On Windows, assign “.bat” extension to the file and save it in the <NetVault home>\scripts\global directory.
•
On Linux, assign “.sh” extension to the file and save it in the <NetVault home>/scripts/global directory.
