NetVault Plug-in for NDMP 11.4 - User Guide

Recommended additional reading

•
NetVault Backup documentation
•
Quest NetVault Backup Installation Guide: This guide provides details on installing the NetVault Backup Server and Client software.
•
Quest NetVault Backup Administrator’s Guide: This guide explains how to use NetVault Backup and describes the functionality common to all plug-ins.
•
Quest NetVault Backup CLI Reference Guide: This guide provides a description of the command-line utilities.
•
Quest NetVault Backup Plug‑in for NDMP Application Notes: These notes provide filer-specific information.
You can download these guides from https://support.quest.com/technical-documents.
•
NAS device documentation: Administrator’s Guide for your NDMP-based NAS appliance

Installing the plug-in

•
Understanding data transfer models
•
Prerequisites
•
Installing the plug-in
•
Removing the plug-in

Understanding data transfer models

The Plug‑in for NDMP supports the following data transfer models:

•
Direct-attached or local backups
•
Filer-to-filer or three-way backups
•
Remote backups
•
Heterogeneous three-way NDMP backups
•
Filer to NDMP-compliant network-attached tape backups

Direct-attached or local backups

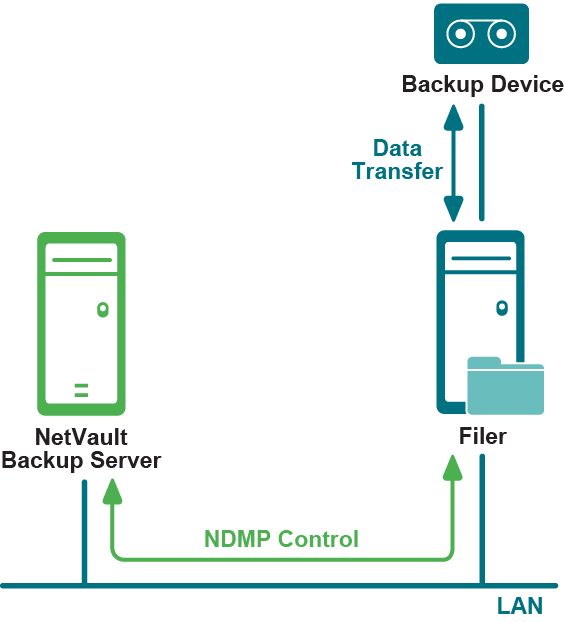

Figure 1. Direct-attached or local backup model

In the direct-attached or local backup model, the NetVault Backup Server instructs the filer to perform backups to the device directly attached to the filer (through Fibre Channel or SCSI). The filer transfers the backup index information to the server using NDMP over the network. During restores, the filer reads the data from the direct-attached device on server instruction. The actual data is not transmitted over the network during backup or restore, eliminating network congestion altogether.
