Or

The Or condition is true if at least one of the conditions below it is true, and is false if all of them are false. Use Or to apply more than one condition.

To add a condition:

1

Select Or, and click the

button below it.

2

Create the conditions as required.

Not

Use Not to reverse the sense of a single condition. The Not condition is true if the condition below it is false, and false if the condition below it is true.

To add a condition:

1

Select Not, and click the

button below it.

2

Create the one condition as required.

Combining And, Or, and Not Conditions

By using nested combinations of And, Or and Not, you can create complex conditions, such as including a Host if:

•

Its name is MainServer or SecondServer.

•

There are no events under it.

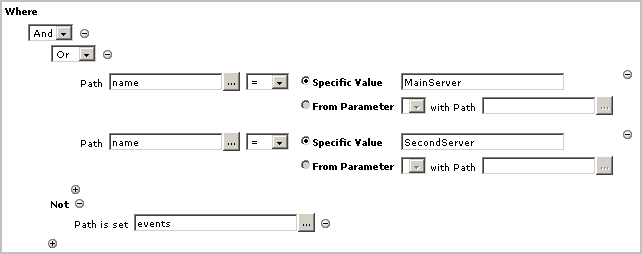

The following example displays how the Where section of a query is set.

Figure 31. Query conditions

The And clause contains the Or and the Not clauses. The Or clause itself contains the two comparison clauses, and the Not clause contains an Is Set clause.

Comments

This is an optional field intended for use by developers. It is automatically filled in if you are copying a query.
