Foglight Hybrid Cloud Manager 1.9 - User Guide (for Azure environments)

Using Foglight Hybrid Cloud Manager for Azure Monitoring Tab Tags Tab Reports Tab Rule Configuration Tab Usage & Quotas Tab Global Services Tab Administration Tab Optimizer Tab Cost Tab Policy Management Tab

Creating Azure Performance Agent

Each of virtual machine can be monitored only by one Azure Performance agent; otherwise the Management Server topology object changes and the performance issue occurs. Quest strongly recommends that each of the Azure Tenant is monitored by an agent. However in some production environments, you have to create two or more agents for monitoring the same Tenant. Under this condition, implement either of the following for those agents to ensure every agent in the same Tenant monitors different virtual machines:

If Monitor All is selected in the Select IaaS Virtual Machines to Monitor dialog box: In the Edit Properties dialog box, select Select Resource Groups to be monitored, and then ensure every agent monitors various Resource Groups.
If Monitor All and Automatically Monitor New Virtual Machines are not selected in the Select IaaS Virtual Machines to Monitor dialog box: In the Edit Properties dialog box, ensure every agent monitors various virtual machines.
If Monitor All is not selected but Automatically Monitor New Virtual Machines is selected in the Select IaaS Virtual Machines to Monitor dialog box: In the Edit Properties dialog box, select Select Resource Groups to be monitored, and then ensure every agent monitors various Resource Groups.

If you still encounter problems, contact Quest Support.

3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4

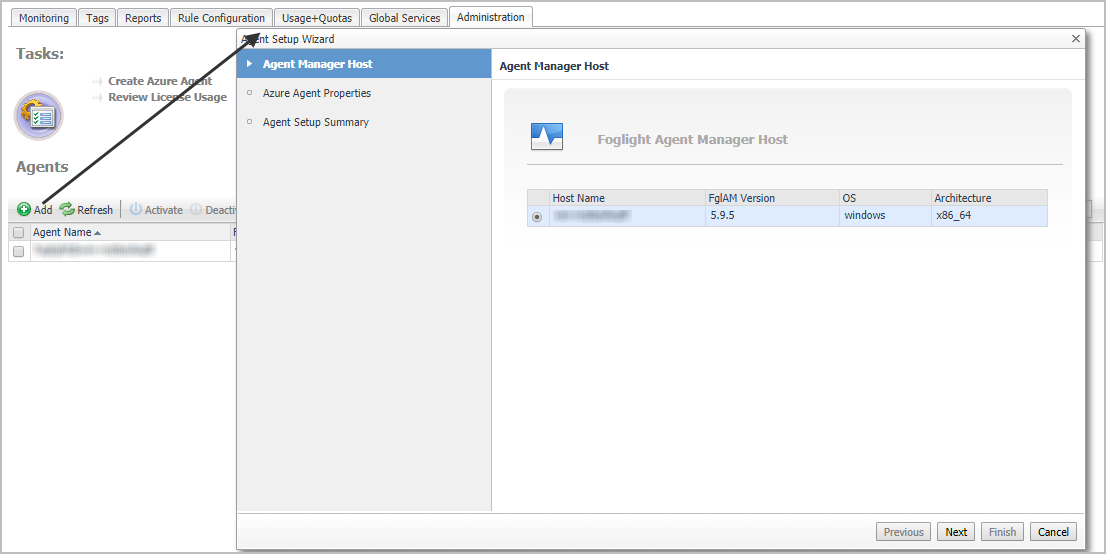

In the Cloud Manager dashboard, click Administration, and then click Add.
The Agent Setup Wizard dialog box opens.
5
In the Agent Manager Host view, select the agent manager on which the new agent is to be deployed, and then click Next.
6
In the Azure Agent Properties view, specify the following values, as needed, then click Next.
Azure Environment*: The value of Azure Environment: Azure.com (default value) or Azure.cn(China).
Tenant Alias Name: The display name that identifies your Tenant.
Application ID *: The value of Application ID retrieved in Getting authentication information through Azure portal.
Specify an agent name (Optional): Specify the name of agent.
Configure Proxy (Optional): Configure the proxy setting when the Agent Host requires a proxy connection to the Internet. For more details, see Configure Proxy (Optional): .
7
In the Agent Setup Summary view, confirm the agent information, and then click Finish.

Dashboard location and UI elements

After installing Foglight Hybrid Cloud Manager for Azure, the Cloud Manager entry appears under Homes.

To access the Cloud Manager dashboard:
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.

The Cloud Manager dashboard consists of the following UI elements:

Group selector

The Group selector is located at the top of the dashboard and allows you to select the Azure environment that you want to monitor.

Figure 1. Group Selector

Actions bar

The actions bar at the top of the Cloud Manager dashboard contains: the Monitoring Tab, the Tags Tab, the Reports Tab, the Rule Configuration Tab, the Global Services Tab, and the Administration Tab.

Figure 2. Actions bar
