Foglight for VMware 7.1.0 - User Guide

Resource Pools view

This view is a tree view. It lists the resource pools that exist in your environment and shows their state.

Selecting the All Resource Pools node displays overall resource utilization for all resource pools in your integrated system, and the elements that consume the highest amount of system resources in the Summary - All Resource Pools view on the right. Similarly, selecting a resource pool node shows resource pool-specific metrics in the Resource Pool Summary view on the right.

Virtual Center Summary view

The Virtual Center Summary view shows the overall resource utilization and the amounts of system resource consumption for a virtual center.

This view is made up of the following embedded views:

Table 161. Alarms

Description	Lists the alarms generated against the selected virtual center.
Data displayed	• Alarm Message. An explanation about why the alarm occurred.
	• Severity. Indicates the alarm severity: Warning, Critical, or Fatal.
	• Time. The time when the alarm was generated.
Where to go next	Drill down on:
	• Alarm Message, Severity, or Time. Displays the Alarm dialog box, showing additional information about the alarm. For more information about alarms in Foglight, see the Foglight User Help.

Table 162. Related Items

Description	Shows the numbers of the components that belong to the selected virtual center and the related alarm counts.
Data displayed	• Clusters. The number of clusters that belong to the selected virtual center, followed by the related alarm counts.
	• Datacenters. The number of datacenters that belong to the selected virtual center, followed by the related alarm counts.
	• Datastores. The number of datastores that belong to the selected virtual center, followed by the related alarm counts.
	• ESX Hosts. The number of ESX hosts that belong to the selected virtual center, followed by the related alarm counts.
	• Resource Pools. The number of resource pools that belong to the selected virtual center, followed by the related alarm counts.
	• Virtual Center. The name of the selected virtual center, followed by the related alarm counts.
	• Virtual Machines. The number of virtual machines that belong to the selected virtual center, followed by the related alarm counts.
Where to go next	Drill down on:
	• Alarm count. Displays the Alarms dialog box that shows a list of all related alarms. For each alarm entry, it shows its severity, the time at which it was triggered, the rule name that triggered the alarm, and the alarm message.
Data displayed	• Clusters. Displays the Clusters Inventory dwell, showing the names and states of all clusters that belong to the selected virtual center.
	• Datacenters. Displays the Datacenters Inventory dwell, showing the names and states of all datacenters that belong to the selected virtual center.
	• Datastores. Displays the Datastores Inventory dwell, showing the names and states of all datastores that belong to the selected virtual center.
	• ESX Hosts. Displays the ESX Hosts Inventory dwell, showing the names and states of all ESX hosts that belong to the selected virtual center.
	• Resource Pools. Displays the Resource Pools Inventory dwell, showing the names and states of all clusters that belong to the selected virtual center.
	• Virtual Center. Displays the Virtual Centers Inventory dwell, showing the name and states of the selected virtual center.
	• Virtual Machines. Displays the Virtual Machines Inventory dwell, showing the names and states of all virtual machines name that belong to the selected virtual center.

Table 163. Resource Utilizations

Description	Shows the resource consumption for the selected virtual center broken down into four simple views.
Data displayed	• CPU Load. The current percentage of the selected virtual center’s CPU load, used to execute system code and user programs, based on the total CPU capacity.
	• CPU Utilization, % Ready. The percentage of the virtual center’s CPU resources that is ready to execute system code and user programs during the selected time period.
	• CPU Utilization, % Used. The percentage of the virtual center’s CPU utilization spent on executing system code and user programs during the selected time period.
	• Disk I/O. The current disk I/O rate for the selected virtual center.
	• Disk Utilization, Read Rate. The rate at which the virtual center reads data from the disk during the selected time period.
	• Disk Utilization, Write Rate. The rate at which the virtual center writes data to the disk during the selected time period.
	• Memory Utilization, Active. The amount of the available memory that the virtual center uses during the selected time period.
	• Memory Utilization, Ballooned. The amount of physical memory that is actively being used by the VMware Memory Control Driver to allow the guest OS to selectively swap memory.
	• Memory Utilization, Shared. The amount of the virtual machine memory that is freed up due to transparent page sharing.
	• Memory Utilization, Swapped. The amount of memory that is stored in disk swap space
	• Network I/O. The current rate at which the selected virtual center transfers data from and to the network.
	• Network Utilization, Receive Rate. The rate at which the selected virtual center receives data from the network during the selected time period.
	• Network Utilization, Send Rate. The rate at which the selected virtual center sends data to the network during the selected time period.
Where to go next	Drill down on:

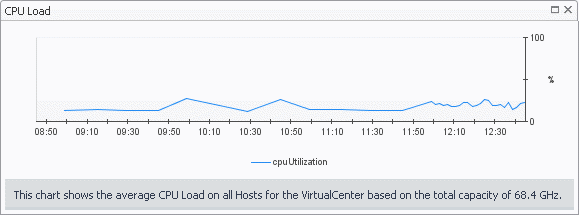

	• CPU Load spinner. Displays the CPU Load dialog box.

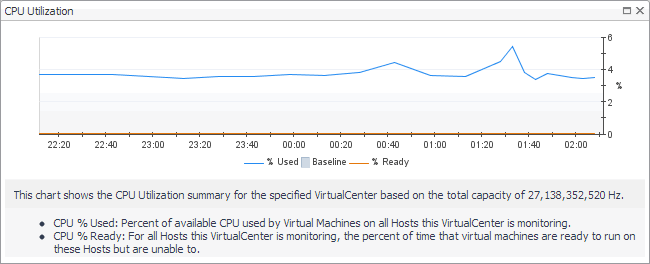

	• CPU Utilization graph. Displays the CPU Utilization dialog box.
	• Disk I/O spinner. Displays the Disk I/O dialog box.
	• Disk Utilization graph. Displays the Disk Utilization dialog box.
	• Memory Utilization graph. Displays the Memory Utilization dialog box.

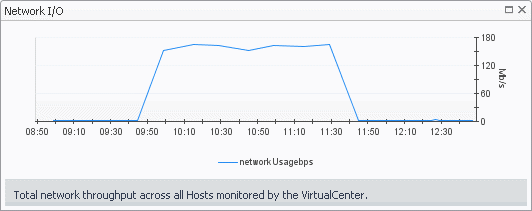

	• Network I/O spinner. Displays the Network I/O dialog box.
	• Network Utilization graph. Displays the Network Utilization dialog box.

Summary (All Virtual Centers) view

The Summary - All Virtual Centers view displays overall resource utilization information for a group of virtual centers and shows the elements that consume the highest amount of system resources.

This view is made up of the following embedded views:

Table 164. Alarms

Description	Lists the alarms generated against the monitored system.
Data displayed	• Alarm Message. An explanation about why the alarm occurred.
	• Severity. Indicates the alarm severity: Warning, Critical, or Fatal.
	• Time. The time at which the alarm was generated.
Where to go next	Drill down on:
	• Alarm Message or Time. Links to the view that shows additional information about the component affected by the alarm.
	• Severity. Displays the Alarm dialog box, showing additional information about the alarm. For more information about alarms in Foglight, see the Foglight User Help.

Table 165. Top CPU Consumers

Description	Shows the top three virtual centers with the highest average CPU utilization.
Data displayed	• Used Hz.The amount of CPU processing speed each of the top three CPU consumers spend on executing system code and user programs, during the selected time range.
	• Virtual Center. The name of the virtual center.
Where to go next	Drill down on:

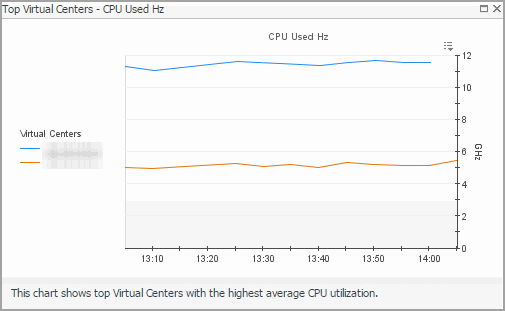

	• Used Hz (in the graph). Displays the Top Virtual Centers -CPU Used Hz dialog box.
	• Virtual Center. For more information, see Summary tab.

Table 166. Top Disk Consumers

Description	Shows the top three virtual centers with the lowest available disk space.
Data displayed	• Rate. The rate at which the top three disk consumers read or write data to the disk during the selected time range.
	• Virtual Center. The name of the virtual center.
Where to go next	Drill down on:
	• Rate (in the graph). Displays the Top Virtual Centers - Disk Transfer Rate dialog box.
	• Virtual Center. For more information, see Summary tab.

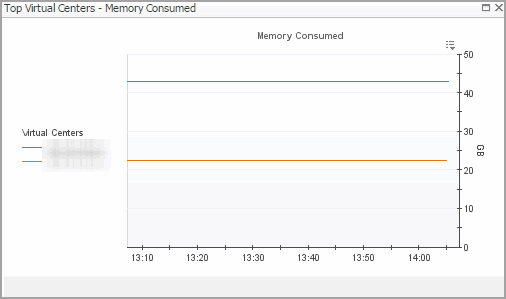

Table 168. Top Network Consumers

Description	Shows the top three virtual centers that are consuming most network bandwidth.
Data displayed	• Rate. The rate at which the top three network consumers transfer data to or from the network during the selected time range.
	• Virtual Center. The name of the virtual center.
Where to go next	Drill down on:

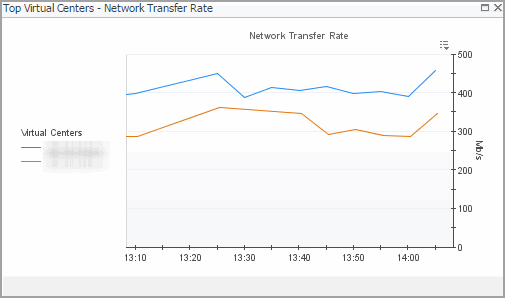

	• Rate. Displays the Top Virtual Centers - Network Transfer Rate dialog box.
	• Virtual Center (in the table). For more information, see Summary tab.

Virtual Centers view

This view is a tree view. It lists the virtual centers that exist in your environment and shows their state.

Selecting the All Virtual Centers node displays overall resource utilization for all virtual centers in your integrated system, and the elements that consume the highest amount of system resources in the Summary (All Virtual Centers) view on the right. Similarly, selecting a server node shows server-specific metrics in the Virtual Center Summary view on the right.
