Foglight for vCloud Director 6.3.0 - User Guide

Getting Started Setting Up Monitoring Agents Investigating Resource Consumption Levels Investigating Object Dependencies Reference

Monitoring Virtual Machines

Virtual machines share many of the characteristics of physical systems (like storage and network interaction), but they do not have direct access to the hardware that is used to process. Each virtual machine runs on a guest operating system (for example, Microsoft® Windows® XP), and is allocated access to a specific set of the server’s resources. This includes the number of processors and the amount of memory it can leverage.

You can monitor the usage of virtual machine resources when you select one or all virtual machines in the Quick View. The information appearing in this view can help you discover potential resource-level issues such as spikes in CPU, memory and disk usage, and to reallocate resources, when required.

1
On the navigation panel, under Dashboards, click vCloud Director > vCloud Environment.
2
On the vCloud Environment dashboard, on the Monitoring tab, click the Virtual Machines tile.

Exploring the Collective Use of All Virtual Machine Resources

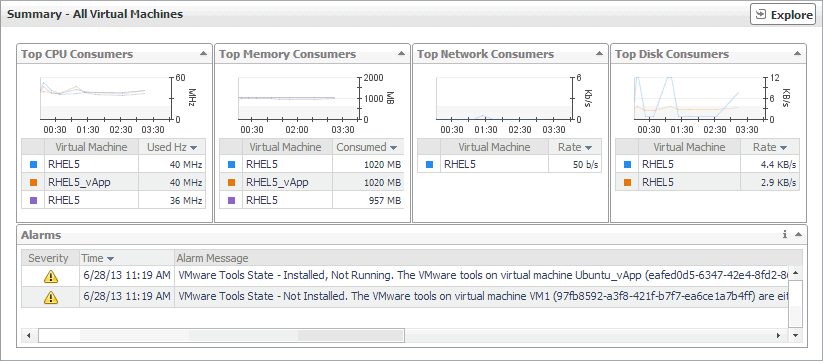

The Summary - All Virtual Machines view displays the levels of resource utilization for all virtual machines, broken down into four simple views. This view identifies the virtual machines that consume the highest amount of system resources. It can help you learn about the resource levels used by all virtual machines, and to identify and prevent potential bottlenecks by reallocating resources where they are most needed.

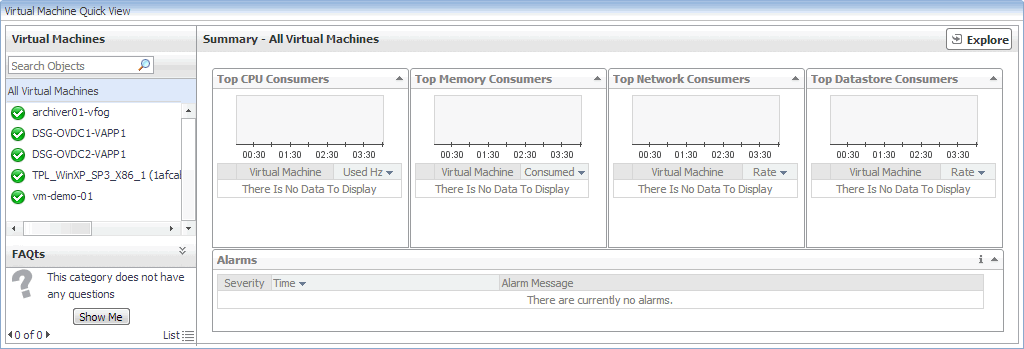

This summary view appears on the right of the Quick View when you select the Virtual Machines tile.

The information appearing on this view is organized into four views: Top CPU, Memory, Network, and Datastore Consumers views.

For information about the All Alarms view also appearing in this summary, see Managing Alarms .

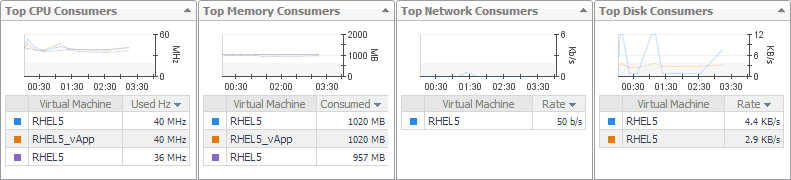

Top CPU, Memory, Network, and Datastore Consumers views

Use these views to identify the virtual machines with the highest consumption of CPU, memory, network, and disk resources.

Foglight for vCloud Director populates these views using the metrics collected by Foglight for VMware. For more information about the metrics appearing in these views, see the Managing Virtualized Environments User and Reference Guide.

The name of the virtual machine.

The amount of CPU processing speed the virtual machine spends on executing system code and user programs, during the selected time range.

The amount of memory the virtual machine consumes during the selected time range.

The rate at which the virtual machine transfers data to or from the network during the selected time range.

The rate at which the virtual machines reads or writes data to the disk during the selected time range.

Exploring the Use of Individual Virtual Machine Resources

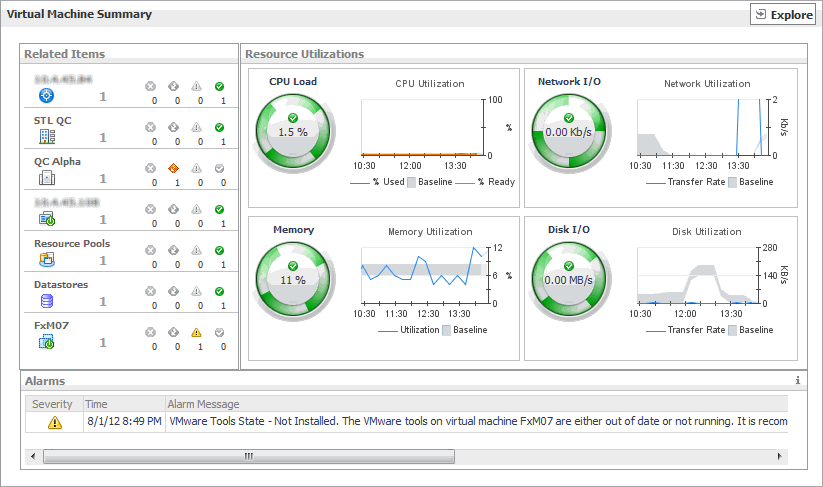

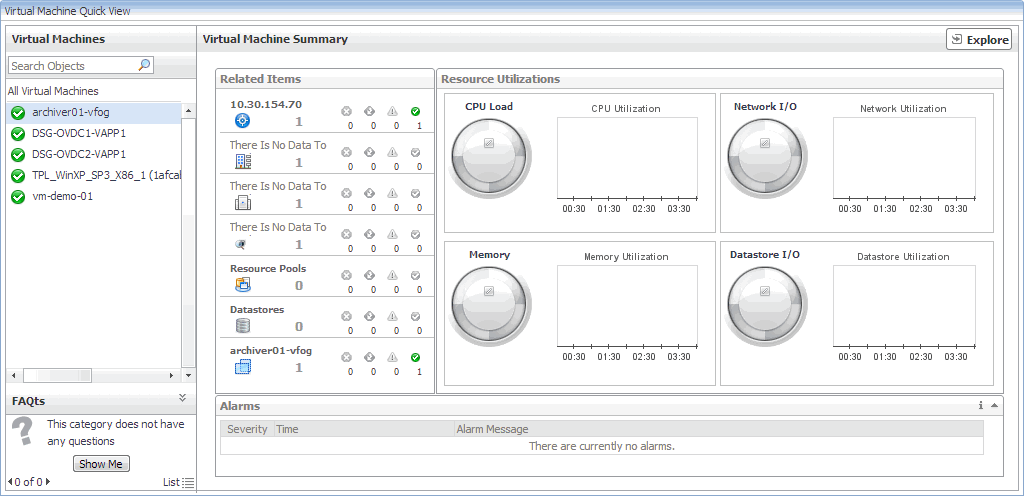

The Virtual Machine Summary view displays the amounts of system resource consumption for a selected virtual machine. This view can help you to identify and prevent potential bottlenecks by reallocating resources where they are most needed. It appears on the right in the Quick View when you select a virtual machine in the Virtual Machines pane.

The information appearing on this view is displayed in the Resource Utilizations view.

For information about the Related Items and All Alarms views also appearing in this summary, see the following :
