Path Property

CLARiiON monitoring using CLI displays a path property.

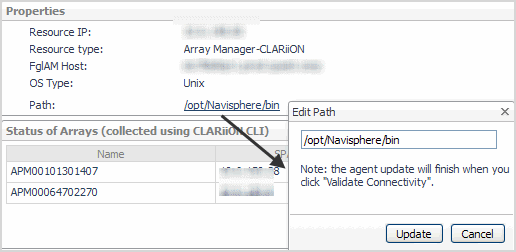

Figure 8. Path Property

To change the path:
1
Click on the path to open Edit Path dialog box.
2
Enter the new path value, or clear the field to reset it to the default.
3
Click Update.
4
Click Validate Connectivity before you close the Edit Agent Properties dialog box.

Status of Arrays

Status of Arrays

This view displays as part of the Status tab only when collecting arrays. The upper Status for Agent panel displays the success/failure in connecting to the array management host.

Each row in this panel displays whether the array is configured for collection, and the status of the last collection attempt to that array. Clicking on the status icon displays the popup that provides error information, if the status was not successful.

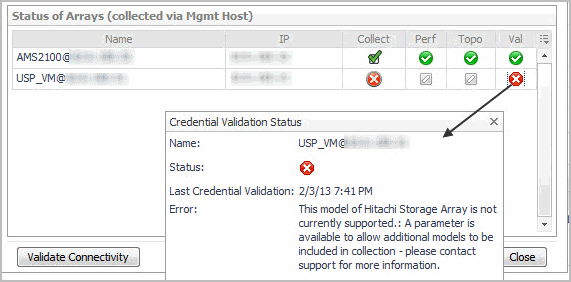

Figure 9. Credential Validation Status

Managing Credentials

This tab displays the credentials for the selected agent.

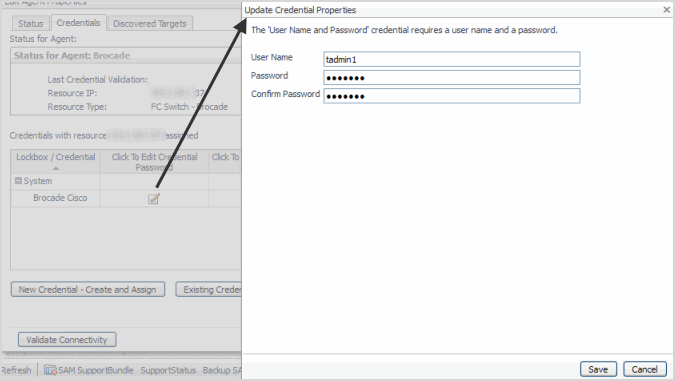

Figure 10. Managing Credentials

From this tab you can create or select credentials. For procedures, see Assigning Credentials. You can also edit the password for a credential.

To delete an obsolete credential, remove obsolete mappings, or to manage lockboxes, use the Credentials dashboard. To access this dashboard, on the navigation panel, under Dashboards, click Administration > Credentials. For help with the dashboard, see the online help.

Editing existing credentials

To edit the password:
1
In the row contain the target credential, click the Edit icon.
2
Modify the credentials as required.
3
Click Save.
4
From the Credentials tab, click Validate Connectivity to ensure that the storage device can be accessed with the changed credentials.
If the test is unsuccessful, an error is reported.
For more information, click the word Error. The Errors Were Found window opens with a description of the errors.
