Foglight for Storage Management Shared 4.6 - Installation Guide

Getting Started Configuring Agents to Monitor Storage Devices
Brocade SAN Switches Cisco SAN Switches Dell Compellent Arrays Dell EqualLogic PS Series Array Groups EMC CLARiiON CX Series Arrays (CLI) EMC CLARiiON, VNX, or VMAX Storage Arrays (SMI-S) EMC Isilon EMC VPLEX Hitachi Data Systems AMS, USP, and VSP HP EVA Storage Arrays HP 3PAR Arrays NetApp Filers Collection Target Support Matrix Configuration Procedures
Managing Agents

Editing existing credentials

To edit the password:
1
In the row contain the target credential, click the Edit icon.
2
Modify the credentials as required.
3
Click Save.
4
From the Credentials tab, click Validate Connectivity to ensure that the storage device can be accessed with the changed credentials.
If the test is unsuccessful, an error is reported.
For more information, click the word Error. The Errors Were Found window opens with a description of the errors.

Removing a resource mapping from the Credentials dashboard

When a credential is used for multiple storage devices, you can remove storage devices from the credential when it is no longer valid.

To remove a resource mapping credential:
1
On the navigation panel, under Dashboards, click Administration > Credentials.
The Credentials view displays.
2
Click Manage Credentials.
3
In the Resource Mappings column, click the storage device you want to remove.
The Update Resource Mapping of Credential page opens.
4
Click the Remove icon for the required resource.
5
When prompted for confirmation, click Confirm. The mapping credential is deleted.
6
Click Save.
The credential is removed from the Manage Credentials view.

Managing Discovered Switches and Arrays

The Discovered Targets tab shows the storage devices that are collected through a management resource. The following tabs are provided:

•
Brocade Discovered Targets Tab.
•
Arrays Discovered Targets Tab.

Brocade Discovered Targets Tab

For Brocade switches, this view displays all FC switch names and IP addresses that are being monitored by this agent through the management host.

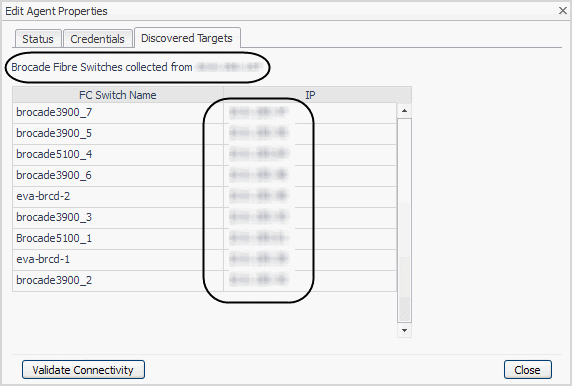

Figure 8. Discovered Targets tab
