Deployment pre-requisites
Welcome to the Foglight for Databases Deployment Guide. This guide provides the pre-requisites for optimal deployment, to ensure the best user experience possible.
This section describes important deployment information required to monitor the leading RDBMS: Oracle®, SQL Server®, Sybase®, and DB2 for LUW.
Architecture
There are three main components:
|
• |
Foglight Management Server and Foglight Database Repository — Responsible for managing, alerting and viewing the collected data. Both components can be set to run on the same machine or reside on separate machines. |
|
• |
Agent Manager — Hosts the monitoring database agents. |
|
• |
SQL PI Repository — An embedded repository which stores the SQL PI data that the monitoring agents collect. Currently available on Oracle and SQL Server monitoring only. |

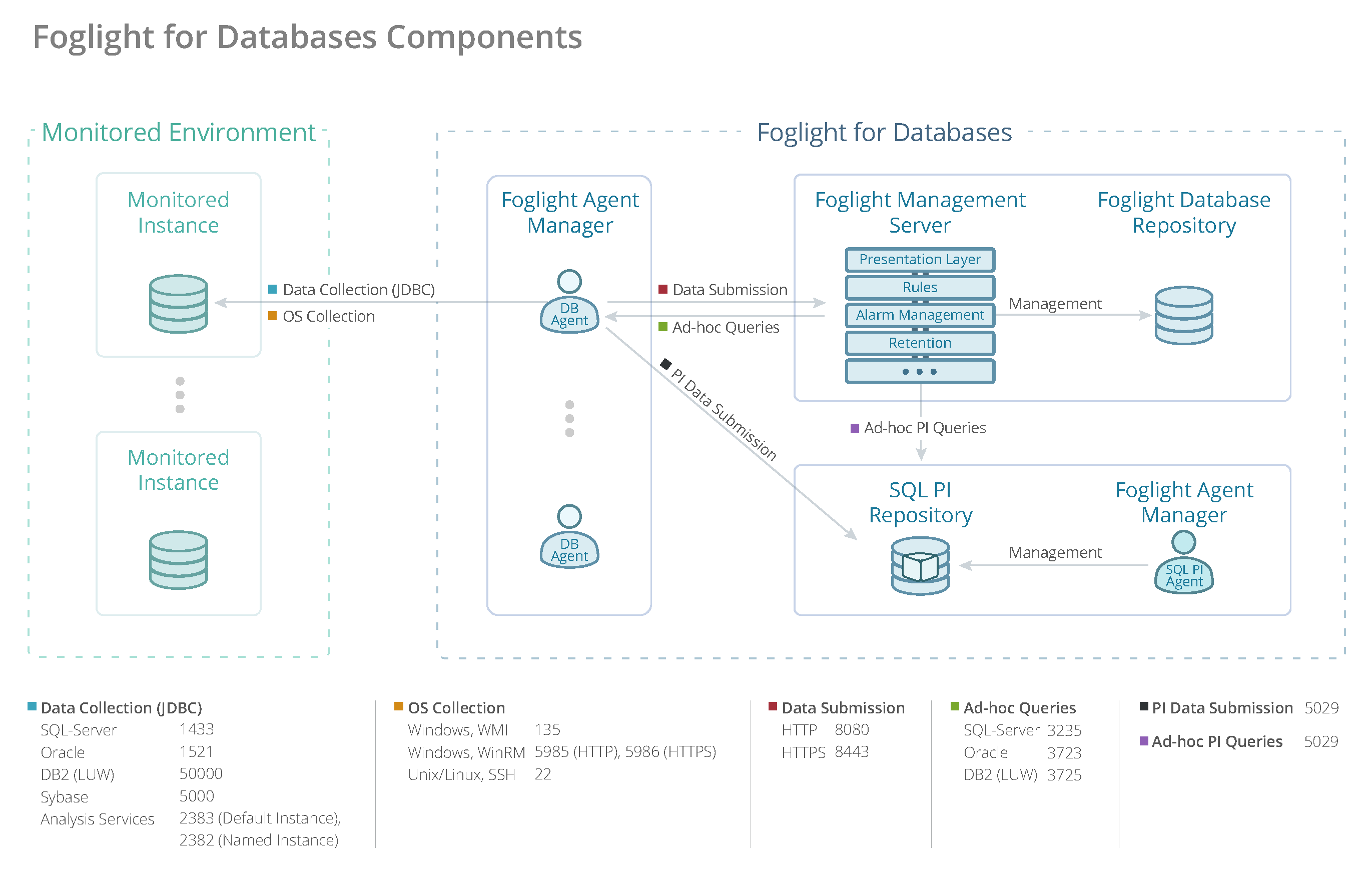

Figure 1. Foglight for Databases Components
Deployment in Centralized vs Distributed
Once the total number of agents exceeds 20, All-in-One installations are no longer supported.
