Foglight for NetVault 1.1 - User Guide

Summary - All Devices view

The Summary - All Device view appears on the right when you select All Devices in the Devices tree view.

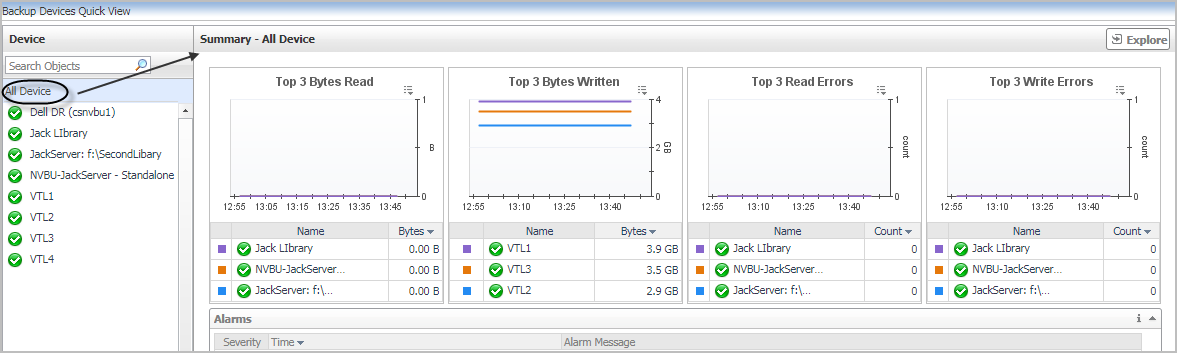

Figure 11. Summary - All Devices view

The Summary - All Devices view displays the following data:

Top 3 Bytes Read: Lists the top three NetVault Backup Devices with the highest amount of Bytes read to the device during the selected time range.
Top 3 Bytes Written: Lists the top three NetVault Backup Clients with the highest amount of Bytes written to the device during the selected time range.
Top 3 Read Errors: Lists the top three NetVault Backup Devices with the highest read errors during the selected time range.
Top 3 Write Errors: Lists the top three NetVault Backup Devices with the highest write errors during the selected time range.
Alarms: Lists the alarms generated against the monitored NetVault environment.

Individual Device Summary view

The Individual Device Summary view appears on the right when you select a client in the Devices tree view.

The Individual Device Summary view displays the following data:

Related Items: Shows the number of Servers/Clients/Drivers/Slots that are affiliated with this NetVault Backup Device.
Library Information: Shows the following physical information about this NetVault Backup Device.
Space Usage: Shows the storage usage of this NetVault Backup Device.
Drives: Shows the detailed information of all drives attached to this NetVault Backup Device.
Slots: Displays the detailed information about all Slots attached to this NetVault Backup Device.

Viewing NetVault Backup Jobs

The Jobs View, which appears after clicking the Jobs tab, shows the Job-related information from the selected NetVault environment. This view consists of the following two tabs:

The All Jobs tab — This tab includes the All Jobs table showing the following details for all Jobs collected from the monitored NetVault environment: name of Job, policy name, Job type, plug-in details of a job, selection set, next runtime, and advanced options.
The Failed Jobs tab — This tab includes the following:
The Failed Jobs line chart shows the number of failed jobs existing in the monitored NetVault environment.
The Failed Jobs table shows the following details for all failed Jobs collected from the monitored NetVault environment: Job title, Policy name, Job created time, Client name, Job type, plug-in name, amount of ID/Instance/Phase, transfer bytes, current status message, and last exit status message.
