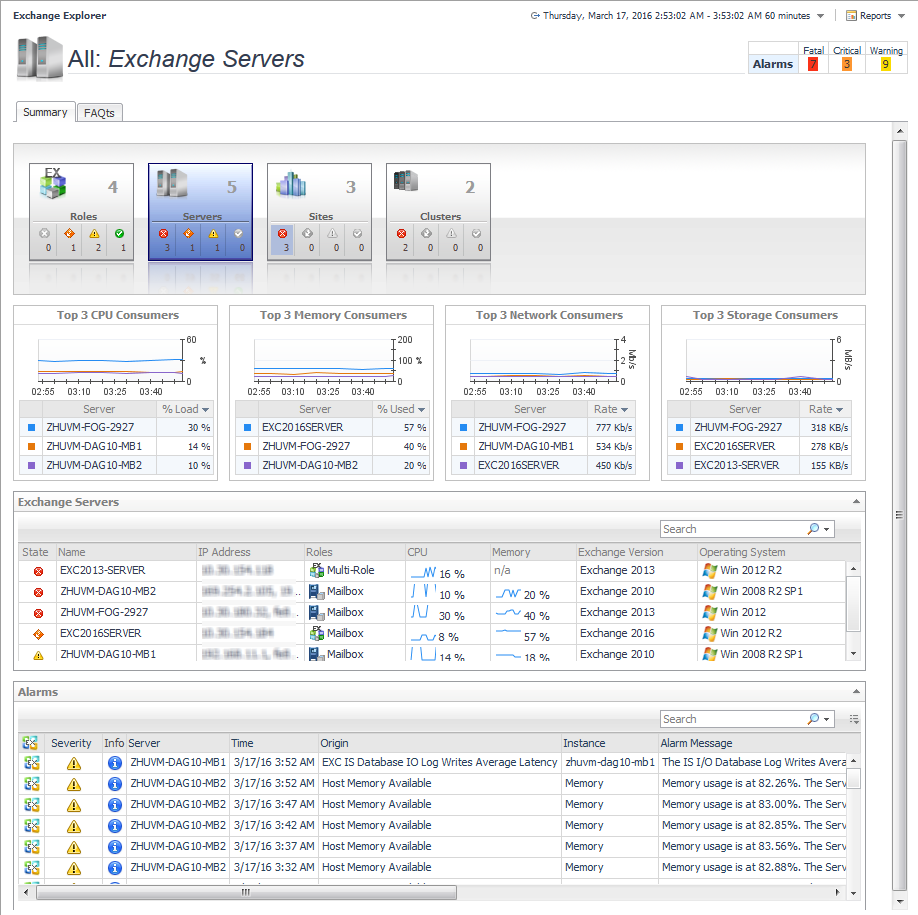

Exchange Servers Explorer Summary (All Exchange Servers) view
|
1 |
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Explorer. |
|
2 |
From the Exchange Infrastructure view (under Dashboards in the navigation panel), select the Servers container object. |
|
NOTE: You can also click the Explorer link on the Exchange Servers Environment Summary (All Exchange Servers) view to display this view. |
The following embedded views are displayed:
Exchange Server Explorer Summary view

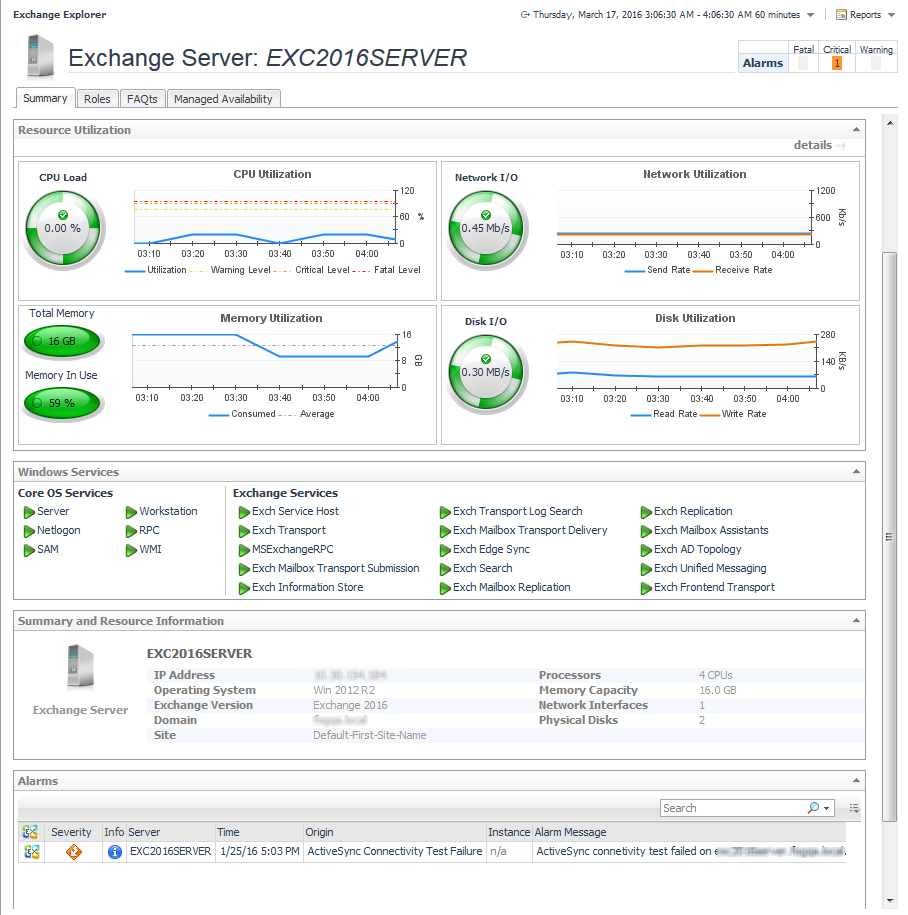

Figure 34. Exchange Server Explorer Summary view
|
1 |
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Explorer. |
|
3 |
Select the Summary navigation tab. |
|
NOTE: You can also click the Explorer link on the Exchange Server Environment Summary view to display this view. |
The following embedded views are displayed:
Resource Utilization Details view

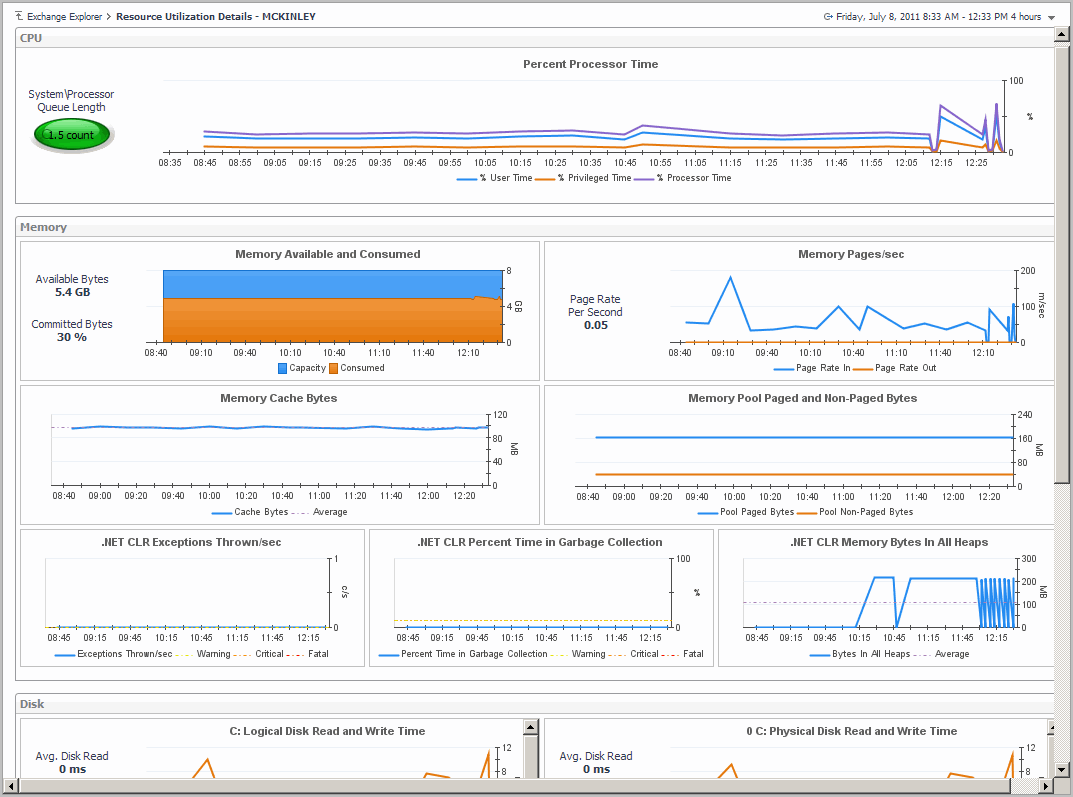

Figure 35. Resource Utilization Details view
|
1 |
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Explorer. |
|
3 |
Select the Summary navigation tab. |
|
4 |
Click the Resource Utilization title or the Details link in the upper right-hand corner of the Resource Utilization view. |
The following embedded views are displayed:
|
• |
Exchange Server Roles view

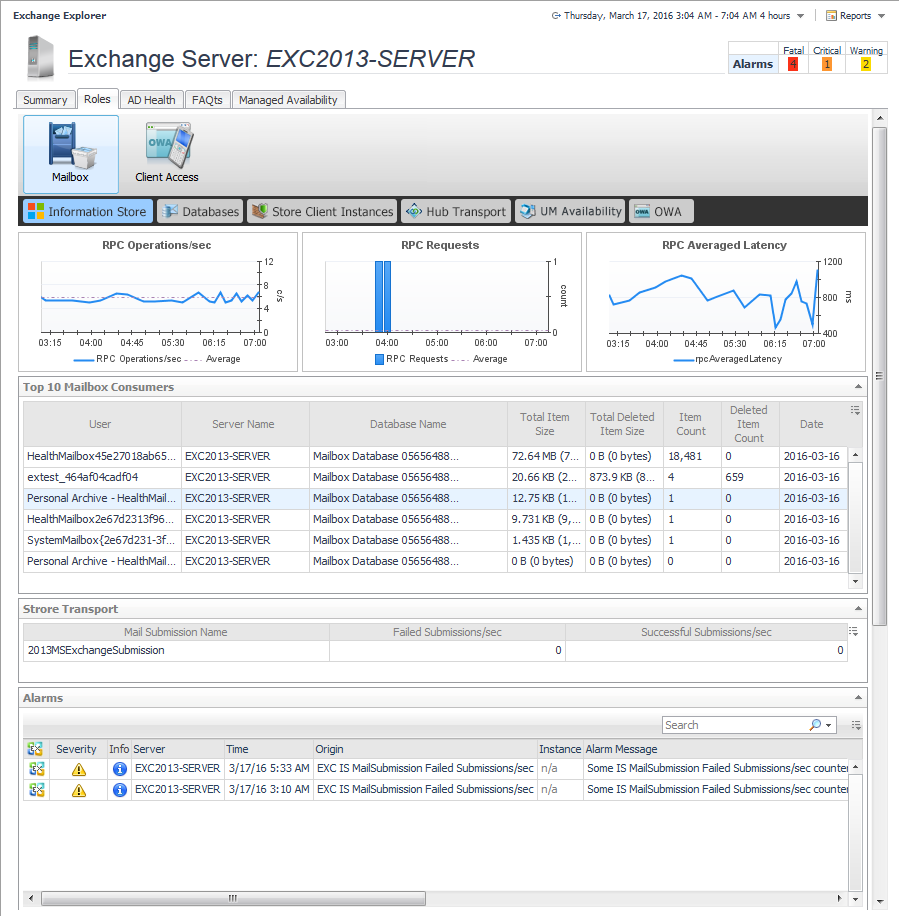

Figure 36. Exchange Server Roles view
|
1 |
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Explorer. |
|
3 |
Select the Roles navigation tab. |
The embedded views in this view are dependant upon the Exchange role selected at the top of the Exchange Server Roles view. For detailed information about the embedded views, see Exchange Server Roles view (reference information).
| |||||||
| |||||||
Available only for Exchange 2007, 2010 client access role.
Available only for Exchange 2013 and 2016 mailbox role.
Available only for Exchange 2013 and 2016 mailbox role.
Available only for Exchange 2013 and 2016 mailbox role.
