Foglight for Citrix XenDesktop and XenApp 6.1.0 - User Guide

Getting started Setting up data collection agents Monitoring the performance of your XenDesktop environment

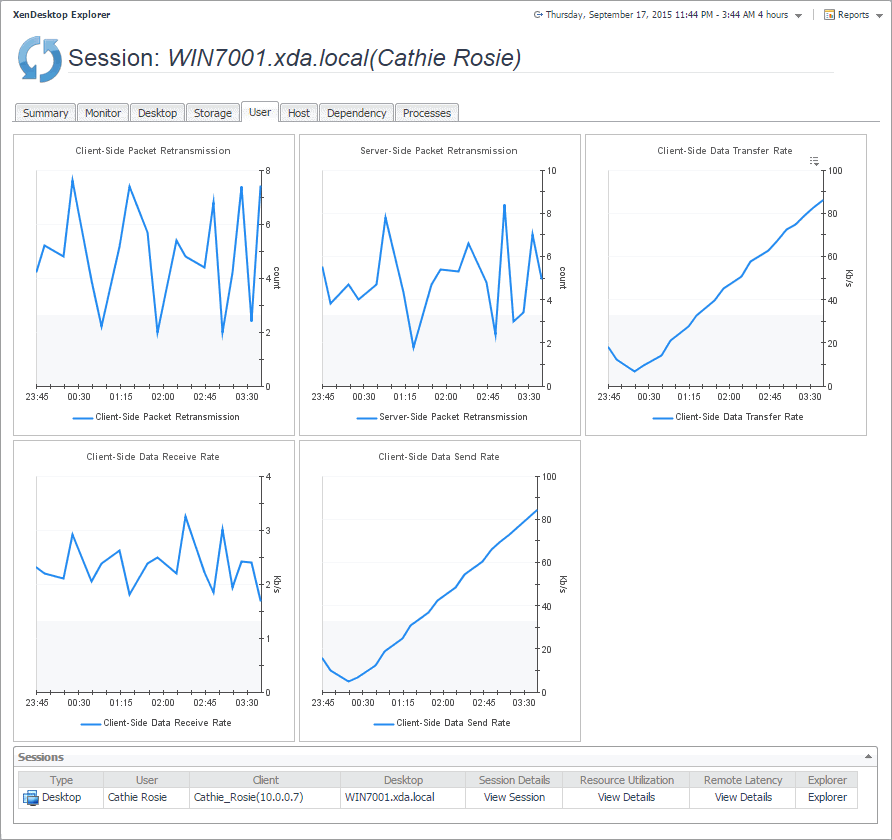

User tab

The User tab displays set of graphs that illustrate the rates of the selected session's data packet retransmission and transfer rates on the client and server side. In general, consistently high values in the graphs may indicates the signs of potential bottlenecks and should be investigated.

The number of times data packets are re-sent from the virtual desktop client after being lost or damaged over the selected time range. High data retransmission rates are typically caused by network congestion.

The number of times data packets are re-sent from the XenDesktop site after being lost or damaged over the selected time range.

The rate at which the virtual desktop client receives and sends data packets over the selected time range.

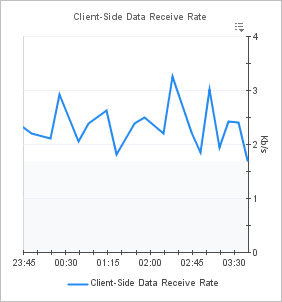

The rate at which the virtual desktop client receives data packets over the selected time range.

The rate at which the virtual desktop client sends data packets over the selected time range.

General information about the session, such as its type (desktop or application), the user running the session, client name, desktop name, additional session details, resource utilization, and latency.

Host tab

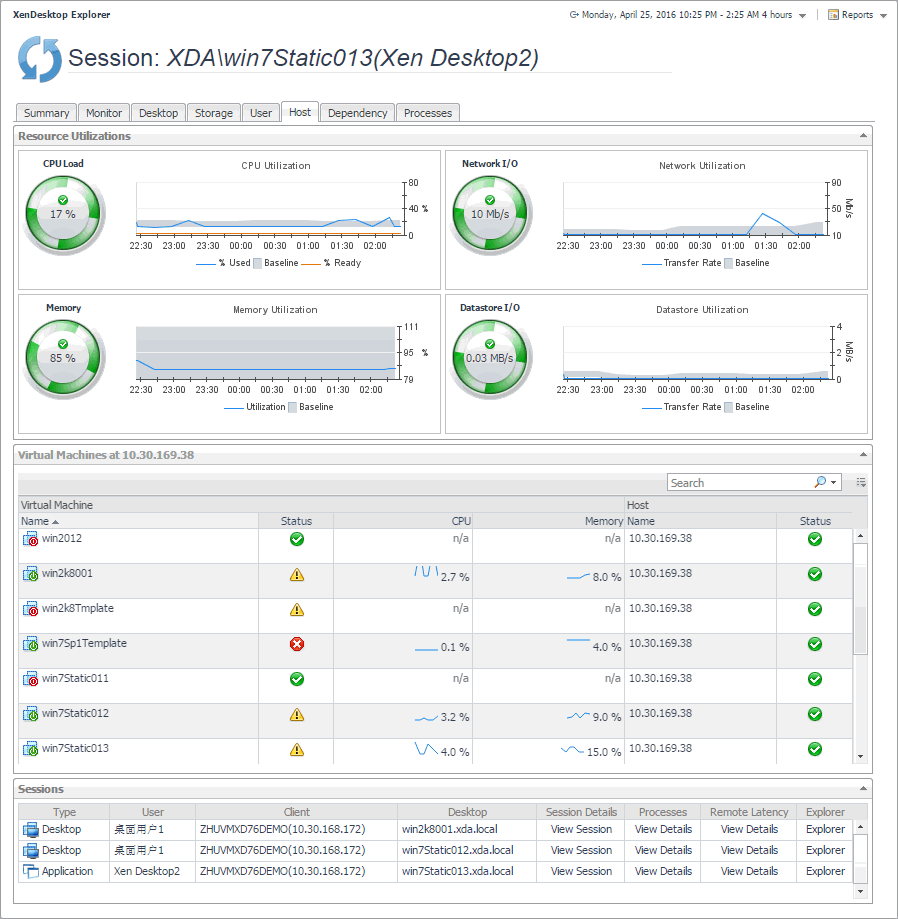

The Host tab shows the usage of system resources for the physical host associated with the selected session. Use it to see the trends in usage of the host’s system resources, to see which virtual desktops and sessions are running on the host, and to look for the signs of compromised performance. For example, high peaks in the memory utilization chart, that drastically exceed historical values could result in performance degradation and should be investigated.

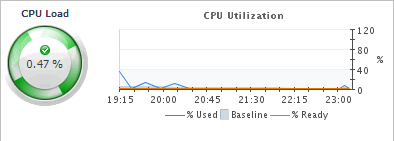

The CPU Load spinner indicates the current percentage of the selected virtual machine’s CPU load, used to execute system code and user programs, based on the total CPU capacity.

The % Used line in the CPU Utilization chart shows the percentage of the CPU utilization used by the virtual machine to execute system code and user programs, during the selected time period.

% Ready displays the percentage of the virtual machine’s CPU resources that are ready to execute system code and user programs during the selected time period.

The Baseline area in the chart indicates the expected CPU utilization range based on historical data.

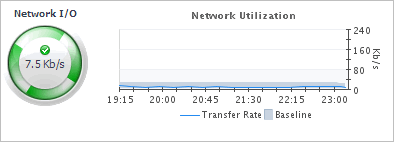

The Network I/O spinner indicates the current rate at which the selected virtual machine transfers data from and to the network.

The Transfer Rate line in the Network Utilization chart shows the rate at which the selected virtual machine receives and sends data to the network during the selected time period.

The Baseline area in the chart indicates the expected network utilization range based on historical data.

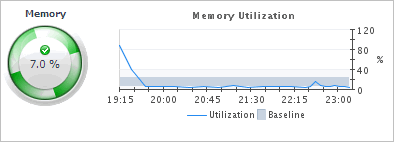

The Memory spinner indicates the current percentage of the average memory usage by the selected virtual machine, based on the total memory capacity.

The Utilization line in the Memory Utilization chart shows the percentage of memory used by the virtual machine during the selected time period.

The Baseline area in the chart indicates the expected memory utilization range based on historical data.

The Datastore I/O spinner indicating the current datastore I/O rate the selected virtual machine utilizes, based on the total datastore capacity.

The Transfer Rate line in the Datastore Utilization chart shows the rate at which the virtual machine reads and writes data to the datastore during the selected time period.

The Baseline area in the chart indicates the expected datastore utilization range based on historical data.

The name of the virtual machine

The current alarm severity of the virtual machine.

A sparkline indicating the percentage of the CPU utilization used by the virtual machine to execute system code and user programs, during the selected time period.

The name of the physical host on which the virtual machine is running.

The highest severity of all alarms generated against the physical host on which the virtual machine is running.

General information about the session, such as its type (desktop or application), the user running the session, client name, desktop name, additional session details, resource utilization, and latency.

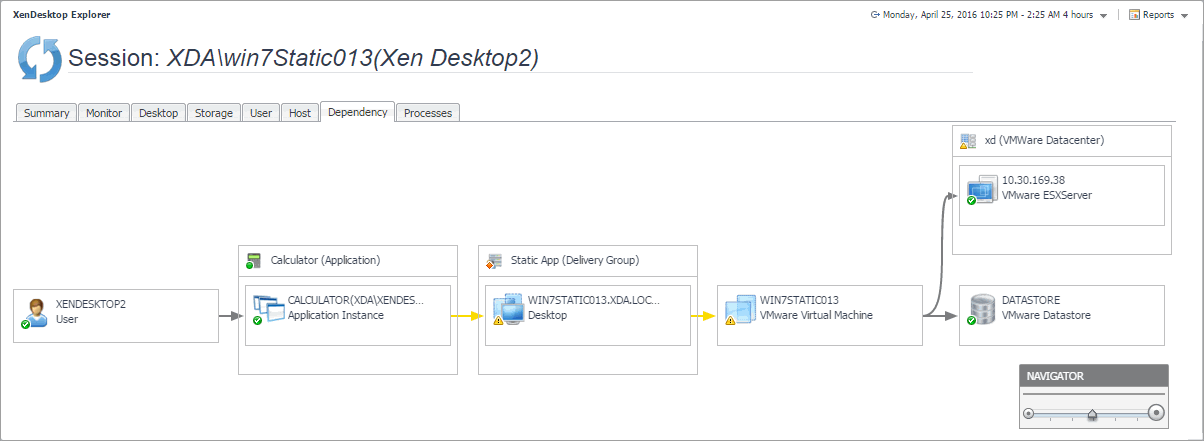

Dependency tab

The Dependency tab helps you understand the dependencies between the XenDesktop components associated with the selected session. The dependency map displays the relationships between the XenDesktop user, Desktop, virtual machine, datastore, and physical host. For complete information about dependency maps, see Viewing object dependencies .

Processes tab

The Processes tab displays an organized view of process information for a selected session.

When you select:

Application session: This tab displays the metrics for all processes associated with the session.
Desktop session: This tab displays the metrics for the top consumers of system resources. You can configure the number of top processes that you want to display using the topN XenDesktop Agent property.

Use this tab it to understand the trends in usage of the process resources, and to look for the signs of compromised performance. For example, high peaks in the memory usage chart, that exceed historical values could result in performance degradation and should be investigated.

If there are any processes that you do not want to monitor, you can add them to the Process Black List in the XenDeskTop Agent properties.

For more information about the topN and Process Black List agent properties, see Configuring XenDesktop Agent Process Configuration properties .

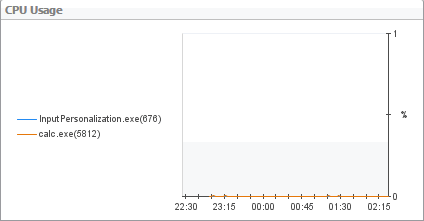

For each identified process, the CPU Usage chart displays the percentage of CPU resources used by the process during the selected time period.

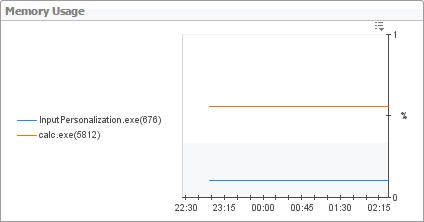

For each identified process, the Memory Usage chart displays the percentage of memory resources that are in use, during the selected time period.

For each identified process, the Process I/O chart displays its data transfer rates, during the selected time period.

For each identified process, the Page Faults chart displays the number of page faults encountered each second, during the selected time period.

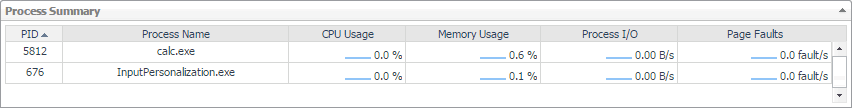

Metrics collected about each identified process.

The process ID.

The name of the process.

The percentage of CPU resources the process currently uses.

The percentage of memory resources the process currently uses.

The I/O data transfer rates for the process.

The number of page faults the process encounters per second.
