Foglight for Active Directory views

Foglight displays monitoring data in views that group, format, and display data. The main types are described below.

Dashboards are top-level views that contain lower-level views. The dashboards supplied with Foglight, as well as those created by users, are accessible from the navigation panel.

Lower-level views can be added to dashboards or can be accessed by drilling down from a dashboard. They receive and display data directly from the Foglight Management Server or from other views. Some views filter or select data that appears in other views in the same dashboard. Some are tree views with expandable nodes for selecting servers, applications or data.

This section provides a description of the lower-level views on Foglight for Active Directory dashboards. The beginning of the section explains which views are available to find specific information for each of the Active Directory® objects:

The latter part of the section provides a detailed description of the information and metrics displayed in embedded views:

Forest views

A forest is the top-level object within the Active Directory® infrastructure and consists of a group of Active Directory domains. The following views are available to monitor the health of your Active Directory forests:

Forests Environment Summary (All Forests) view

The Forests Environment Summary (All Forests) view displays a forest tile for each forest in your Active Directory® environment that provides summary data about the different object types (domains, sites and DCs) within each forest and the number of objects in each of the alarm states (fatal, critical and warning).

A forest tile displays the following information:

1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Environment.

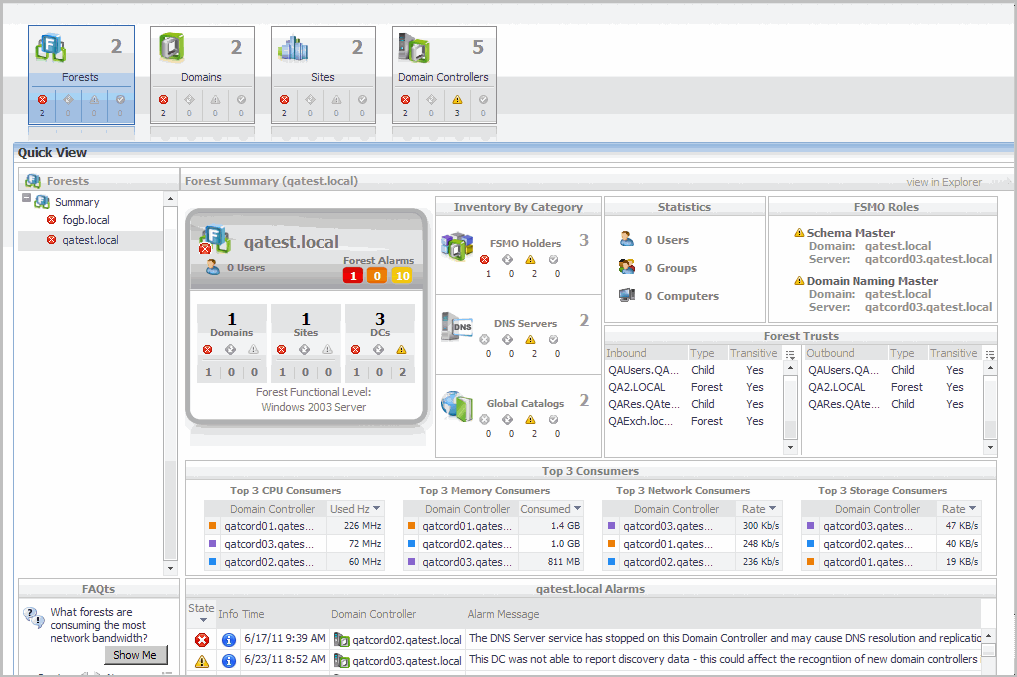

Forest Environment Summary view

The Forest Environment Summary view displays a forest tile for the selected forest, showing the object types within this forest and the alarm states for each. In addition to the forest tile, this display provides more detailed information about the accounts, roles, and trusts in the selected forest. It also shows the top DCs in the forest that are consuming the most computer resources.

1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Environment.

In addition to the forest tile, the following embedded views are displayed in the Forest Summary:
