Foglight Agent Manager 5.9.5 - Foglight Agent Manager Guide

Configuring the embedded Agent Manager Installing external Agent Managers
Understanding how the Agent Manager communicates with the Management Server Deploying the Agent Manager cartridge Downloading the Agent Manager installer Installing the Agent Manager Starting or stopping the Agent Manager process Frequently asked questions
Configuring the Agent Manager Advanced system configuration and troubleshooting
Configuring Windows Management Instrumentation (WMI) Configuring Windows Remote Management (WinRM) UNIX- and Linux-specific configuration
Monitoring the Agent Manager performance Deploying the Agent Manager to large-scale environments

XML Serialization tab

The XML Serialization tab shows graphs indicating the rates and times of message serialization to and from XML for a selected Agent Manager instance.

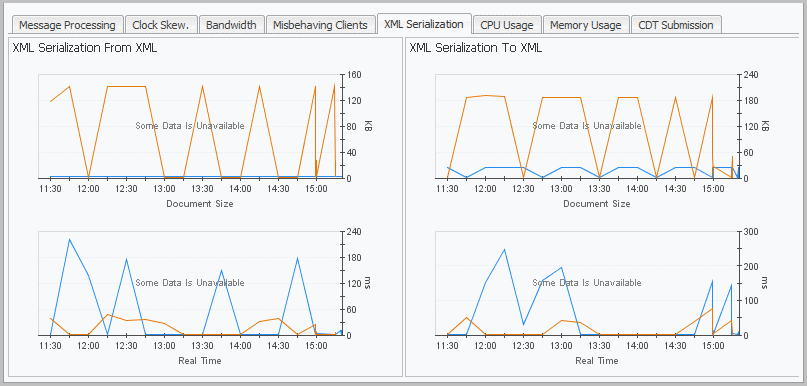

Figure 10. XML Serialization tab

CPU Usage tab

The CPU Usage tab displays the amount of time the CPU associated with a selected Agent Manager instance spends executing active processes and their number. For example, a sudden increase in CPU time may indicate that the user code is running inefficiently or a possible runaway process. Also, high CPU loads sometimes suggest that the host needs more CPU power to run efficiently.

Figure 11. CPU Usage tab

Memory Usage tab

The Memory Usage tab displays the amount of available memory and swap space for a selected Agent Manager instance. For example, a shortage of swap space often suggests a memory shortage, while a decline in the available memory may indicate a memory leaking process.

Figure 12. Memory Usage tab

CDT Submission tab

The CDT Submission tab displays information about the complexity of data that agents collect and submit for Canonical Data Transform (CDT) processing. Excessively large values or sudden increases in this data can result in performance problems.

Figure 13. CDT Submission tab

The following metrics are displayed for each agent:

•
CDT Node Count: The number of internal data nodes produced by the CDT. Typically, there is one node for each topology object and its metrics, and one global (root) node in the tree.
This value takes into consideration the count of the topology object submission events that have associated observations or metrics. Topology objects that do not have any metrics associated with them may go through the CDT without affecting this count. Additionally, one topology object may be submitted several times with different metric values, then counted several times.
•
CDT Value Count: The number of metrics and/or observations produced by the CDT.
•
Max Stack Depth: The depth of the data tree structure submitted by each agent instance. When a topology object in the data submission refers to another topology object, that increases the depth by one. When the second object refers to a third, the depth is increased again.
•
Node Count: The number of nodes in the submission. It is a measure of how large the data submission is.
•
Pre-processing time: The Agent Manager makes two passes over the data submitted by an agent. This is the time spent on the first pass, when the Agent Manager fills in references, validates the submission, calculates missing timestamps, and performs other pre-processing tasks.
•
Processing time: The length of time it takes the Agent Manager to transfer the data submission to the CDT processing engine of the Management Server.
