Quest DR Series system prerequisites

Before adding a Quest DR Series system to a NetVault Backup Server, verify that the following requirements are met:

•
DR appliance must be running on DR OS version 4.0 or higher.
•
Configure the required storage options: On the Quest DR Series system, configure the storage options for the container. For more information about the storage options, see the Quest DR Series system Administration Guide.
•
Configure ports for optimized replication: To perform optimized replication operations across a firewall, configure the following fixed TCP ports on the Quest DR Series system to support RDA replication operations:
•
Port 9920
•
Port 11000
•
Port 10011

Adding a Quest DR Series system

To use a Quest DR Series system for backups and restores, you must first add the device to the NetVault Backup Server. You can use the configuration wizard to add and configure this device.

•
Adding a Quest DR Series appliance
•
Adding a container as a media

Adding a Quest DR Series appliance

To add a Quest DR Series system to the NetVault Backup Server:
1
In the Navigation pane, click Guided Configuration, and then on the NetVault Configuration Wizard page, click Add Storage Devices.
— or —
In the Navigation pane, click Manage Devices, and then click Add Device.
2
On the Add Storage Devices page, select the Quest RDA Device option, and click Next.

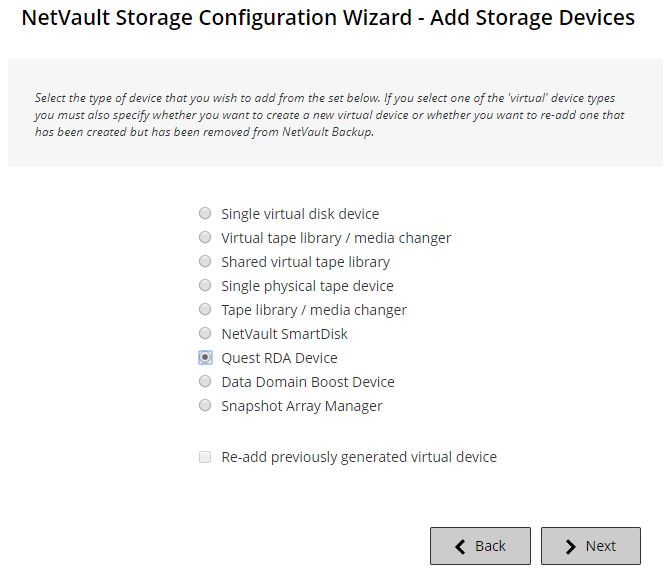

Figure 7. Add Storage Devices page
3
On the Add Quest RDA Device page, provide the following details.

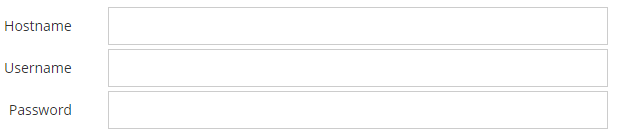

Figure 8. Add Quest RDA Device page

Table 29. Add Quest DR Series system
Option
Description

Hostname

Type the Fully Qualified Domain Name (FQDN) or IP address of the Quest DR Series system.

If the server is unable to resolve the host name, it fails to add the device.

Username

Specify a user account that can be used to log on to the device.

On the Quest DR Series system, only one user account exists, and the user ID for that account is backup_user.

Password

Type the password for the user account.

4
Click Add RDA Device to add the device.

Adding a container as a media

•
Adding a container from the Manage Devices page
•
Adding a container from the Quest DR Device page
Adding a container from the Manage Devices page
1
In the Navigation pane, click Manage Devices, and then click the plus icon corresponding to the DR device.
2
On the Quest DR Device page, verify that the Containers option is selected.
3
For the applicable device, click the corresponding icon in the Actions column, and select Add As A Media.
4
On the Add Media page, provide the following details:

Table 30. Add a container as a media
Option
Description

Storage Group Name

Select the name of the storage group.

Container

Select the name of the storage container.

Block size

The default block size is 512 KiB. The block size cannot be changed for Quest DR Series systems.

Stream Limit

The default value for this setting is 256 streams. This setting applies to all NetVault Backup Servers to which the container is added. If the number of data streams exceeds the defined limit for the container, the Media Manager reports an error (“Device has too many streams”).

You can set the soft stream limit to any value between 1 and 512.

If the container is added to more than one NetVault Backup Server, set the same soft stream limit on all servers.

Force Add

If the device is already added to another NetVault Backup Server with the same name, select the Force Add check box. This option can be useful if you have performed a disaster recovery to rebuild the NetVault Backup Server.

5
Click Add As A Media.
Adding a container from the Quest DR Device page

To add a container as a media, see Adding a container as a media.



*
NOTE: The Quest DR Series systems support three deduplication modes:
•
Passthrough: When this mode is selected, deduplication processing occurs on the Quest DR Series system. The passthrough mode requires at least 200 MB of free memory on the NetVault Backup Client.
•
Optimized: When this mode is selected, deduplication processing occurs on the NetVault Backup Client. The Optimized mode requires at least 4 GB of free memory on the NetVault Backup Client.
•
Auto: When this mode is selected, NetVault Backup decides the deduplication mode (Passthrough or Optimized) based on the criteria for Passthrough and Optimized.
