Replicator 7.4 - Quick Start Guide

Running the Replicator Configuration Wizard

The Replicator Configuration Wizard integrates Metalogix Replicator into your SharePoint farm. To complete the wizard:

If you launched the configuration wizard automatically after installing Replicator, then you can skip this step. To manually launch the configuration wizard, from the Windows Start menu, select All Programs, Metalogix, Replicator, and then Replicator Configuration Wizard.

1.On the Welcome screen, click Next.

2.On the Central Administration Application Pool Credentials screen, enter the password for the farm account.

3.On the Prerequisite Checks screen, the configuration wizard tests your environment to ensure Replicator will run properly. Review the messages and click Next to continue.

4.On the Select Installation Type screen, select Install or upgrade the first Replicator Engine in this farm and click Next. If you have already installed Replicator on another server in this farm, then select the other option instead.

5.On the License Key Information screen, enter your license key and select Activate Online and click Activate and Next. If you wish to Activate Offline, then please see the Metalogix Replicator Advanced Installation Guide for details.
license key information 3

6.On the Replicator Data Folders Configuration screen, select I would like to create a shared network folder on this server and click Next.

7.On the Create Shared Network Folder screen, click Next.

8.On the Select Web Application to Enable screen, select at least two web applications that you wish to enable for replication.  Click Next.

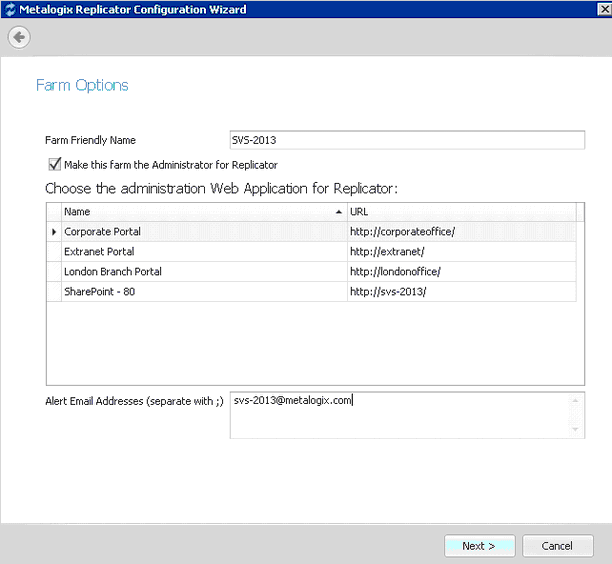

9.On the Farm Options screen you can do the following:

·Give your farm a farm friendly name

·Select whether you would like to make this farm the administrator for Replicator.

·Choose the administration Web Application.

·Specify the email addresses that you would like Replicator email alerts to be sent to.

Click Next.

10.On the Installation Options screen, click Start.

11.Once the Install and Deploy of solutions has completed, click Next.

12.Once the Configuration Confirmation is completed, click Next.

13.Click Finish to complete the configuration wizard.

Installing Replicator on Multiple Farms

If you are configuring replication between two farms, then repeat these steps to install Replicator on the second farm.



This section will guide you through the quickest way to configure Replicator, so that you can begin the evaluation process. This process assumes you are configuring replication between two web applications. The web applications can be on the same farm or on different farms. If the web apps are on different farms you will have to repeat the installation process on the second farm before proceeding with these steps.

Connecting the First Web Application to the Second Web Applications

The following steps will allow you to connect your first web application to your second web application:

1.On the Central Administration Application Management page, under Metalogix Replicator, click Manage replication connections.

2.On the Manage Replication Connections page, click Add Connection.

3.On the Configure Replication Connection page, in the Web Application field, select the correct URL for the first web application.

4.Under Connection Name, enter a name to describe this connection. Since you will create two connections for each pair of web applications, we suggest you indicate the direction of each connection in its name.

5.Under Target Web Application, enter the connection properties and account information for a SharePoint administrator on the second web application. Do not enter anything in the Target Replicator Passphrase field as you did not set a passphrase for the second web application.

6.Click Test Connection to verify the information you entered. If the test succeeds, then continue with the next step. If it does not, then correct the reported error and test the connection again.

Click OK to save this change and return to the Manage Replication Connections page. The new connection is listed on this page.
