Foglight for Virtualization Enterprise Edition 8.9.3 - Foglight for Cloud Migration User Guide

Action bar

The actions bar at the top of the screens contains the following options, Domain switcher and Settings.

Figure 3. Action bar

Domain switcher

Click the domain switcher to switch between VMware environment and Hyper-V environment.

Settings

Click the Settings button. A Settings dialog box opens.

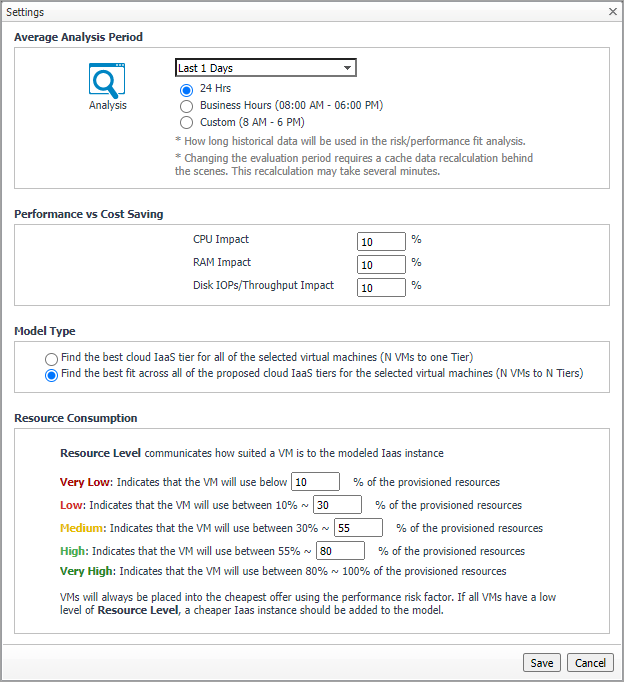

Figure 4. Settings

Specify the Average Analysis Period and select the analysis time range for Cloud Model. The Average Analysis Period includes the following options: Last 1 Day, Last 3 Days, Last 7 Days, Last 30 Days, Last 90 Days, and Last 180 Days. The analysis time range includes the following options: 24 Hrs, Business Hours (08:00 AM - 06:00 PM), and Custom (8 AM - 6 PM).
Very Low: Indicates that the VM will use below 10% of the provisioned resources.
Low: Indicates that the VM will use between 10% - 30% of the provisioned resources.
Medium: Indicates that the VM will use between 30% - 55% of the provisioned resources.
High: Indicates that the VM will use between 55% - 80% of the provisioned resources.
Very High: Indicates that the VM will use between 80% - 100% of the provisioned resources.

Menu bar

The Menu bar contains the following two tabs: Cloud Model and Cloud Migration (Technical Preview).

Figure 5. Menu bar
