Foglight for Virtualization Enterprise Edition 8.9.3 - Foglight for Cloud Migration User Guide

Action bar

The actions bar at the top of the screens contains the following options, Domain switcher and Settings.

Figure 3. Action bar

Domain switcher

Click the domain switcher to switch between VMware environment and Hyper-V environment.

*
NOTE: For Hyper-V environment, only Cloud Model features are supported.

Settings

Click the Settings button. A Settings dialog box opens.

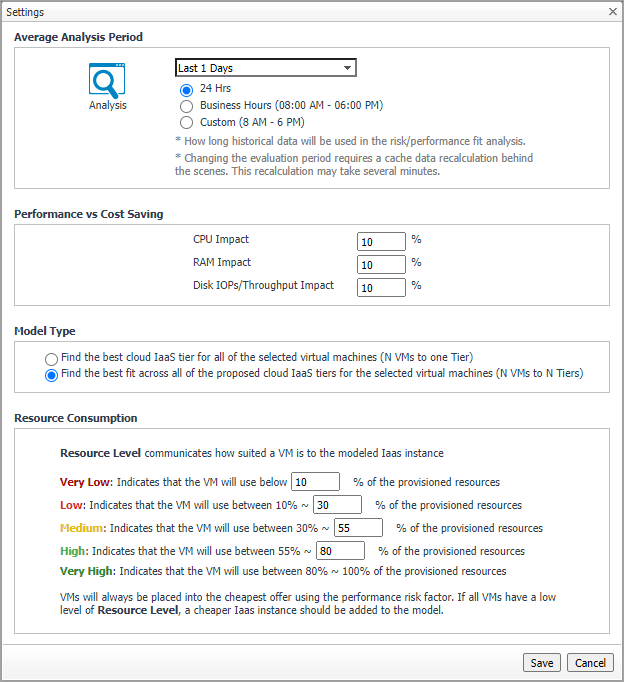

Figure 4. Settings

•
Average Analysis Period
Specify the Average Analysis Period and select the analysis time range for Cloud Model. The Average Analysis Period includes the following options: Last 1 Day, Last 3 Days, Last 7 Days, Last 30 Days, Last 90 Days, and Last 180 Days. The analysis time range includes the following options: 24 Hrs, Business Hours (08:00 AM - 06:00 PM), and Custom (8 AM - 6 PM).
•
Performance vs Cost Saving
Specify the CPU Impact, RAM Impact, and Disk IOPs/Throughput Impact. The default values are 10%.
*
NOTE: If the virtual machines that have been selected for migration must always perform at their peak, enter 0% against each of CPU, Memory, Disk and Network. If Cost is the most important factor and performance is not a concern, enter 100 against CPU, Memory, Disk and Network; that way, no matter how often the virtual machine will exceed the destinations available resources it will always be included in the cloud model recommendation and costs calculation.
•
Model Type
Select either of the following option:
•
Find the best cloud IaaS tier for all of the selected virtual machines (N VMs to one Tier): Move all VMs to the same tier.
•
Find the best fit across all of the proposed cloud IaaS tiers for the selected virtual machines (N VMs to N Tiers): Moves all VMs to different tiers.
•
Resource Consumption
Resource Level communicates how suited a VM is to the modeled IaaS instance. The values can be modified.
•
Very Low: Indicates that the VM will use below 10% of the provisioned resources.
•
Low: Indicates that the VM will use between 10% - 30% of the provisioned resources.
•
Medium: Indicates that the VM will use between 30% - 55% of the provisioned resources.
•
High: Indicates that the VM will use between 55% - 80% of the provisioned resources.
•
Very High: Indicates that the VM will use between 80% - 100% of the provisioned resources.
VMs will always be placed into the cheapest offer using the performance risk factor. If all VMs have a low level of Resource Level, a cheaper IaaS instance should be added to the model.

Menu bar

The Menu bar contains the following two tabs: Cloud Model and Cloud Migration (Technical Preview).

Figure 5. Menu bar
