Exchange Server AD Health view

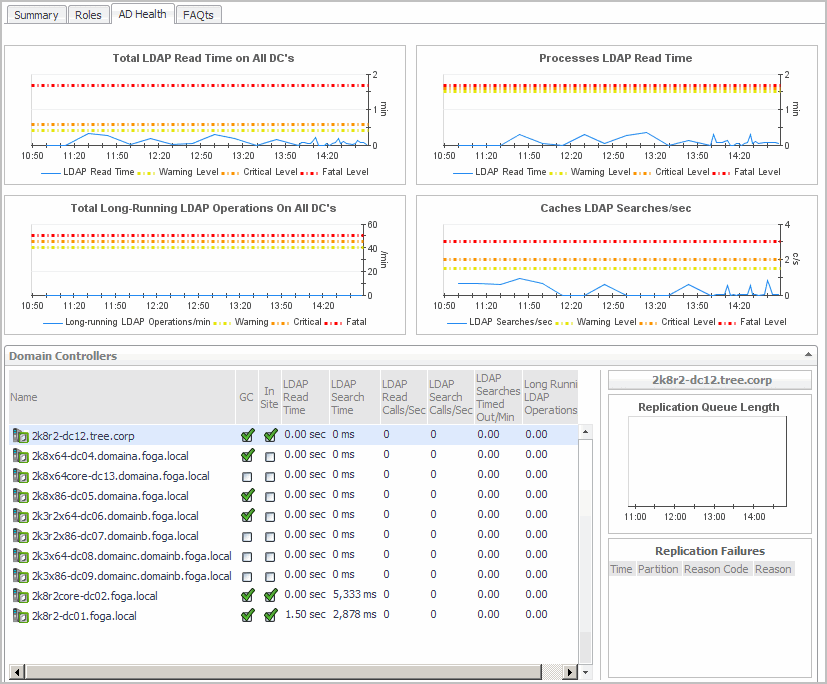

The Exchange Server AD Health view displays performance health information about the DCs in your Active Directory® environment.This view is not available for Exchange 2016.

1
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Explorer.
3
Select the AD Health navigation tab.

The following embedded views are displayed:

Exchange Server Managed Availability view

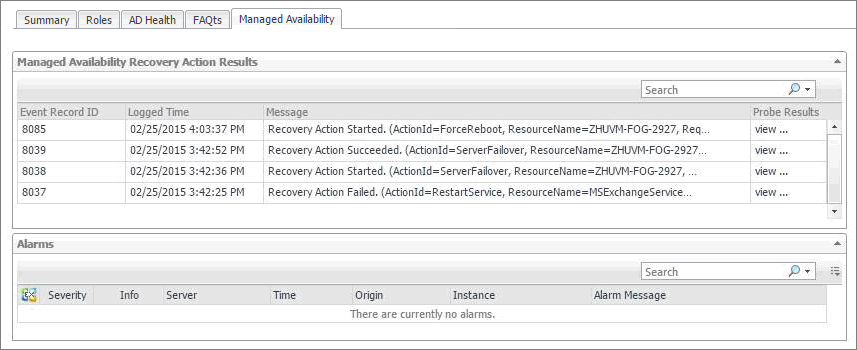

When an individual Exchange 2013 or 2016 server is selected in the Exchange Infrastructure view, the Managed Availability navigation tab appears. The Managed Availability process addresses availability and latency issues or errors by triggering applicable actions. These actions are displayed on the Managed Availability view.

1
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Explorer.
3
Select the Managed Availability navigation tab.
The Exchange Server Managed Availability view appears in the Primary view on the Exchange Explorer dashboard.

This view contains the following embedded view:

Site views

The following views are available to monitor the health of the sites within your Active Directory® environment that are hosting Exchange servers:

Exchange Sites Environment Summary (All Sites) view

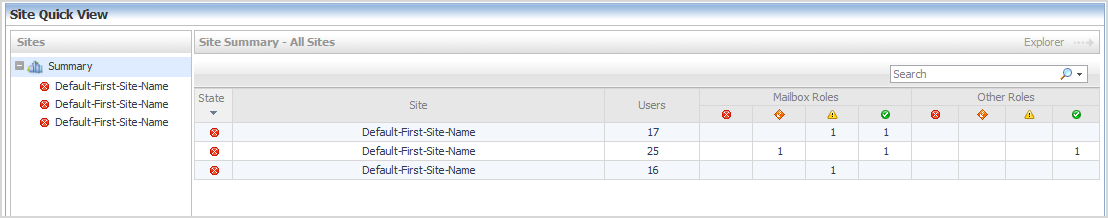

The Exchange Sites Environment Summary (All Sites) view displays a site tile for each site in your environment that is hosting one or more Exchange servers. It provides summary data about the Exchange roles being performed within each site. It also displays the number of roles in each of the alarm states (fatal, critical, and warning) for each site.

1
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Environment.

The following embedded views are displayed:
