Unified Messaging Role Explorer Summary view

The Unified Messaging Role Summary view displays more detailed metrics about the selected Unified Messaging role.

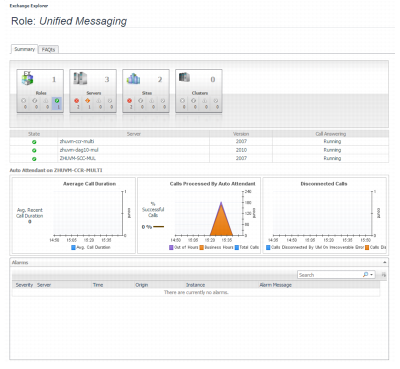

Figure 29. Unified Messaging Role Explorer Summary view

How to get here
1
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Explorer.
2
Use one of the following methods to display this view:
•
From the Exchange Infrastructure view (under the Dashboards in the navigation panel), select Unified Messaging under the Roles object container.
•
From the Roles tile (at the top of the Summary view), click the Roles icon, title or count. On the Roles Inventory dialog, select Unified Messaging.

*
NOTE: You can also access this view by clicking the Explorer link on the Unified Messaging Role Environment Summary view.
The Unified Messaging Role Explorer Summary view appears in the Primary view on the Exchange Explorer dashboard.
Embedded views

The following embedded views are displayed:

•
Role Features State view
•
Unified Messaging Features view
•
Alarms view

Exchange Server views

An Exchange server is any server that has Exchange services installed on it. The following views are available to monitor the health of your Exchange servers:

•
Exchange Servers Environment Summary (All Exchange Servers) view
•
Exchange Server Environment Summary view
•
Exchange Servers Explorer Summary (All Exchange Servers) view
•
Exchange Server Explorer Summary view
•
Resource Utilization Details view
•
Exchange Server Roles view
•
Exchange Server AD Health view
•
Exchange Server Managed Availability view

Exchange Servers Environment Summary (All Exchange Servers) view

The Exchange Servers Environment Summary (All Exchange Servers) view displays information about all monitored Exchange servers in your environment.

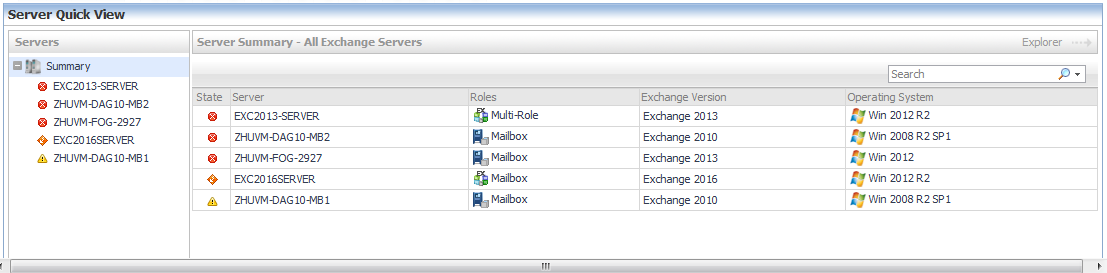

Figure 30. Exchange Servers Environment Summary (All Exchange Servers) view

How to get here
1
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Environment.
2
From the Monitoring tab, select the Servers tile.
3
From the Object Tree view, select Summary.
The Exchange Servers Environment Summary (All Exchange Servers) view appears in the Object Summary view of the Quick View on the Exchange Environment dashboard.
To view metrics and information about an individual server, select the server from the list.
Embedded views

The following embedded views are displayed:

•
Server Listing view

Exchange Server Environment Summary view

The Exchange Server Environment Summary view displays a server tile for the selected Exchange server that lists the Exchange features enabled on the server. In addition to the Exchange server tile, this view displays resource metrics and environment information about the selected Exchange server.


*
NOTE: If the Server Health metrics are not appearing on this view, check the Host Collector setting on the agent’s properties page. The VMware option is selected by default. If Foglight for Exchange, Foglight for Hyper-V, or Foglight for Infrastructure cartridge is being used to collect the host metrics, this setting must be set to the appropriate option.

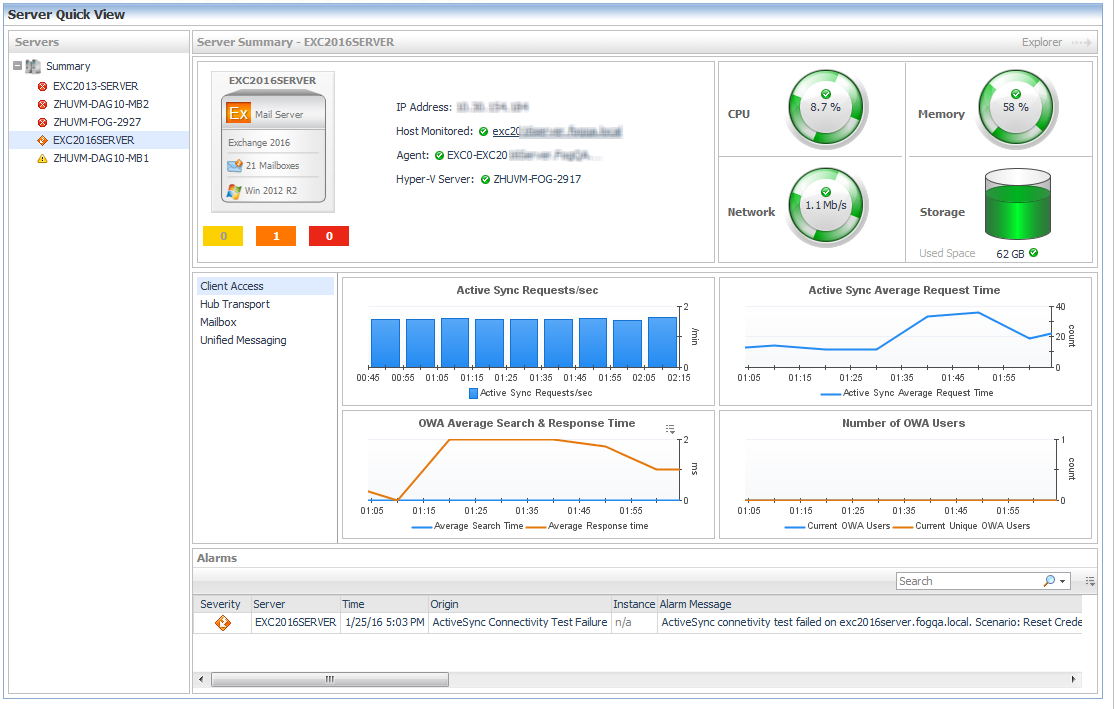

Figure 31. Exchange Server Environment Summary view

How to get here
1
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Environment.
2
From the Monitoring tab, select the Servers tile.
3
From the Object Tree view, select an individual server object.
The Exchange Server Environment Summary view appears in the Object Summary view of the Server Quick View on the Exchange Environment dashboard.

*
NOTE: You can also select a server in the Exchange Servers Environment Summary (All Exchange Servers) view to display this view.
Embedded views

The Exchange Server Environment Summary view displays a server tile for the selected Exchange server.

Figure 32. Server tile

An Exchange Server tile displays the following information:

•
name of the Exchange server
•
current state of the highest alarm on the Exchange server
•
whether the server is a Mail Server or a Role Server
•
Exchange version installed on the server
•
Exchange roles assigned to the server
•
number of mailboxes on the Mail Server
•
Windows® operating system running on the Exchange server

In addition to the Exchange server tile, the following embedded views are displayed:

•
IP Address view
•
Host Monitor view
•
Agent State view
•
Server Health view
•
Exchange Roles Server Summary view
•
Alarms view
