Instance Homepage

The DB2 Database Instance Homepage displays a summary view of the instance health. You drill down further to carry out root cause analysis of various performance issues.

To access the Instance Homepage, drill down to Databases Dashboard > Instance Homepage .

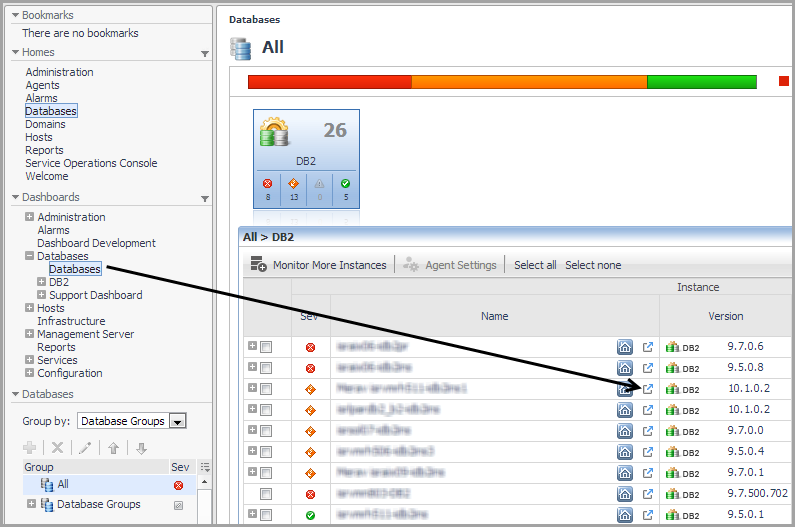

Figure 6. Instance Homepage button

Figure 7. Instance Homepage

For more information, see Instance home page.

Database Homepage

The Database Homepage provides an overall view of the status of the selected entity for the selected time range, as well as drill-downs, which provide a visual representation of the status and performance of the monitored DB2 environment. These drill-downs allow you to determine any potential bottlenecks in database performance.

To access the Database Homepage, navigate through Databases Dashboard > Instance Homepage > Select Database, and then select a database name.

You can also access the Database Homepage for a database from the Databases Dashboard by clicking the icon at the far right of the database name cell and then selecting Database Homepage from the menu that appears.

*
NOTE: The Infrastructure agent configuration indicator at the bottom right of the Homepage notifies if the Infrastructure agent is installed and configured for the selected instance. This agent enables OS monitoring of the hosts where the DB2 LUW instance resides.

For information about the various sections appearing on this Homepage, see Database home page .

Using the Database Homepage Toolbar

The Database Homepage toolbar allows you to drill down and view a variety of DB2 database metrics.

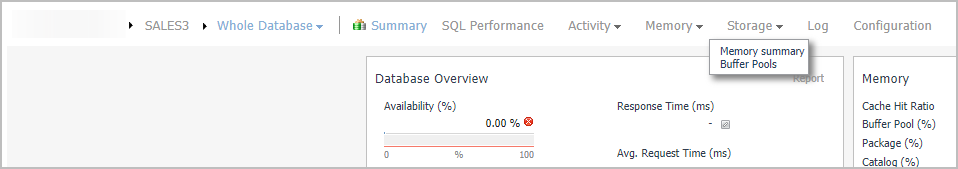

Figure 8. Database Homepage toolbar

The following toolbar options are provided:

•
Summary — goes back, from any of the drill-downs, to the Database homepage.
•
SQL Performance — provides the ability to investigate the activity and resource consumption of a selected database or database partition. For more information on this dashboard, see SQL Performance .
•
Activity — allows you to explore SQL metrics using the following panels:
•
Top Tables Panel
•
Locks Panel
•
Current Agents Panel
•
User-defined Collections Panel
•
Memory — allows you to explore database memory using the following panels:
•
Memory Panel
•
Buffer Pools Panel
•
Storage — allows you to explore DB2 storage using the following panels:
•
Tablespaces Panel
•
Tablespaces Bufferpool Activities Panel
•
Log — allows you to explore the Diagnostic Log Panel.
•
Configuration — allows you to explore the Initialization Parameters Panel.

Activity Panel

Top Tables Panel

Use the Top Tables panel to help you monitor the performance of database tables.

To access the Top Tables panel, navigate through Databases Dashboard > Instance Homepage > Database Homepage, and then choose Activity > Top Tables.

For more information about this panel, see Top Tables .

Locks Panel

The Locks panel displays information about current locks and historical locks held in the selected database.

To access the Locks panel, navigate through Databases Dashboard > Instance Homepage > Database Homepage, and then choose Activity > Locks.

You can also access the Locks panel for a database from the Databases Dashboard by clicking the icon at the far right of the database name cell and then selecting Locks from the menu that appears.

For more information, see Locks.

Current Agents Panel

This panel provides metrics on agent workload, activity, and background operations.

To access the Current Agents panel, navigate through Databases Dashboard > Instance Homepage > Database Homepage, and then choose Activity > Current Agents.

You can also access the Current Agents panel for a database from the Databases Dashboard by clicking the icon at the far right of the database name cell and then selecting Current Agents from the menu that appears.

For more information, see Current Agents.

User-defined Collections Panel

The User-defined Collections panel allows viewing the customized collections, which were created via the User-defined Collections page in the Administration dashboard, either during the last sample (Last Snapshot) or plotted over the specified time range (Selected Period).

To access the User-defined Collections panel, navigate through Databases > Instance Homepage > Database Homepage, and then choose Activity > User-defined Collections.

For more information, see User-defined Collections.
