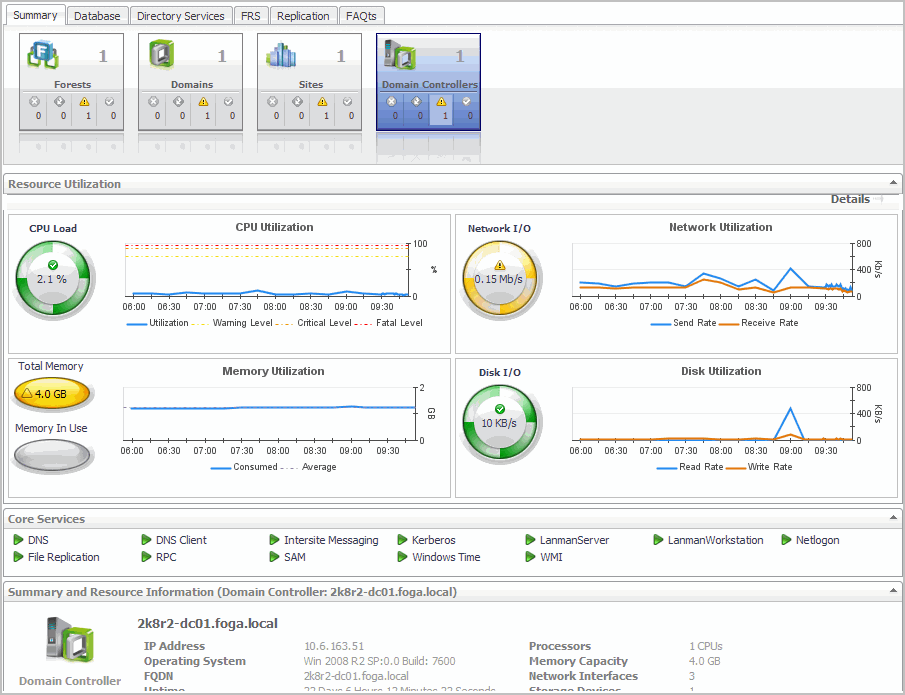

Domain Controller Explorer Summary view

The Domain Controller Explorer Summary view displays more detailed resource metrics and information about the selected DC.

1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
From the Domain Controllers tile (at the top of the Summary view), select the Domain Controllers icon, title or count. On the Domain Controllers Inventory dialog, select an individual DC.
3
Select the Summary navigation tab.

In addition to the current domain controller alarms, this view is made up of the following embedded views:

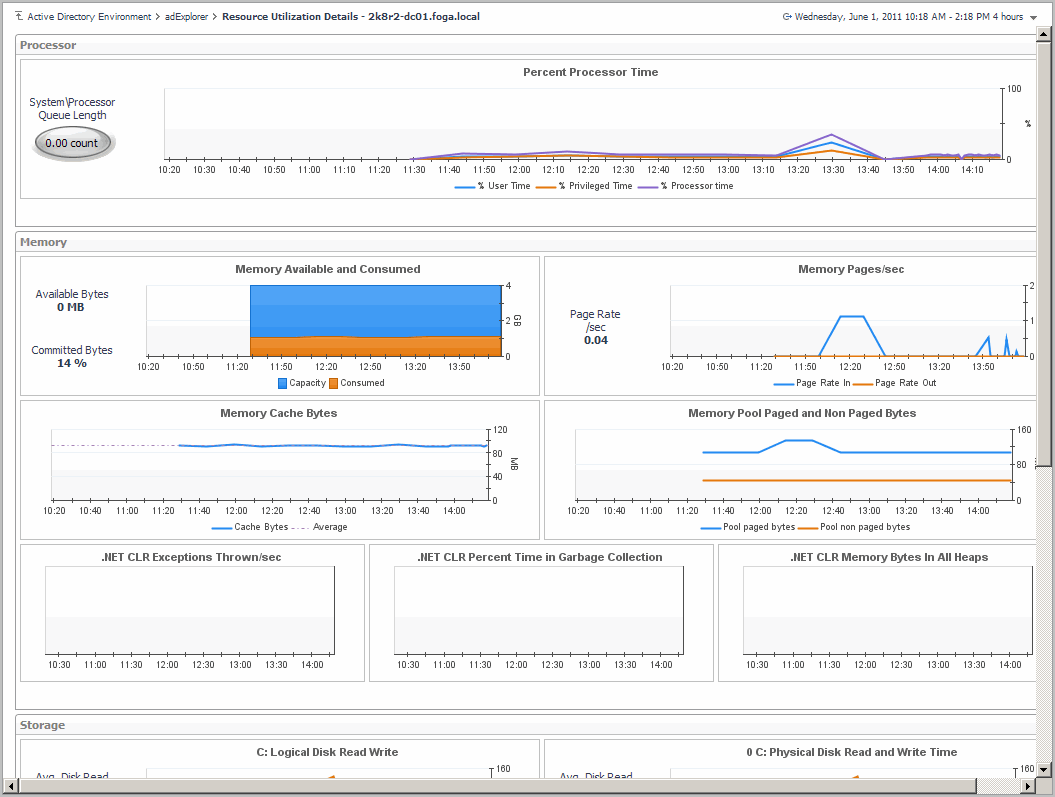

Resource Utilization Details view

The Resource Utilization Details view displays more detailed information about the selected DC’s resources.

1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
From the Domain Controllers tile (at the top of the Summary view), select the Domain Controllers icon, title or count. On the Domain Controllers Inventory dialog, select an individual DC.
3
Select the Summary navigation tab.
4
Click the Resource Utilization title or the Details link in the upper right-hand corner of the Resource Utilization view.

This view is made up of the following embedded views:

Domain Controller Database view

The Domain Controller Database view displays performance health information about the selected DC’s database.

1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
From the Domain Controllers tile (at the top of the Summary view), select the Domain Controllers icon, title or count. On the Domain Controllers Inventory dialog, select an individual DC.
3
Select the Database navigation tab.

This view is made up of the following embedded views:

NOTE:

Domain Controller Directory Services view

The Domain Controller Directory Services view displays performance health information about the selected DC’s directory service processes.

1
From the Foglight navigation panel, select Dashboards > Active Directory > Active Directory Explorer.
From the Domain Controllers tile (at the top of the Summary view), select the Domain Controllers icon, title or count. On the Domain Controllers Inventory dialog, select an individual DC.
3
Select the Directory Services navigation tab.

This view is made up of the following embedded views:
