Foglight Evolve 6.1.0 - Foglight Evolve Network Topology Guide

Overview

Overview of interaction between Foglight components

Foglight® consists of the Foglight Management Server (FMS), a database repository, and a set of cartridges. Foglight relies on a browser-based user interface and is controlled via role assignments in the Foglight security model. The Foglight Web application runs in an Apache Tomcat® server. Users interact with the FMS Web application via an HTTP or HTTPS connection.

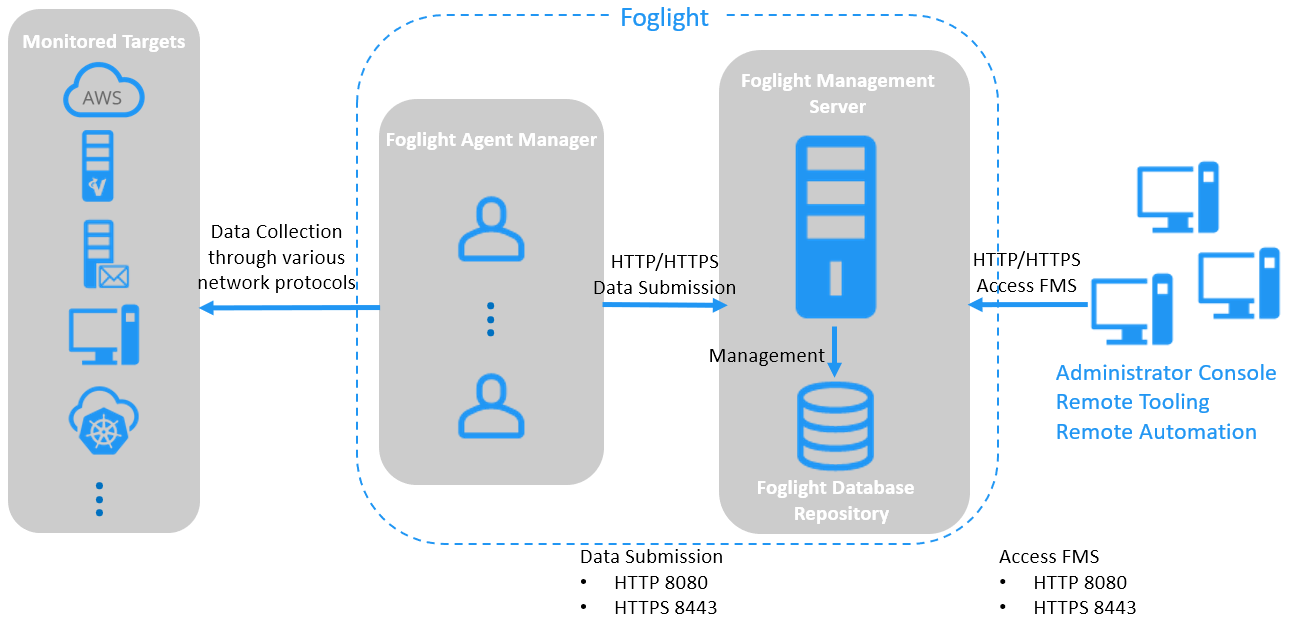

Figure 1. Foglight Components Overview

Overview of interaction between Foglight components

Overview

Foglight® consists of the Foglight Management Server (FMS), a database repository, and a set of cartridges. Foglight relies on a browser-based user interface and is controlled via role assignments in the Foglight security model. The Foglight Web application runs in an Apache Tomcat® server. Users interact with the FMS Web application via an HTTP or HTTPS connection.

Figure 1. Foglight Components Overview

Foglight Management Server default port assignments



The Foglight installation process allows you to configure port assignments. The default ports are displayed during installation.


Table 1. FMS default port assignments
Port Name
Port Number
Outgoing/Incoming

Embedded DB

TCP 15432

Outgoing

HTTP

TCP 8080

Incoming

HTTPS

TCP 8443

Incoming

High Availability

UDP 45566

TCP 7800

Incoming/Outgoing

Federation RMI

TCP 1099

Incoming/Outgoing

Federation RMI Service

TCP 4444

Incoming/Outgoing

NOTE: If your Federation Master Server is installed behind the firewall, you must configure this port on the Federation Child Server to set up the connection with the server.

QP5

TCP 8448

Incoming/Outgoing

High Availability (HA) refers to running a secondary instance of Foglight as a failover backup server (redundant mode). Foglight listens to the multicast port (45566) only when configured for HA mode.

Foglight default ports


Table 2. Ports used when Foglight is installed with an external database
Port Name
Port Number
Outgoing/Incoming

External PostgreSQL®

5432

Outgoing

Microsoft® SQL Server®

1433

Outgoing

Oracle®

1521

Outgoing

MySQL™

3306

Outgoing




Table 3. Agent adapter ports used when configuring the Foglight Administration Console
Port Name
Port Number
Outgoing/Incoming

Agent Manager

8080

Incoming

Agent Manager over SSL

8443

Incoming

Java EE Technology Agent

41705

Incoming
