Enterprise Reporter 3.6 - Port Requirements

Table of Contents

Quest® Enterprise Reporter 3.6Port Requirements

Quest® Enterprise Reporter 3.6Port Requirements

Quest® Enterprise Reporter 3.6
Port Requirements

This document outlines the ports required by Enterprise Reporter.


	NOTE: Azure Active Directory is now Microsoft Entra ID.

Port Requirements

For the Enterprise Reporter components to communicate, some ports must be open.

•

The default port used for communication between the server and the consoles is 7738. This port is also used by the nodes to access the server. The port is configured during installation of the server, and is required in the connection dialog box for both the Configuration Manager and the Report Manager.

You can view the port currently in use on the Information page in the Configuration Manager, and the System Information tab in the Report Manager.

•

The default port used for communication from the Enterprise Reporter server to the nodes is port 7737. This port may be configured during installation.

The following figure shows the ports that are used by the various Enterprise Reporter components.

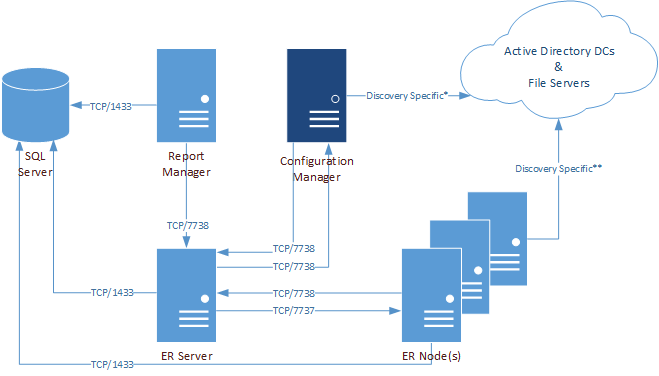

Figure 1. Ports used by Enterprise Reporter components.

*For more information on ports used when creating a discovery, see Table 1.

**For more information on ports used during data collections, see Table 2.

The following table shows the ports used by all of the Enterprise Reporter components.

Table 1. Ports used by Enterprise Reporter components
			Configuration Manager	Report Manager	SQL Server	ER Server	ER Nodes
Application	Port	Type	Components
FTP	20, 21	TCP		X
SMTP	25	TCP	X	X		X
WINS / NetBiOS Name Resolution	42	TCP UDP				X
DNS FQDN Resolution	53	TCP UDP	X	X		X
Kerberos	88	TCP UDP	X			X
RPC Service & Endpoint Mapper / WMI	135	TCP UDP	X
NetBIOS Name Service	137	UDP				X
NetBIOS Datagram (browsing)	138	UDP	X
LDAP	389	TCP UDP	X
SQL	1433	TCP		X	X	X	X
SQL Server Browser Service	1434	TCP UDP	X	X
Enterprise Reporter Node	7737	TCP				X	X
Enterprise Reporter Server	7738	TCP	X	X		X	X

The following table outlines the ports used by all of the Enterprise Reporter discoveries.

Table 2. Ports used by Enterprise Reporter discoveries
			Active Directory	Microsoft Entra ID	Azure Resource	Computer	Exchange	Exchange Online	File Storage Analysis	Microsoft Teams	NTFS	OneDrive	Registry	SharePoint Online	SQL Server
Application	Port	Type	Discoveries
WINS / NetBiOS Name Resolution	42	TCP UDP	X			X	X		X		X		X
DNS FQDN Resolution	53	TCP UDP	X			X	X		X		X		X
HTTP	80	TCP		X	X		X*	X		X		X		X
Kerberos	88	TCP UDP	X			X	X*		X		X		X
RPC Service & Endpoint Mapper / WMI	135	TCP UDP				X			X		X		X		X
NetBIOS Name Service	137	UDP	X			X	X		X		X		X
Remote Registry	139	TCP				X	X		X		X		X
ICMP						X			X		X		X
LDAP	389	TCP UDP	X			X	X		X		X		X
HTTPS	443	TCP UDP		X	X					X		X		X
SMB / Remote Registry	445	TCP	X			X			X		X		X		X
LDAP Secure	636	TCP	X
DCOM on XP/2003 and below (uses an open port in this range)	1024 - 5000	TCP UDP				X	X		X		X				X
SQL	1433	TCP	X	X	X	X	X	X	X	X	X	X	X	X	X
SQL Server Browser Service	1434	UDP													X
LDAP GC	3268	TCP	X				X
WinRM	5985 5986	TCP UDP					X	X
DCOM on Vista/2008 and above (uses an open port in this range)	49152 - 65535	TCP UDP		X	X	X	X		X		X				X

*Exchange 2013 and higher

The following figures outline the ports used by the Enterprise Reporter discoveries.

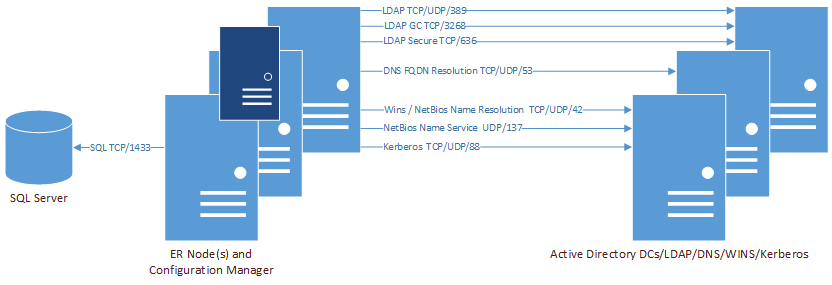

Figure 2. Ports used by Active Directory collections

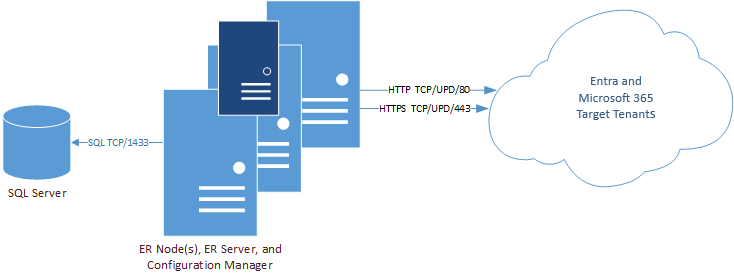

Figure 3. Ports used by Microsoft Entra ID and Microsoft 365 collections (Exchange Online, MS Teams, OneDrive, and SharePoint Online)

Additional ports for Microsoft Entra ID and Microsoft 365 discoveries to be set on the Node:

•

Open ports 49151-65535 TCP Outbound

•

Open ports 49151-65535 UDP Outbound

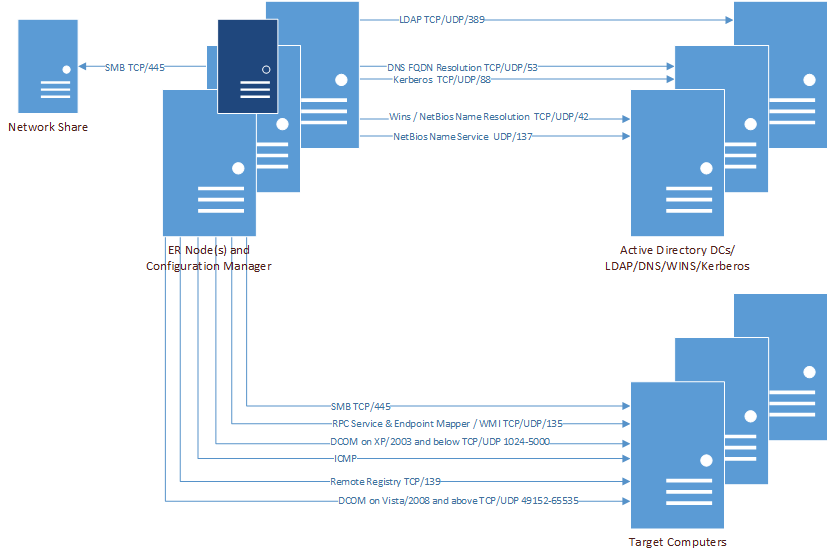

Figure 4. Ports used by Computer collections

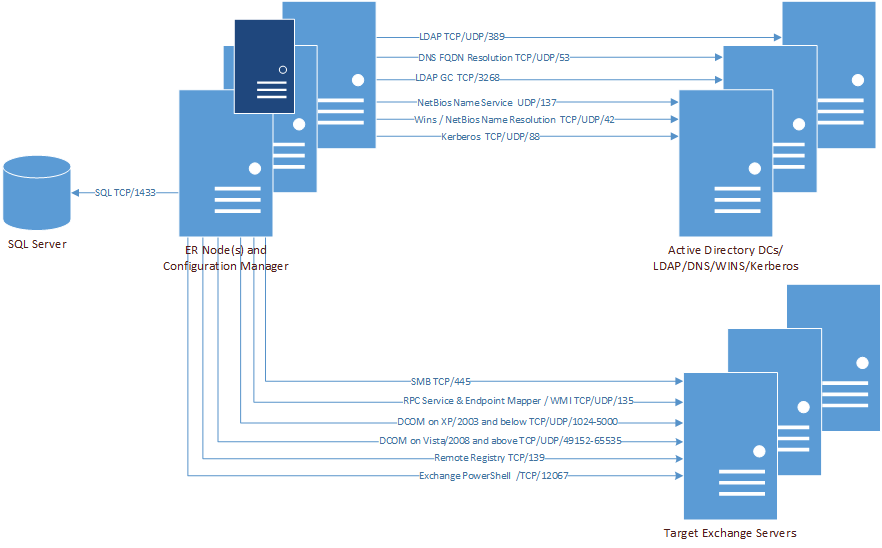

Figure 5. Ports used by Exchange collections

Additional port for Exchange discovery to be set on the Node:

•

Open WinRM HTTP port 5985 TCP Outbound

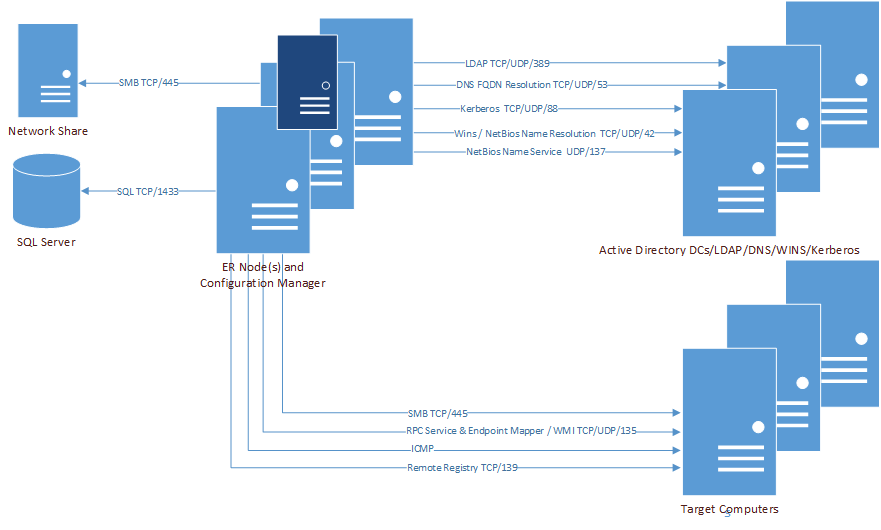

Figure 6. Ports used by File Storage Analysis collections

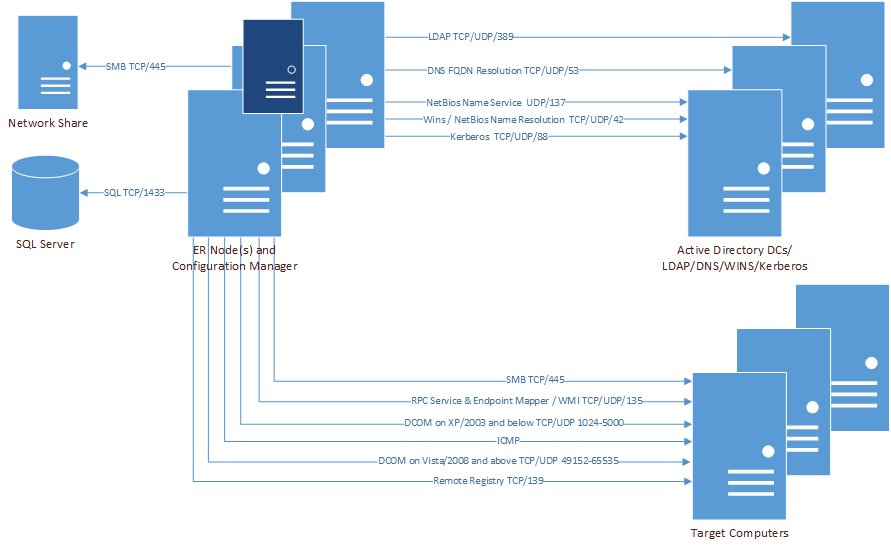

Figure 7. Ports used by NTFS collections

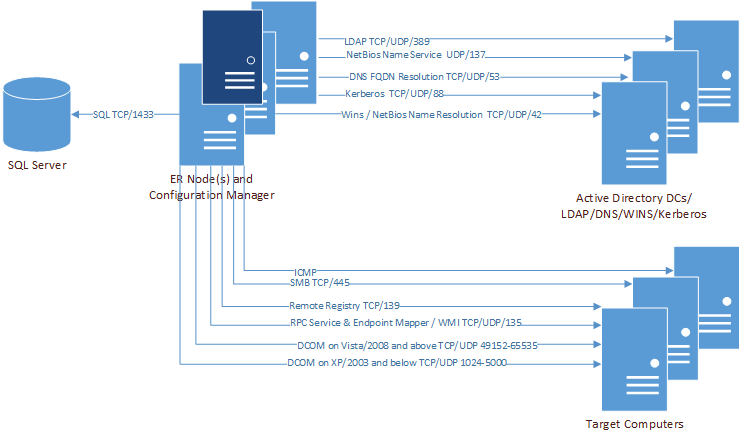

Figure 8. Ports used by Registry collections

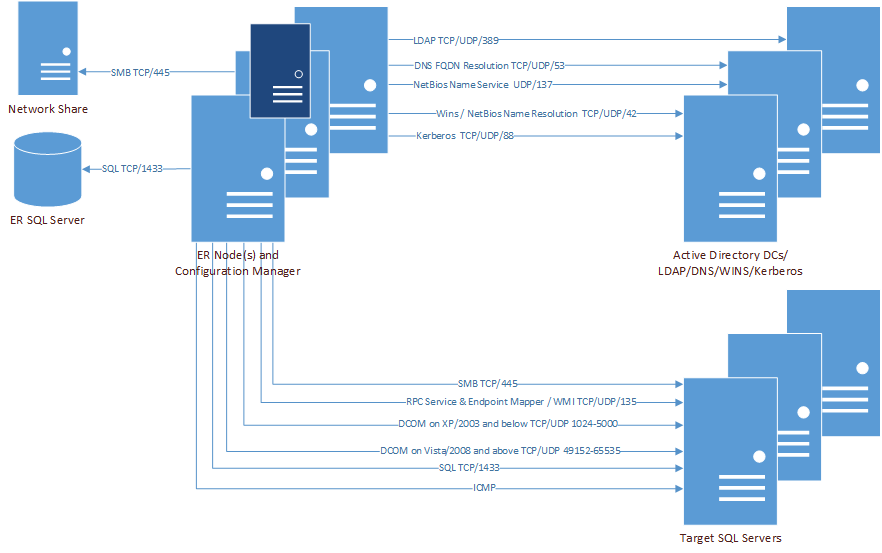

Figure 9. Ports used by SQL collections
