Enterprise Reporter 3.2.2 - Port Requirements

Quest® Enterprise Reporter 3.2.2Port Requirements

Quest® Enterprise Reporter 3.2.2
Port Requirements

This document outlines the ports required by Enterprise Reporter.

Port Requirements

For the Enterprise Reporter components to communicate, some ports must be open.

•
The default port used for communication between the server and the consoles is 7738. This port is also used by the nodes to access the server. The port is configured during installation of the server, and is required in the connection dialog box for both the Configuration Manager and the Report Manager.

You can view the port currently in use on the System | Information page in the Configuration Manager, and the System Information tab in the Report Manager.
•
The default port used for communication from the Enterprise Reporter server to the nodes is port 7737. This port may be configured during installation.

This figure outlines the ports used by the Enterprise Reporter components.

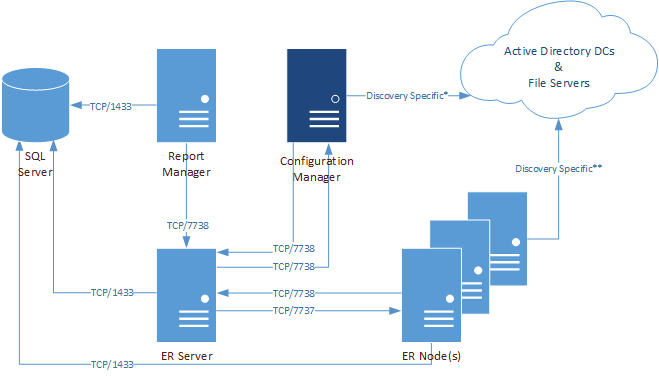

Figure 1. Ports used by Enterprise Reporter components.

*For more information on ports used when creating a discovery, see Table 1.

**For more information on ports used during data collections, see Table 2.

This table outlines the ports used by all of the Enterprise Reporter components.

Table 1. Ports used by Enterprise Reporter components



Configuration Manager1
Report Manager
SQL Server
ER Server

ER Nodes

Application
Port
Type
Components

FTP

20, 21

TCP



X







SMTP

25

TCP

X

X



X



WINS / NetBiOS Name Resolution

42

TCP
UDP







X



DNS FQDN Resolution

53

TCP
UDP

X

X



X



Kerberos

88

TCP
UDP

X





X



RPC Service & Endpoint Mapper / WMI

135

TCP
UDP

X









NetBIOS Name Service

137

UDP







X



NetBIOS Datagram (browsing)

138

UDP

X









LDAP

389

TCP
UDP

X









SQL

1433

TCP



X

X

X

X

SQL Server Browser Service

1434

TCP
UDP

X

X







Enterprise Reporter Node

7737

TCP







X

X

Enterprise Reporter Server

7738

TCP

X

X



X

X

1
For the Configuration Manager, also include the ports listed in Table 2.

This table outlines the ports used by all of the Enterprise Reporter discoveries.

Table 2. Ports used by Enterprise Reporter discoveries



Active Directory
Azure Active Directory
Azure Resource
Computer
Exchange
Exchange Online
File Storage Analysis
NTFS
OneDrive
Registry
SQL Server
Application
Port
Type
Discoveries

WINS / NetBiOS Name Resolution

42

TCP
UDP

X





X

X



X

X



X

X

DNS FQDN Resolution

53

TCP
UDP

X





X

X



X

X



X

X

HTTP

80

TCP



X

X



X*

X





X



X

Kerberos

88

TCP
UDP

X





X

X*



X

X



X

X

RPC Service & Endpoint Mapper / WMI

135

TCP
UDP







X

X**



X

X



X

X

NetBIOS Name Service

137

UDP

X





X

X



X

X



X

X

Remote Registry

139

TCP







X

X



X

X



X



ICMP











X





X

X



X

X

LDAP

389

TCP
UDP

X





X

X



X

X



X

X

HTTPS

443

TCP
UDP



X

X











X



X

SMB / Remote Registry

445

TCP

X





X





X

X



X

X

LDAP Secure

636

TCP

X





















DCOM on XP/2003 and below
(uses an open port in this range)

1024
- 5000

TCP
UDP







X

X



X

X





X

SQL

1433

TCP

X

X

X

X

X

X

X

X

X

X

X

SQL Server Browser Service

1434

UDP





















X

LDAP GC

3268

TCP

X







X













WinRM

5985
5986

TCP
UDP











X









X

Exchange PowerShell

12067

TCP









X**













DCOM on Vista/2008 and above
(uses an open port in this range)

49152
- 65535

TCP
UDP







X

X



X

X





X

*Exchange 2010 and higher, **Exchange 2007 only

The following figures outline the ports used by the Enterprise Reporter discoveries.

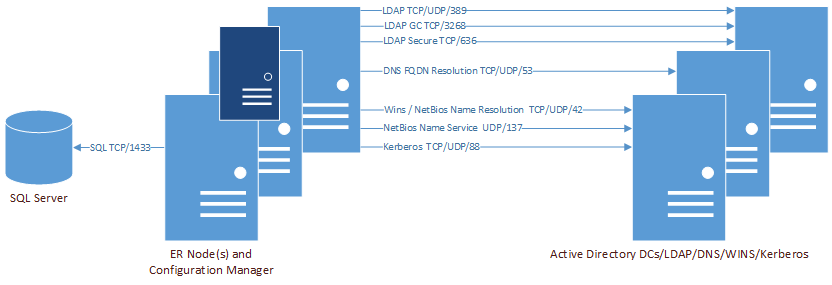

Figure 2. Ports used by Active Directory collections

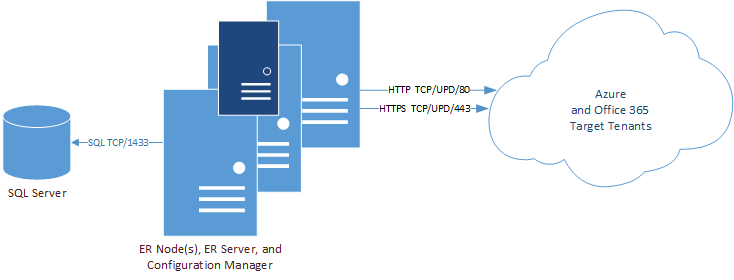

Figure 3. Ports used by Azure and Office 365 collections (Exchange Online, MS Teams, and OneDrive)

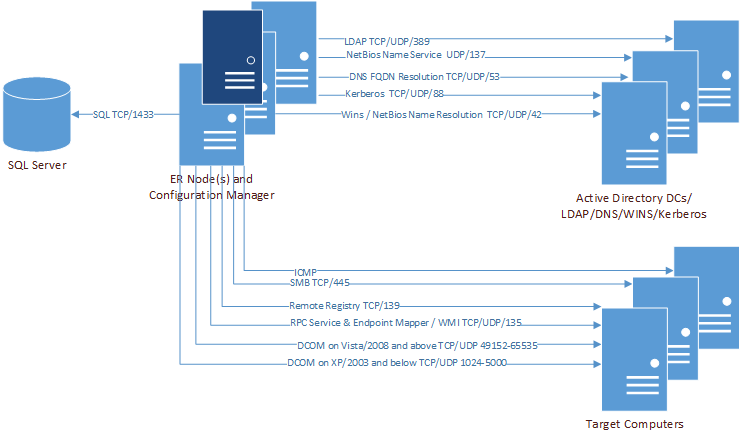

Figure 4. Ports used by Computer collections

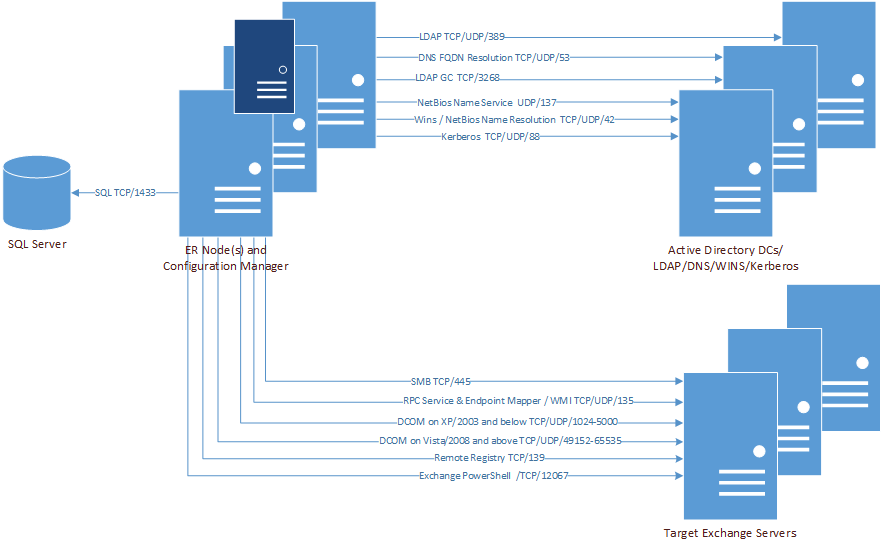

Figure 5. Ports used by Exchange collections

Figure 6. Ports used by File Storage Analysis collections

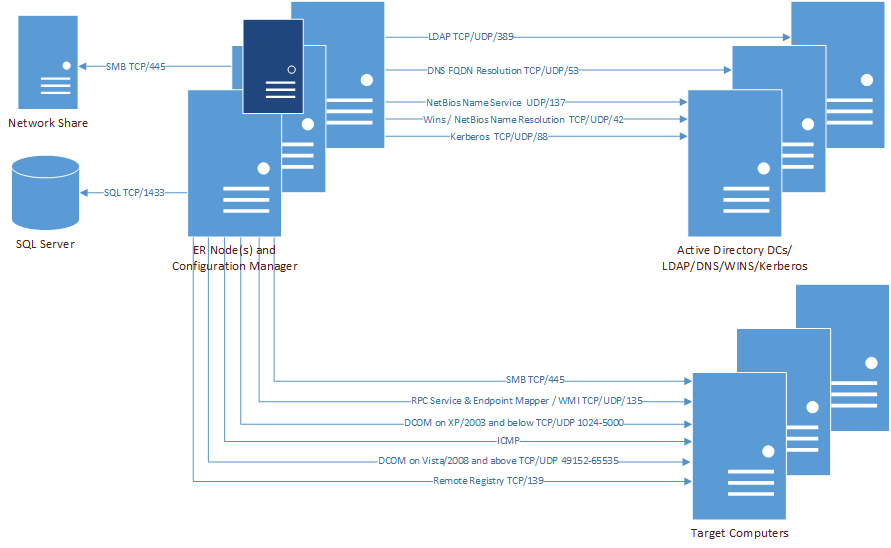

Figure 7. Ports used by NTFS collections

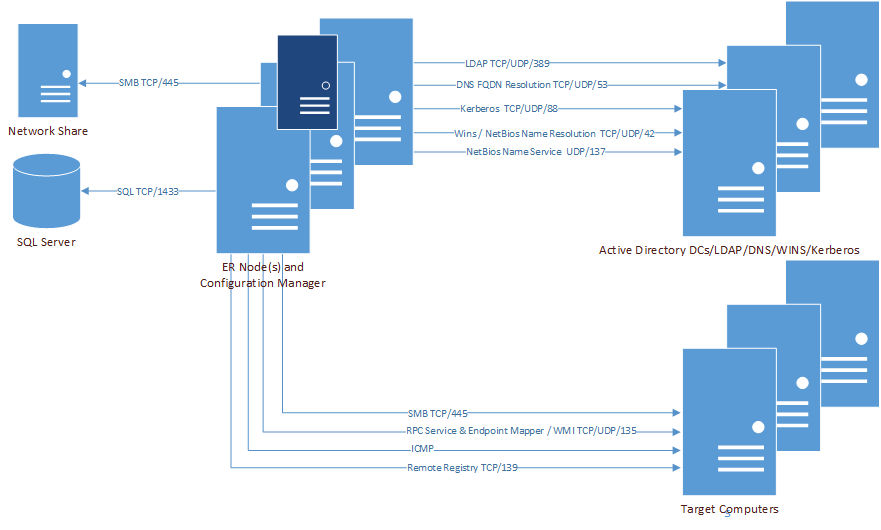

Figure 8. Ports used by Registry collections

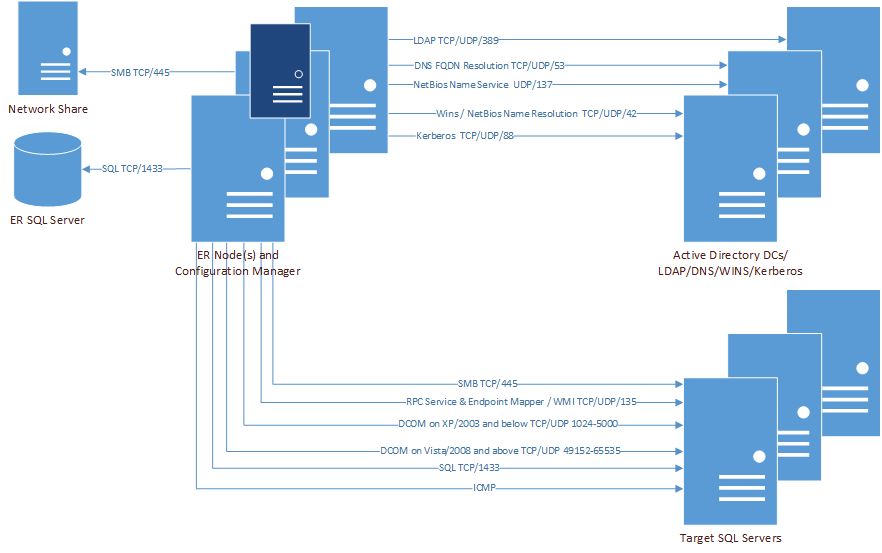

Figure 9. Ports used by SQL collections
