Diagnostic Manager 5.0.1 - Installation Guide

Viewing Alerts

The means by which you access Active Alerts depends on which node you select in the Management Console tree.

How to View Alerts:

You can view alerts for a monitored farm or Server Group by double-clicking a bar in the Active Alerts graph on the Overview page of a farm or server group.
viewing alerts

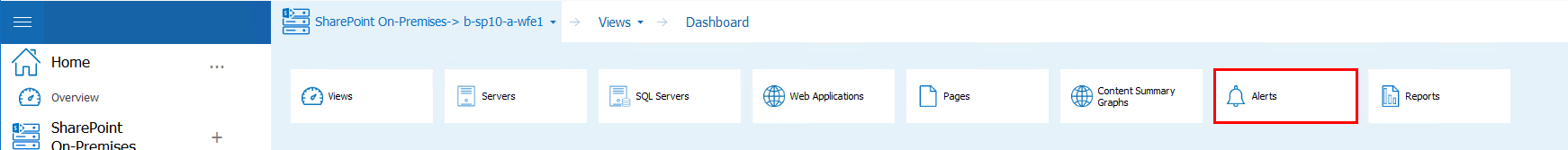

You can also access alerts by double clicking the farm, and then selecting its name in the top navigation, this opens a sub panel, where you can select Alerts in order to view the alerts.
Viewing alerts 2



The following information appears in the list of active alerts:
Active Alerts

Information

Description

Alert severity

An icon indicating the severity level of the alert.

Priority

The relative importance of the alert.



You can sort this column to group alerts by priority.

The default value for Priority is 3, but you can change this value when you edit alert thresholds.

Change

The way that the alert reached the current level.

Time

The date and time when the alert was generated.

Alert

The name of the metric that generated the alert.

Farm / Group

The farm or Server Group where the selected server resides.

Server

The server the alert affects.

Instance

The instance that the alert affects. For some metrics, more than one instance of the source of the metric can exist for a given server or page.

Value

The actual value of the metric that is the source of the alert.
