StoragePoint 6.4 - Reference Guide

Planning for Export\Import

Supported StoragePoint configuration elements currently include Profiles, Librarian configurations, Endpoints and Settings. The Profiles may be defined at several scopes with ContentDb being the most common. This choice makes it easy to move external content from one farm to another without pulling it back into any database or back-up set. To do this, the following items are required:

1.Database back-up

2.Blob-Store back-up

Using the Tool

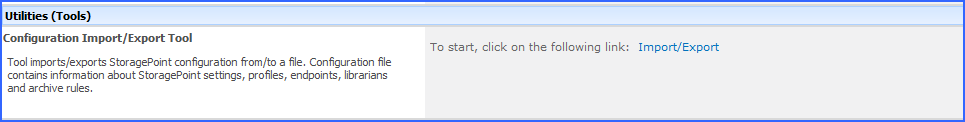

1.Go to the General Settings page and at the bottom, under Utilities, click the Import/Export link.

2.A new window is opened.

Export

1.Select the Export option and click Export.

2.A new link shows up. Click the StoragePointConfiguration.xml link.

3.An open/save dialog box is opened which allows the file to be viewed or saved (using whatever extension is needed) to an accessible location.

Import

1.Click the Import option, and browse for the previously exported configuration.

2.After clicking Browse (or Choose File) and selecting a valid configuration file, click Load Configuration File and the tool will load all available features from that file.

If the configuration file has no artifacts that aren't already in the farm, a message is displayed that nothing can be imported.

3.In this form, the configuration elements that may be imported into the current Farm are listed in a tree-view with check-marks. Place a check by each item to be imported and click Import to begin the import.

·Selecting at the top level will select all items below it.

·Selecting a Profile also automatically selects all of the end points that it uses.

·Selecting a Librarian configuration will automatically select associated endpoints and profiles.

·Artifacts that already exist in the target Farm will not be listed for selection.

·Select NEW PROFILE DEFAULTS or NEW ENDPOINT DEFAULTS to import the default settings found on General Settings and Default Values.

4.When the import is completed successfully there will be a confirmation message. Click OK.

5.Click the close button (top right) to close the Import\Export window.

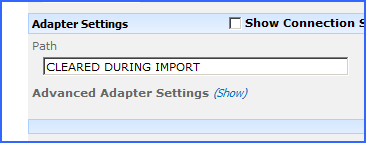

6.If a profile or endpoint was imported please open Central Administration to correctly set the path(s) to point to the file-share copy\back-up that was made previously. The path will look like this when first opened:

Check the default path, if one was imported, on Default Values.

If Use Breadcrumbs was selected on the General Settings page, the default retention setting on Default Values won’t be imported and will need to be entered manually.

WARNING: Do not use the same endpoint for more than one farm, i.e. development, staging, and production. This is not a supported configuration.
