Plug-in Live Client for Windows and for Linux with Linux-based NetVault Server deployment
Plug-in Live Client for Windows and for Linux with Linux-based NetVault Server deployment
The Plug-in Server for Linux component is installed on the Windows-based NetVault Server. The Plug-in Live Client for Linux, Linux-based Client Component is installed on each Linux Client that you want to protect with online or hot backups.
Also, the Plug-in Server for Linux component is installed on the Linux-based NetVault Server and the Plug-in Live Client for Windows is installed on each Windows Client that you want to protect with online or hot backups.
In this scenario, Plug-in Offline Client is used to perform the recovery of the Windows Clients.
Figure 7. NetVault Bare Metal Recovery Client for Windows and Client for Linux with Linux-based server
For more information, see Using NetVault Bare Metal Recovery Plug-in Live Client for Windows and Using NetVault Bare Metal Recovery Plug-in Live Client for Linux.

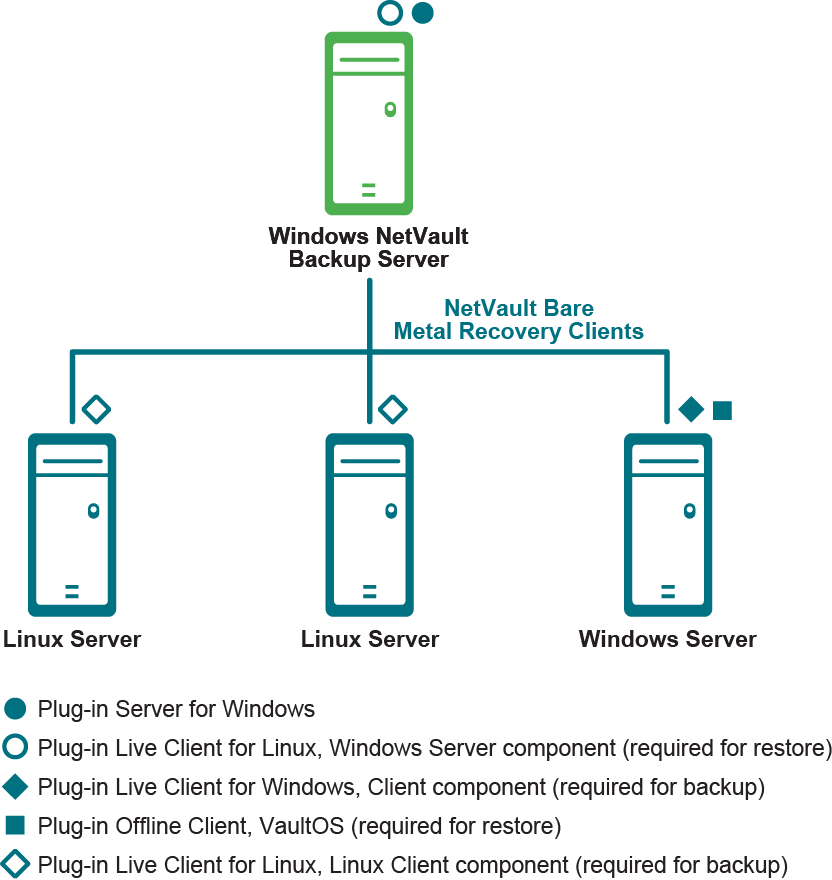

Plug-in Live Client for Windows and for Linux with Windows-based NetVault Server deployment
Plug-in Live Client for Windows and for Linux with Windows-based NetVault Server deployment
The Plug-in Server for Linux component is installed on the Windows-based NetVault Server and the Plug-in Live Client for Linux, Linux-based Client Component is installed on each Linux Client that you want to protect with online or hot backups.
Also, the Plug-in Server for Windows component is installed on the Windows-based NetVault Server, and the Plug-in Live Client for Windows is installed on each Windows Client that you want to protect with online or hot backups.
In this scenario, Plug-in Offline Client is used to perform the recovery of the Windows Clients.
For more information, see Using NetVault Bare Metal Recovery Plug-in Live Client for Windows and Using NetVault Bare Metal Recovery Plug-in Live Client for Linux.
Using the Plug-in Offline Client
Using the Plug-in Offline Client
Plug-in Server: an overview
Plug-in Server: an overview
The Plug-in Server resides on the NetVault Server and enables backup and recovery of a target client’s data by using the Plug-in Offline Client. The processes required to set up and use the Plug-in Server must be followed in a specific order. The following list outlines how to establish a Plug-in Server environment.
|
• |
|
• |
If you are installing the hybrid version of the Plug-in Server on a pure 64-bit Linux Server that uses the hybrid version of NetVault, you must install the zlib.i686 file first. To do so, run: yum install zlib.i686 |
|
• |
Installation: Install the Plug-in Server on the NetVault Server. |
|
• |
Configuration: Configure the Plug-in Server. |
|
• |
Create a Plug-in Offline Client Boot System, for example, to a writable CD. |
|
• |
Add the target NetVault Bare Metal Recovery Clients to the Plug-in Server on the NetVault Server. |
|
• |
Backup: Perform an offline backup of the desired NetVault Bare Metal Recovery Client machine. |
|
• |
|
• |
Restore: Perform an offline restore to the target NetVault Bare Metal Recovery Client. |
|
• |
