Integration for Notes 20.13 - User Guide - BTCal

Section 1: Introduction Section 2: Features and Advantages Section 3: Scope Section 4: Recommended Installer Prerequisites Section 5: Pre-installation Requirements Section 6: Configure the Domino Environment Section 7: Configure Integration for Notes BTCal in Exchange or Office 365 Section 8: Licenses Section 9: Installing Integration for Notes Section 10: Create and Configure Domino Databases Section 11: Modify the Notes.ini File Section 12: Re-start BTCal Domino server to bring it online Section 13: Verification Section 14: On-going Administration Appendix A: ZApp Appendix B: Configure GRIP Appendix C: On the Fly Encryption and Decryption Appendix D: Disable Encrypted Message Routing Appendix E: High Availability/Redundancy Mail and Calendar Routing for Foreign Domains Appendix F: Notes.ini Parameter Descriptions Appendix G: Notes.ini Parameter Values Appendix H: Considerations for Domino SMTP Domain Exposure Appendix I: Processing Repeating Meetings Appendix J: Deployment Quick Reference Appendix K: Customizable Non Delivery Report (NDR) Reason Codes Appendix L: Cross Platform Delegation Appendix M: BT Stats Database

Section 9: Installing Integration for Notes

To install Integration for Notes, perform the following two installations:

  1. Notes Integration.exe installation package for BTCal and ZApp to be installed on the Domino Coexistence server

  2. Notes Integration FreeBusy.exe installation package for BTFree/Busy to be installed on the Domino Coexistence server and Windows Coexistence server (see FreeBusy user guide)

Please refer to the Directory Sync Pro Installation Guide if you will be installing Directory Sync Pro.

9.1 Downloading Instructions

9.1    Downloading Instructions

The Install Kit can be downloaded at support.quest.com.

9.2 Install Integration for Notes BTCal on Domino

9.2    Install Integration for Notes BTCal on Domino



Follow the steps below to install the Domino Coexistence server (see the Administrator Pre-Install Checklist section for a list of prerequisite technical information to obtain prior to installing BTCal): Confirm the server meets the hardware requirements and prerequisites have been installed outlined in the Administrator Pre-Install Checklist.



The BTCal components are installed separately from the Free/Busy components (see the Free/Busy User Guide for more information).




Don’t forget to back up your notes.ini file before installing new software on your Domino server!

  1. Stop the Domino server by issuing the “quit” command at the console.

  2. Run the Notes Integration.exe as Administrator

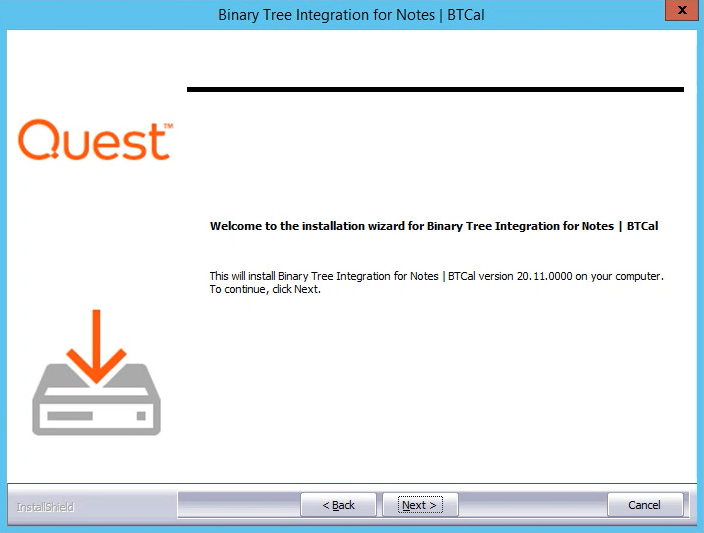

  3. On the installation wizard screen, click Next

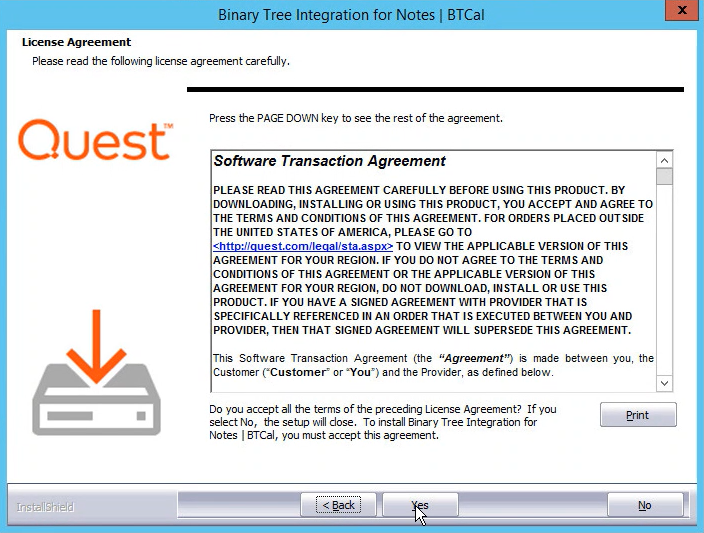

  4. Review the Software License Agreement and then click Yes

  5. On the Verify Domino Instance Data Directory Path screen, browse to the location of the Notes.ini file that will be modified for the Domino instance; click Next:

  6. On the Confirm Domino Directories screen, confirm the displayed directories contain the Domino Program Directory and the Domino Data Directory where Integration for Notes BTCal will be installed; click Next:

  7. On the Ready to Install the Program screen, click Install to begin the installation:

  8. The progress of the installation will be displayed on the Setup Status screen:

  9. On the Edit notes.ini screen, select to modify the notes.ini file, save the required changes to a notes.ini alt file, or select to not make any changes to the notes.ini file; click Next. These changes must be made to the Notes.ini for Integration for Notes BTCal to run:



  10. An informational message appears if Let Setup modify the notes.ini file was selected; click OK. Be sure to restart the Domino server for the changes to take effect:

    When installation completes, the wizard complete screen appears. Click Finish to close:













Section 10: Create and Configure Domino Databases

Once installed, BTCal will not actually start unless certain Domino databases exist. If these databases do not already exist, they must be created.

To create the necessary databases, the administrator must perform the below tasks from the Notes Administrator client for each corresponding database.

Locate the databases and templates below in the Domino server’s data directory and sign them with either the server’s ID or your company’s preferred ECL signing ID.

Field Name

Recommended Value

Links

BTCache V3 Template

btcachev3.ntf

See Section 10.1

BT Document Store Template

btstore.ntf

See Appendix A: ZApp

BT IDVault

btidcache.ntf

See Appendix C: On the Fly Encryption and Decryption

BTCal Whitelist Template

btwhitelist.ntf

See Section 10.5

BT Calendar Cache V2 Template

btcachev2.ntf

See Appendix L: BT Stats Database

BTCalStats Template

btcalstats.ntf

See Appendix L: BT Stats Database

BT GRIP Local Template V2

btgriplocalv2.ntf

See Appendix B: GRIP

BT GRIP Remote Template

btgripremote.ntf

See Appendix B: GRIP






Be sure to sort by filename and sign all the databases that start with “BT”
