Integration for Notes 20.13 - User Guide - BTCal

Section 1: Introduction Section 2: Features and Advantages Section 3: Scope Section 4: Recommended Installer Prerequisites Section 5: Pre-installation Requirements Section 6: Configure the Domino Environment Section 7: Configure Integration for Notes BTCal in Exchange or Office 365 Section 8: Licenses Section 9: Installing Integration for Notes Section 10: Create and Configure Domino Databases Section 11: Modify the Notes.ini File Section 12: Re-start BTCal Domino server to bring it online Section 13: Verification Section 14: On-going Administration Appendix A: ZApp Appendix B: Configure GRIP Appendix C: On the Fly Encryption and Decryption Appendix D: Disable Encrypted Message Routing Appendix E: High Availability/Redundancy Mail and Calendar Routing for Foreign Domains Appendix F: Notes.ini Parameter Descriptions Appendix G: Notes.ini Parameter Values Appendix H: Considerations for Domino SMTP Domain Exposure Appendix I: Processing Repeating Meetings Appendix J: Deployment Quick Reference Appendix K: Customizable Non Delivery Report (NDR) Reason Codes Appendix L: Cross Platform Delegation Appendix M: BT Stats Database

Section 12: Re-start BTCal Domino server to bring it online

After installing the BTCal software and applying the INI file, the Domino server needs to be restarted or brought online if not already running.

Refer to Section 14.1: Operations for more information on BTCal Domino server commands.

If the Domino server is already running, restart BTCal. To do this, first execute the quit command to stop the BTCal task:

PowerShell

tell BTCal quit



To restart the BTCal task, issue the following:

PowerShell

load BTCal

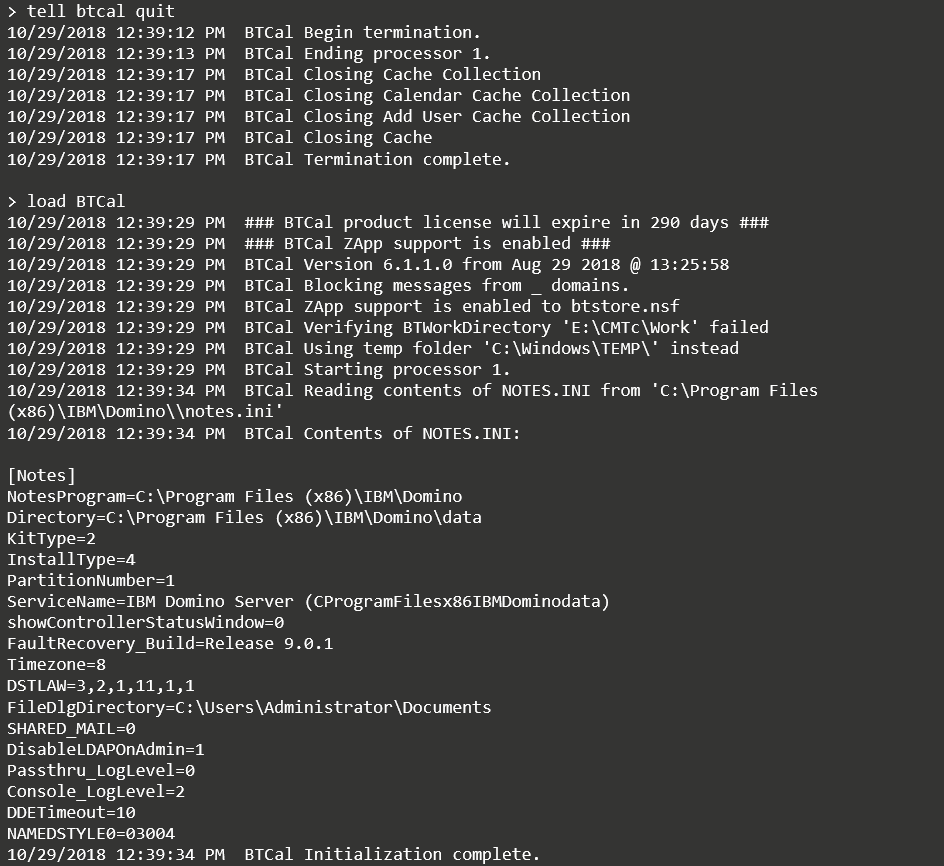

To verify the output results, an example of the BTCal log is provided below. Some of the details in the log may not be applicable.

Section 13: Verification

Proper verification of the BTCal installation can prevent future issues from occurring during coexistence.

13.1 Verify Integration for Notes

13.1    Verify Integration for Notes

  1. The Domino component of Integration for Notes is comprised of an executable (BTCal) that runs as a Domino server task, and a Domino Extension Manager dll(BTEX). These are copied into the Domino Program Directory of the Domino Coexistence Server during the installation. If a previous version of the file exists, it should be backed up for future reference. When installing or upgrading this module, stop the Domino Server.

    Once the installation completes, be sure that the following files exists in the <C:\Program Files\IBM\Domino> folder:

  • nBTCal.exe

  • nBTCal.pdb

  • nBTEx.dll

  • nBTEx.pdb

  1. Verify the following items have been added to the NOTES.ini file:

    • BTCal value is added to the ServerTasks parameter in the NOTES.ini file

    • EXTMGR_ADDINS= BTEx is added to the NOTES.INI file; be sure that BTEx is the only extension manager add-in in the NOTES.ini file.

  2. The NOTES.INI file is updated with the required and optional parameters

13.2 Complete the Validation Matrix

13.2    Complete the Validation Matrix

13.2.1 Create Test Accounts

Prior to performing the validation in the attached Excel spreadsheet, first create two Notes and two Outlook test accounts:

  • The Notes users should reflect a typical end user with a similar client, mail template and mail server

  • The Outlook client should match that of a typical end user

13.2.2 Misc Validation

  1. As necessary, perform any additional testing that is not covered in the above matrix

  2. It is recommended to also test with iNotes and OWA



After successful installation and verification of BTCal, support will transfer from the Solutions Architect and project teams to Binary Tree Support. Performing the installation and verification should provide adequate understanding of the coexistence environment and the product to assist in future interactions with Binary Tree Support.
