Foglight Transaction Recorder 5.6.10 - Getting Started Guide

WScript Database Example

This script builds upon the WScript Simple Timers Example by performing queries against a database. Within the called script are two timers which report the elapsed time of the two queries. The provided dbcmd.js script uses the Northwind database, but can be modified, then used with the required database by editing the dbcmd.js file in the Documents and Settings > My Documents > My Foglight Scripts > Samples directory.
To run this sample script:
1
From the Foglight Transaction Recorder toolbar, click File > Open.
2
Click the My Documents icon on the left side of the Open Script dialog and navigate to My Foglight Scripts > Samples.
3
Select WScriptDatabaseExample.ftr.
4
Click Open.
The sample script opens in the Foglight Transaction Recorder Script window.
5

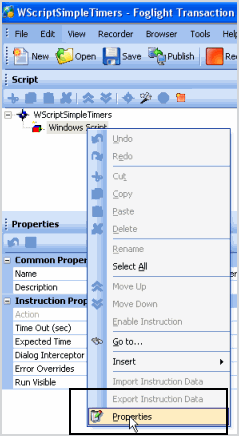

You must point the dbcmd.js file used in the sample script to the Foglight Transaction Recorder. Right-click the Windows Script transaction, and select Properties.
6
Click the Ellipse button in the Script row.
7
Navigate to Documents and Settings > My Documents > My Foglight Scripts > Samples, and select dbcmd.js.
8
Click Open.
9
Click OK.
10
Click Play.
The script plays and provides Result Details.
For procedures on uploading scripts to Foglight, see Publishing the Script to Foglight .

FTRA-Getting Started Example

*
NOTE: To run this script, you must have Tevron CitraTest installed on the same machine where the Foglight Transaction Recorder is installed.
This script is similar to the script created in the Working with Thick Client Scripts section of this guide. The sample is a guide and may not run properly on different systems due to different display setting or operating systems. This script was created in Windows XP at a resolution of 1024x768. Some of the images used by CitraTest may need to be recaptured if the user intends to actually run the script.
To run this sample script:
1
From the Foglight Transaction Recorder toolbar, click File > Open.
2
Click the My Documents icon on the left side of the Open Script dialog and navigate to My Foglight Scripts > Samples.
3
Select FTRA-GettingStarted.ftr.
4
Click Open.
5
The sample script opens in the Foglight Transaction Recorder Script window.
6

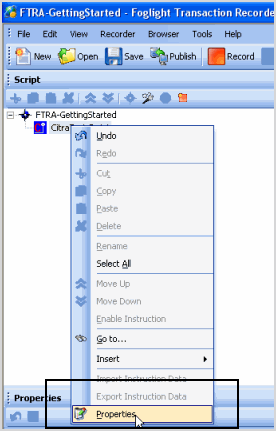

You must point the GettingStarted.exe file used in the sample script to the Foglight Transaction Recorder. Right-click the CitraTest Script transaction, and select Properties.
7
Click the Ellipse button in the row.
8
Navigate to the Documents and Settings > My Documents > My Foglight Scripts > Samples > Getting Started Source, and select GettingStarted.exe.
9
Click Open.
10
Click OK.
11
Click Play.
The script plays and provides Result Details.
For procedures on uploading scripts to Foglight, see Publishing the Script to Foglight .


Working with Thin Client Scripts

This section presents the procedures for using the Foglight Transaction Recorder on how to record a thin client script, insert transactions into a script, save the script, playback the script, and upload the script to Foglight for playback on the Foglight Transaction Player agent.

Recording Thin Client Scripts

These procedures provide the steps necessary to record a thin client script.
To record a thin client script:
1
Click the Start button from the Windows task bar.
2
Select All Programs > Dell Software > Foglight Transaction Recorder > Foglight Transaction Recorder.
The Foglight Transaction Recorder appears.
3
Click New.
4
Click Record.
The Recording Method dialog appears.
5
Select New User from the list.
6
Click OK.
*
NOTE: For demonstration purposes, used the Dell Web site.
7
In the Address toolbar, type http://www.quest.com.
8
Press Enter.
The Dell web site appears in the Foglight Transaction Recorder window.
9
Click Products > View all Products.
10
Scroll down and click Foglight Transaction Recorder.
11

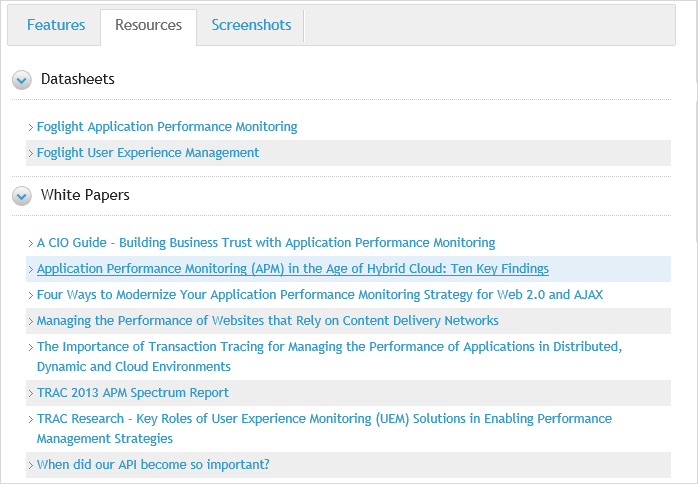

Scroll down and click Resources.

12
Scroll down and click Screenshots.
13
Scroll down and click Foglight User Experience Management.
14
Click Resources.
15
Click Screenshots.
16
Click Stop.
All the recorded transactions display in the Script window.
