Foglight Transaction Recorder 5.6.10 - Getting Started Guide

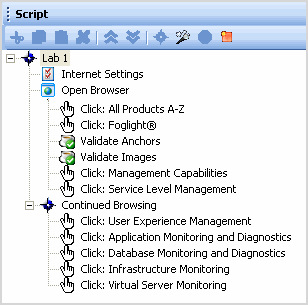

Script Window

The Script Window displays each recorded instruction (click or key entry) made during the recording process. As you click through a Web site, additional icons display in the Script Window, representing each user action.

Properties Window

The Properties Window is where individual instruction and script properties are displayed and edited. Properties are grouped by:
•
Common Properties—properties common to all instructions and scripts.
•
Browser Instructions—properties required to navigate a web site.
•
External Scripting­—properties required to run an external script. For example, a CitraTest script.
•
Special—properties that require a special action. For example, a keyboard shift or dial-up.
•
Network Diagnostics—properties required to perform network diagnostics. For example, a ping or name lookup.
*
NOTE: For a complete discussion of properties and definitions, refer to the Foglight Transaction Recorder User Guide.

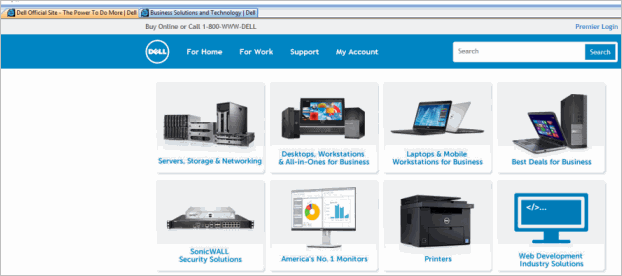

Main Window

The Foglight Transaction Recorder Main Window has three functions:
•
During recording, the Main Window acts like a common Internet browser. The user interacts with the Web pages in this window and all of their actions are recorded.
•
During playback, the Main Window looks like an Internet browser, but its actions are driven by the application. Each action that the user takes during recording is played back by the Foglight Transaction Recorder and turned into a script which is uploaded to the Foglight Management Server for playback on the Foglight Transaction Player Agent.
•
When not recording or playing back a script, the Main Window provides detailed results from the last time the script was run. Tables and charts show timing details, network traffic, and other useful metrics.

Results Window

The Results Window displays real-time information while a script is being played, and shows the status and results of each instruction during the execution of the script.
