Foglight Hybrid Cloud Manager 6.1.0 - User Guide (for AWS environments)

Using Foglight Hybrid Cloud Manager for AWS Monitoring Tab System Info Tab Tags Tab Report Tab Rule Configuration Tab Administration Tab Optimizer Tab Cost Tab Policy Management Tab

Actions bar

The actions bar at the top of the Cloud Manager dashboard contains the Monitoring Tab, the System Info Tab, the Tags Tab, the Report Tab, the Rule Configuration Tab, and the Administration Tab.

Figure 2. Actions bar

Menu bar

The Menu bar contains the following tiles: Regions monitoring, Account monitoring, EC2 Instances Monitoring, and EBS monitoring.

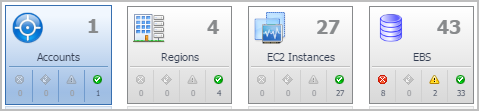

Figure 3. Menu bar

Quick view

The quick view is located on the lower part of the Cloud Manager dashboard, which is updated based on the tab selected on the Menu bar or the Actions bar.

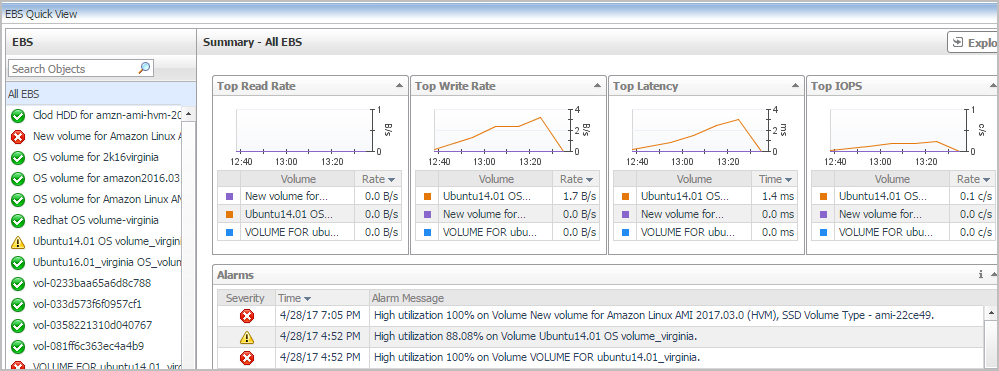

Figure 4. Quick view



Monitoring Tab

When navigating to the Cloud Manager dashboard for the first time, the Monitoring tab appears. The Monitoring tab allows you to select a monitoring object or a group of objects, such as regions, accounts, EC2 instances, or EBS, and review the data associated with your selection.

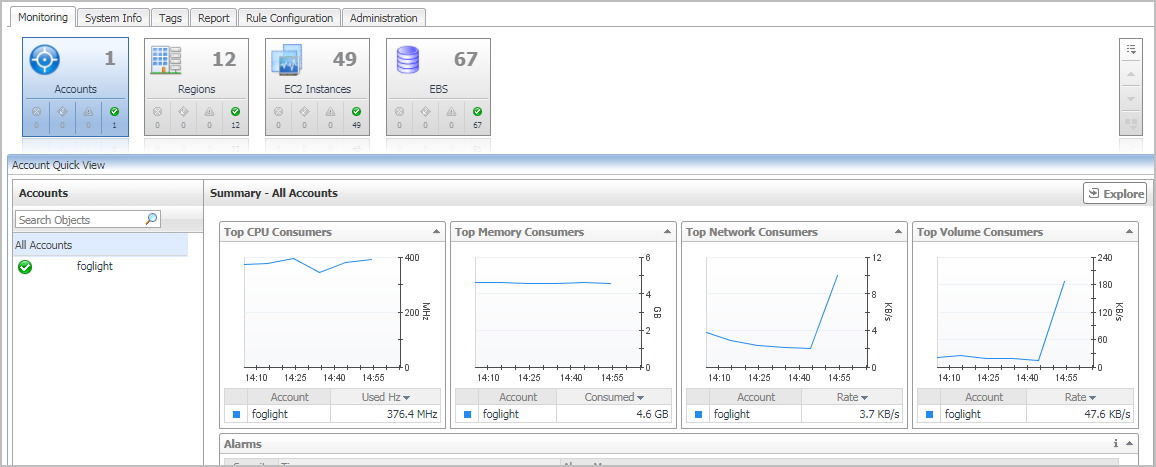

Figure 5. Monitoring dashboard

To access the Monitoring dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager, and then click AWS.
The Cloud Manager dashboard opens
4
On the actions bar, click Monitoring.
5
Select the Regions, Accounts, EC2 Instances, or EBS tile from the top left.

For more information, see the following topics:

•
Regions monitoring
•
Account monitoring
•
EC2 Instances Monitoring
•
EBS monitoring
