The VMware Alarms dashboard contains the following views:

•

Alarms Overview

•

Alarms List view

Alarms Overview

Purpose

The Alarms Overview provides a quick and easy way for you to view Foglight for VMware alarms grouped by object type and severity level. You can use this Overview to monitor alarms and to identify the sources of problems within the virtual infrastructure. If you click any of the alarm counts for a particular object type, a popup displaying just the alarms for that object type appears.

Figure 93. Alarms Overview

For more information about the VMware Alarms dashboard on which this view appears, see Exploring VMware alarms .

How to Get Here

•

Open the VMware Alarms dashboard.

The Alarms Overview appears at the top of this dashboard.

Table 7. Description of the View

Data displayed

•

Alarm counts. The total counts of alarms associated with the various components, broken down by alarm types (Normal, Warning, Critical, Fatal).

Where to go next

•

Drill down on any alarm count. Displays the Alarms dialog box that shows a list of all alarms associated with the selected component type.

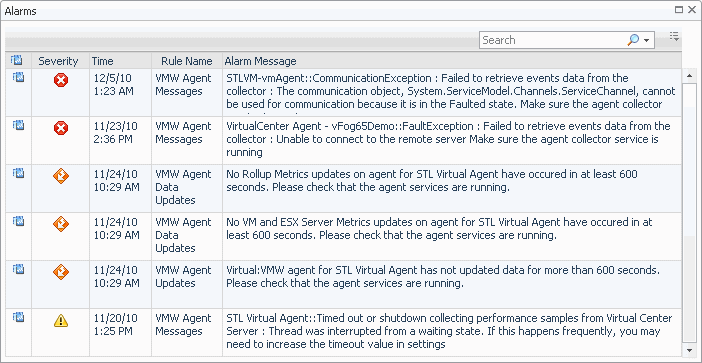

Figure 94. Alarms dialog box

Alarms List view

Purpose

Each alarm row in the Alarms List contains an object icon that identifies the source of the alarm, an alarm icon that indicates the severity of the alarm, the time when the alarm occurred, and the text of the alarm. The columns are sortable so that alarms can be listed in order by source, severity, time, or message. Simply click a column heading to sort the table by that column.

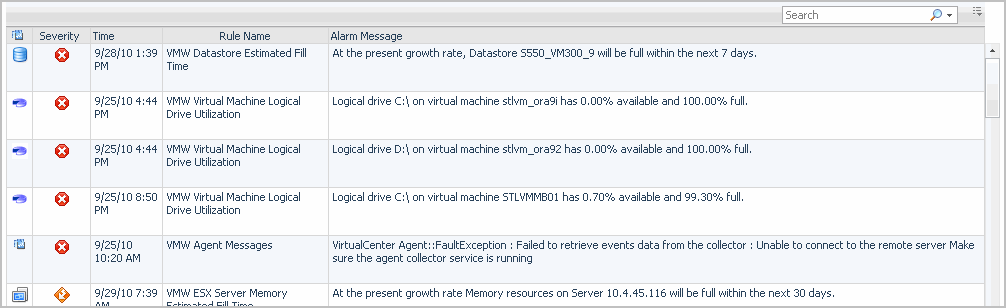

Figure 95. Alarms List view

If you click an alarm’s severity icon, a popup for acknowledging or clearing that alarm is displayed. The popup provides a lot of pertinent information about the alarm, such as the rule of origin for the alarm, the history of the alarm, and all of the notes attached to the alarm. If you click the message or any other column in the row, you are provided with a popup menu. From the popup menu, you can choose to view a VMware Explorer dashboard for the corresponding object.

For more information about managing alarms with the Foglight for VMware browser interface, see the Foglight for VMware User Guide.

How to Get Here

•

Open the VMware Alarms dashboard.

The Alarms List view takes up the majority of that dashboard.

Table 8. Description of the View

Data displayed

•

Alarm Message. An explanation about why the alarm occurred.

•

Object indicator. Indicates if the alarm is related to a virtual center

, datacenter

, cluster

, ESX host

, resource pool

, virtual machine

, datastore

, agent

, or logical drive

•

Rule Name. The name of the rule that triggered the alarm.

•

Severity. Indicates the alarm severity: Warning, Critical, or Fatal.

•

Time. The time at which the alarm was generated.

Where to go next

Drill down on:

•

Alarm Message, Object indicator, Rule Name, or Time. For server and virtual machine objects, the Select Drilldown dwell appears.

Figure 96. Select Drilldown dwell

From here, selecting VMware Explorer shows the selected server or virtual machine in the VMware Explorer, with the Summary tab open. Selecting Quick View shows the selected component in the Quick-View.

•

Severity. Displays the Alarm dialog box, showing additional information about the alarm. For more information about alarms in Foglight, see the Foglight User Help.

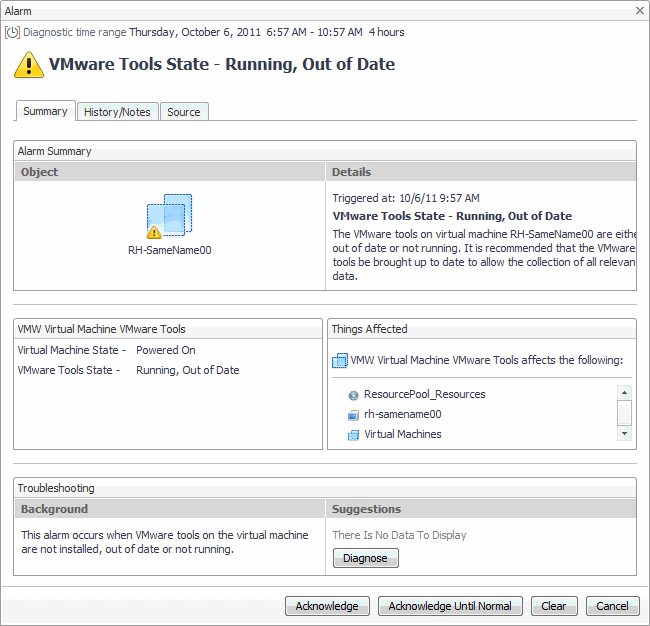

Figure 97. Alarm dialog box
