PS_SchedMonitor Agent

The PS_SchedMonitor Agent discovers PeopleSoft Tuxedo configuration files for all domains. It then searches for all Process Scheduler server domains in the path, looking for the psprcs.cfg file. The PS_SchedMonitor Agent sets the necessary connection information and deploys a PS_SchedServer Agent for each PeopleSoft Process Scheduler server domain the user requests to be monitored.

PS_SchedMonitor Agent Properties

When an agent connects to the Foglight Management Server, it is provided with sets of properties that it uses to configure its correct running state.
Each agent is provided with a combination of two types of properties: agent properties and shareable properties.
Default versions of these properties are installed with the Foglight for PeopleSoft. However, you can edit the default shareable and agent properties, configure agent properties that apply only to a specific agent instance, and create edited clones of shareable properties that are used by a subset of the agents of a certain type.
For more information about working with agent properties, see the Foglight Administration and Configuration Guide.
The PS_SchedMonitor Agent is shipped with default properties that can be modified to suit your system requirements.
To modify agent properties:
1
Ensure that the navigation panel on the left is open.
To open the navigation panel, click the right-facing arrow on the left .
2
Open the dashboard that lets you navigate to the agent properties by completing one of the following steps:
•
On the navigation panel, under Dashboards, choose Administration > Agents > Agent Properties.
In the Agent Properties dashboard, in the Namespace > Type pane, select Legacy > PS_SchedMonitor.
or
•
On the navigation panel, under Dashboards, choose Administration > Agents > Agent Status.
In the Agent Status dashboard, select the instance of the PS_SchedMonitor agent whose properties you want to modify and click Edit Properties.

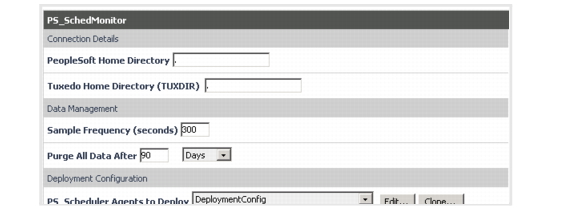

A list of agent properties appears in the PS_SchedMonitor pane.
The position of the Properties pane depends on the dashboard you used to access agent properties. If you used the Agent Properties dashboard, the Properties pane appears to the right of the Namespace > Type pane in the display area. If you used the Agent Status dashboard, the Properties pane appears across the display area.

Setting the PS_SchedMonitor Connection Details

The PS_AppServer Agent needs to be configured with the Connection Details and domains information before the agent can operate properly.
The Connection Details agent properties allow you to specify the environment variable to which the agent should connect and discover PeopleSoft Scheduler Domain information. The connection information consists of a PeopleSoft Home Directory, and Tuxedo Home Directory (TUXDIR).
The PS_SchedMonitor Agent uses the information in the Connection Details properties to discover the PeopleSoft Tuxedo configuration files for all domains and searches for all application server domains in the path looking for the psprcs.cfg file. The Deployment Configuration Lists for the PS_Scheduler and PS_SchedServer are populated with all discovered Scheduler domain(s).
To set the connection details:
1
Go to the Connection Details set of properties.
2
Enter the PeopleSoft Home path for the PeopleSoft environment in the PeopleSoft Home Directory box.
3
Enter the Tuxedo path where the PeopleSoft environment executes the BBL process in the Tuxedo Home Directory (TUXDIR) box.
4
Click Save.
5
Go to the Setting the PS_SchedMonitor Data Management Parameters section.

Setting the PS_SchedMonitor Data Management Parameters

Use the Data Management PS_SchedMonitor Agent properties to set the sample frequency.
To set the data management properties:
1
Go to the Data Management set of properties.
2
Enter the collection interval in the Sample Frequency (seconds) box.
The collection rate, or sample frequency, is the number of seconds between the end of a collection period and the start of the next.
The default is 300 seconds.
3
Ignore the Purge All Data After box. This field is not functional.
4
Click Save.
5
Go to the Setting the PS_SchedMonitor Deployment Configuration Parameters section.
