WinHostProcessInstance topology object

On Windows®, instances of WinHostProcessInstance are used instead of HostProcessInstance. These topology objects extend HostProcessInstance with a few more details that can be captured on Windows platforms.


Table 63. WinHostProcessInstance topology object
Metric Name
Metric Description
Metric Collected for These Platforms
commandLine

The full command line used to launch the executable.

Windows®

creationDate

The time the process instance was created.

Windows

executablePath

The full path to the executable.

Windows



Appendix: Building regular expressions in Foglight

This section describes regular expression basics and gives hands-on examples. For more details, see these topics:

•
What is a regular expression?
•
Where can I find regular expressions?
•
Regular expression basics

What is a regular expression?

A regular expression is a sequence of characters used to describe text ranges, patterns, and various kinds of special conditions. Regular expressions are supported in many programming languages, including Java® and Groovy, the core languages that Foglight uses.

The syntax of Groovy regular expressions comes from Java, so the syntax of Java and Groovy regular expressions is the same.

Where can I find regular expressions?

Regular expressions can be found in many parts of Foglight. For example, credential mappings use the regular expression syntax to select the hosts accessible with a specific credential.

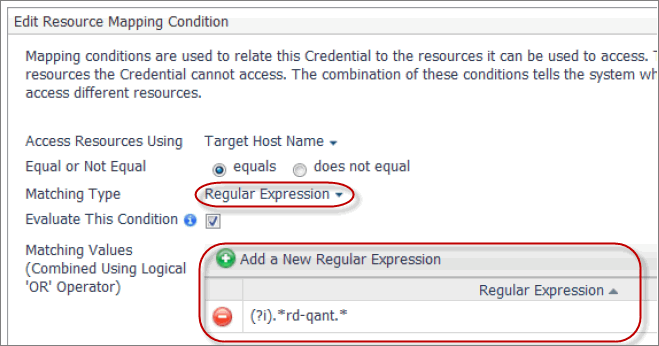

Figure 1. Edit Resource Mapping Condition

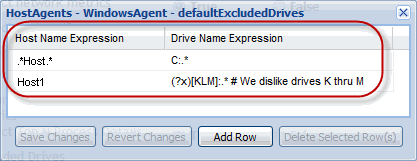

The Excluded Drives property of the WindowsAgent is another example of a regular expression usage in Foglight.

Figure 2. Excluded Drives property

In addition, regular expressions can be found in LogFilter expressions, FxV Hit Analysis, and other parts of Foglight.
