Foglight Capacity Director 6.0.0 - User Guide

Using Foglight Capacity Director Lite Getting Started Tab Current Capacity Tab Resource Utilization Tab Scenario Modeler Tab Server Purchase Tab Report Tab Performance Tuning Tab Changes and DRS Rules Tab Infrastructure Organizations Tab

Hosts and Workload Report

1
Click Reports on the top right of the Foglight dashboard.
2
Click Resource Utilization - Hosts and Workload Report from the context menu.
Email Recipients: Type the email address.
6
Select the scheduled date for executing this report, as needed, then click Next. This configuration is only available after selecting the Schedule This Report option.

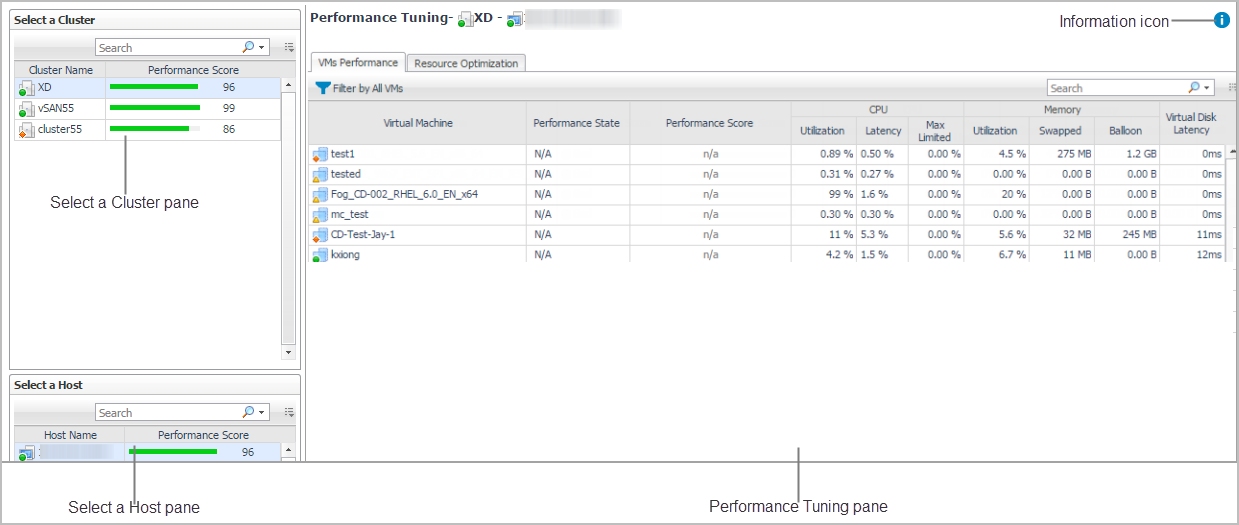

Performance Tuning Tab

The Performance Tuning view helps to identify and resolve performance issues in your virtual environment by analyzing contention as well as the resources assigned to a virtual machine and then automating the recommended changes. It includes the following elements:

Select a Cluster pane: Lists available clusters in the selected virtual center or datacenter, and provides the capability to search the cluster as needed.
Select a Host pane: Lists available hosts in the selected cluster, and provides the capability to search the host as needed.
Performance Tuning pane: Consists of two tabs:

To access the Performance Tuning view:

Select a Cluster pane

The Select a Cluter pane on the left top of the Capacity Director dashboard offers the following menus:

Lists the name and the performance score of all clusters that are available in the selected virtual center or datacenter.

Cluster Name. The name of the cluster.
Performance Score. The performance score of the cluster.

Select a Host pane

The Select a Host pane on the left bottom of the Capacity Director dashboard offers the following menus:

Lists the name and the performance score of all hosts that are available in the selected cluster.

Host Name. The name of the host.
Performance Score. The performance score of the host.
