Foglight Capacity Director 6.0.0 - User Guide

Using Foglight Capacity Director Lite Getting Started Tab Current Capacity Tab Resource Utilization Tab Scenario Modeler Tab Server Purchase Tab Report Tab Performance Tuning Tab Changes and DRS Rules Tab Infrastructure Organizations Tab

Hosts and Workload Report

To print a clusters report from the Resource Utilization view:
1
Click Reports on the top right of the Foglight dashboard.
2
Click Resource Utilization - Hosts and Workload Report from the context menu.
The Resource Utilization - Hosts and Workload Report wizard appears.
3
In the Set Input Parameters page, supply the values for the report input parameters, and click Next.
4
In the Set Properties page, select the report properties:
•
Name: Type the name of this new report.
•
Output Format: Select an output format from the drop-down list. The output format includes the following options: PDF (default option), Excel, and XML.
•
Email Recipients: Type the email address.
•
Schedule This Report: Select the check box to enable this new report.
•
Retain: Type the number of days for which this report is retained.
5
Click Next.
6
Select the scheduled date for executing this report, as needed, then click Next. This configuration is only available after selecting the Schedule This Report option.
7
Review the Summary page to ensure that the provided information are correct, and click Finish.
8
In the File Download dialog box that appears, choose one of the following options:
•
Open the report for viewing.
a
Click Open.
b
The report is opened automatically for viewing.
•
Download the report to a location of your choice.
a
Click Save.
b
In the dialog box that appears, select a location for saving the file, then click Save.
The report is saved as the output format specified in Step 4 to the selected location





Performance Tuning Tab

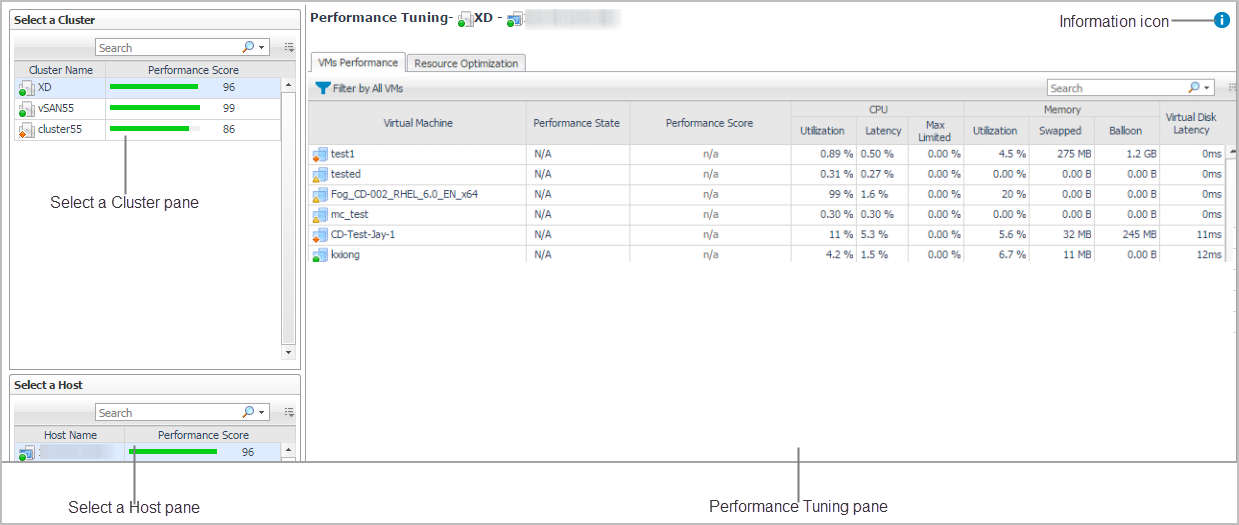

The Performance Tuning view helps to identify and resolve performance issues in your virtual environment by analyzing contention as well as the resources assigned to a virtual machine and then automating the recommended changes. It includes the following elements:

•
Select a Cluster pane: Lists available clusters in the selected virtual center or datacenter, and provides the capability to search the cluster as needed.
•
Select a Host pane: Lists available hosts in the selected cluster, and provides the capability to search the host as needed.
•
Information icon: Click this icon to pop up the dialog box with details explaining what is Performance Tuning.
•
Performance Tuning pane: Consists of two tabs:
•
VMs Performance: Design to show the virtual machines on the given host or all hosts in a cluster to quickly highlight the worst performing. This data is then used to drive the recommendations in the Resource Optimization tab.
•
Resource Optimization: Provides three automated recommendation engines (Aggressive, Moderate, and Top 10) built to move virtual machines between hosts to reduce the contention and improve the performance.

To access the Performance Tuning view:

1
On the navigation panel, under Dashboards, click Capacity Director.
The Capacity Director dashboard opens.
2
Use the Group selector located at the top of the dashboard to select the virtual environment that you want to monitor.
3
On the Menu bar, click the Performance Tuning tab.
The Performance Tuning view appears at the bottom of the Capacity Director dashboard.

Select a Cluster pane

The Select a Cluter pane on the left top of the Capacity Director dashboard offers the following menus:

•
Search menu: Provides the search functionality that helps you easily find the cluster, as needed.
•
Select a Cluster table: Lists all clusters that are available in the selected virtual center or datacenter.
Description

Lists the name and the performance score of all clusters that are available in the selected virtual center or datacenter.

Data displayed
•
Cluster Name. The name of the cluster.

•
Performance Score. The performance score of the cluster.

Select a Host pane

The Select a Host pane on the left bottom of the Capacity Director dashboard offers the following menus:

•
Search menu: Provides the search functionality that helps you easily find the host, as needed.
•
Select a Host table: Lists all hosts that are available in the selected cluster.
Description

Lists the name and the performance score of all hosts that are available in the selected cluster.

Data displayed
•
Host Name. The name of the host.

•
Performance Score. The performance score of the host.
