Identifying session identifiers in URL paths

Some applications use URL rewriting to embed a session identifier in the URL path. For example, the following URL contains the session identifier value 123A456789B012:
•
http://www.quest.com/this-topic/123A456789B012/that-action.do
If one of the applications you want to track uses URL rewriting, you need to define a session identifier of type URL Path and specify a regular expression to match the session identifier portion of the URL path. For more information, see Defining session identifiers.
Example: Matching and extracting session identifiers
Consider the following URLs:
•
    www.example.com/products/sid=ABC/content/page1.html
•
    www.example.com/products/sid=XYZ/content/page2.html
The session identifier variable is sid, and it is embedded after products/ and before /content. In the Regular Expression box, we use the following regular expression as the pattern to match:
    .*/sid=(.*)/content.*
The parentheses show the part of the path to be used as the session identifier. In the example URLS, the session identifiers are ABC and XYZ.

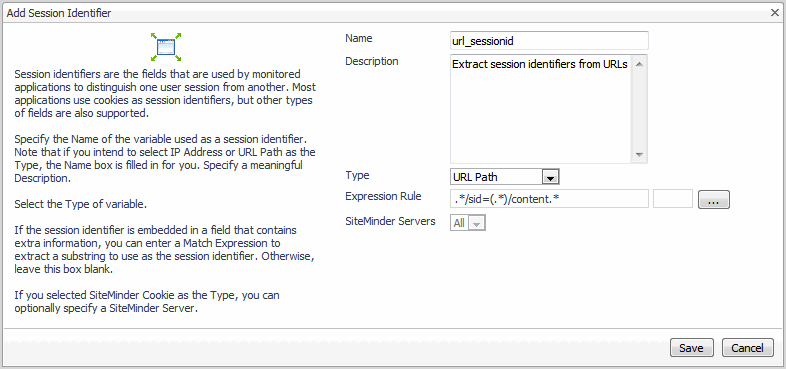

Figure 17. Adding session identifier example

Defining session identifiers

When adding or editing a session identifier variable, you can set the following options.

Table 11. Defining session identifiers
Option
Setting the Option
Name
Specify a unique name for the session identifier.
NOTE: When Type=URL Path, the value in the Name field is not used by the Archiver. However, you should specify a name for administration purposes.
Description
Optional—provide more information about the session identifier variable. For example, you can include the name of the application that uses the variable.
Type
Select the type of session identifier variable you are defining. For example, select Cookie if session identifiers are located in cookies.
Regular Expression
When Type=URL Path, specify the pattern for the embedded session identifiers as a regular expression. To test your expression, click to open the Extraction Rule dialog box. For more information, see Defining extraction expressions. For an example, see Identifying session identifiers in URL paths.

Prioritizing session identifiers

After you finish adding your session identifiers, you should arrange them in priority order from top to bottom in the table. If a hit contains more than one configured session identifier—for example, some sites use different tools to develop different sections of the site which may result in multiple identifiers—the order of the session identifier variables in the table tells the system which session identifier to use to track the current session. You can change the location of a variable within the table by clicking its Up or Down icon.
Figure 18. Session Identifiers view

Sessionizing policies—Associating user names with user sessions

Many web applications prompt end users to log into the application using a user name and password. When the user enters the login credentials on the web page, the application transmits the user name to the application server, typically in a form (or POST) parameter, but potentially in an XML variable, cookie, or HTTP header. Foglight can extract the user name from the web traffic and associate the user name with the user session.

*
NOTE: Username rules do not affect how user sessions are identified; they only affect how sessions are labeled in the Session Explorer, search results, and reports.
To include user names in your session details, navigate to APM > Configure > Traffic Capture > Sessionizing Policies, and expand Username Rules.

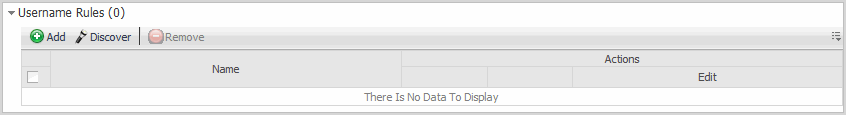

Figure 19. Username Rules view
In the Username Rules view, you can perform the following tasks:
•
Discovering user names
•
Defining username rules
