Message Processing tab

The Message Processing tab shows tables for the number of pending messages and the number of incoming queue threads for a selected Agent Manager instance.

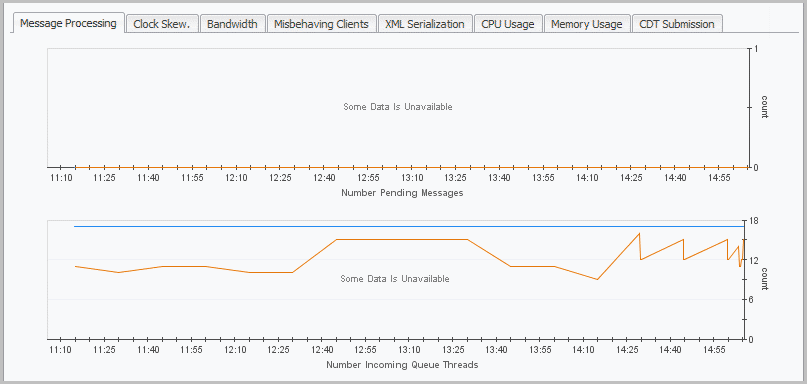

Figure 6. Message Processing tab

Clock Skew tab

The Clock Skew tab contains a graph that displays the upstream difference per second for a selected Agent Manager instance.

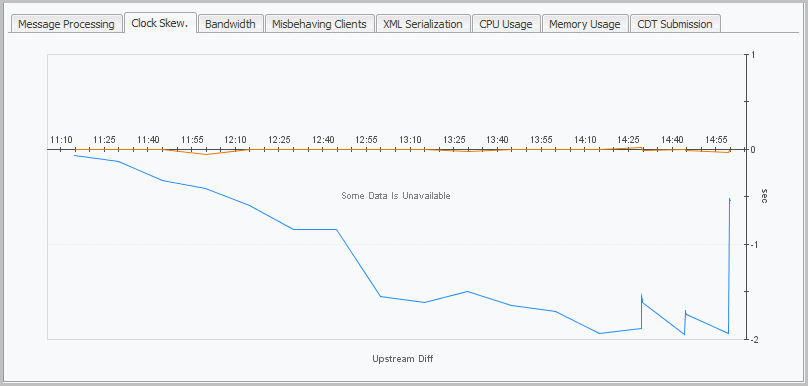

Figure 7. Clock Skew tab

Bandwidth tab

The Bandwidth tab displays metrics for bandwidth usage samples taken at prescribed intervals per second for a selected Agent Manager instance, including the bytes in, bytes out, and real request time for a selected servlet. The bandwidth statistics reflect the bandwidth (bytes per second) used by the Agent Manager instance data over a specific time interval.

Figure 8. Bandwidth tab

Misbehaving Clients tab

The Misbehaving Clients tab displays the disconnections per count for a selected Agent Manager instance.

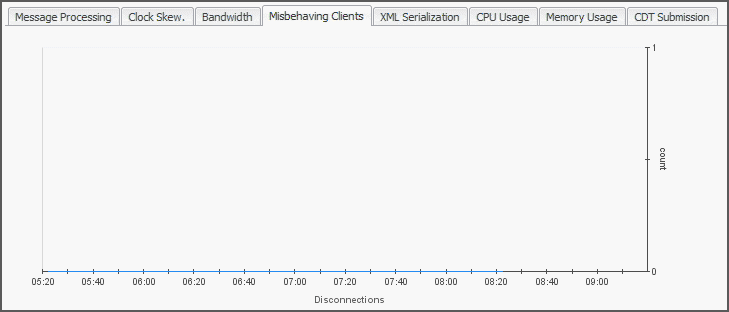

Figure 9. Misbehaving Clients tab
